Kind: Terminator
Class: Support
Type: Other System
Other Credentials Management Systems
Overview
Representing another Cooperative ITS Credentials Management System (CCMS), 'Other Credentials Management Systems' is intended to provide a source and destination for information exchange between peer credentials management systems. It supports modeling of projects or regions that include multiple interconnected CCMS that manage credentials distribution and management in the connected vehicle environment.
This physical object does not have any functionality defined in ARC-IT, as it exists outside the system functional boundary.
This physical object is included in the following Service Packages:
Triples
Security
This physical object has the following security levels for the associated service packages.
Physical Object Security | ||||
---|---|---|---|---|
Security Class | Confidentiality | Integrity | Availability | Service Package |
Class 5 | High | High | High | Device Certification and Enrollment |
Class 5 | High | High | High | Security and Credentials Management |

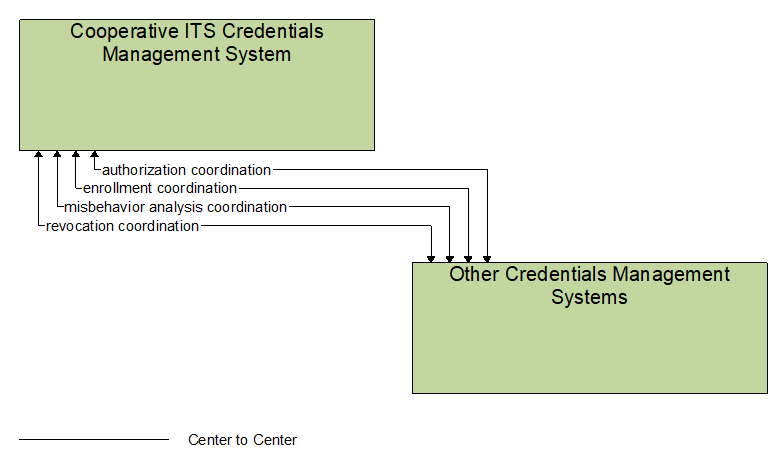

Interfaces Diagram
Standards
Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
