Kind: Terminator
Class: Support
Type: Other System
Other Archived Data Systems
Overview
'Other Archived Data Systems' represents distributed archived data systems whose data can be accessed and shared with a local archive. The interface with the Archived Data System allows data from multiple archives to be accessed on demand or imported and consolidated into a single repository.
This physical object does not have any functionality defined in ARC-IT, as it exists outside the system functional boundary.
This physical object is included in the following Service Packages:
Triples
Source | Flow | Destination |
---|---|---|
Archived Data System | archive coordination | Other Archived Data Systems |
Other Archived Data Systems | archive coordination | Archived Data System |
Security
This physical object has the following security levels for the associated service packages.
Physical Object Security | ||||
---|---|---|---|---|
Security Class | Confidentiality | Integrity | Availability | Service Package |
Class 5 | Moderate | High | High | ITS Data Warehouse |
Class 5 | Moderate | High | High | Performance Monitoring |

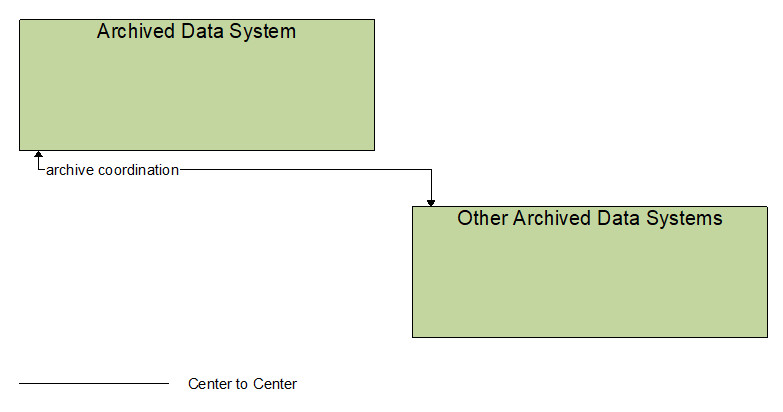

Interfaces Diagram
Standards
Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
