Other Maint and Constr Mgmt Centers

Overview
Triples
Security
Interfaces Diagram
Standards

Overview

Representing another Maintenance and Construction Management Center, 'Other Maint and Constr Mgmt Centers' is intended to provide a source and destination for ITS information flows between maintenance and construction management functions. It enables maintenance and construction operations to be coordinated across jurisdictions or between public and private sectors.

This physical object does not have any functionality defined in ARC-IT, as it exists outside the system functional boundary.

This physical object is included in the following Service Packages:

Triples

Source	Flow	Destination
Maint and Constr Management Center	maint and constr resource coordination	Other Maint and Constr Mgmt Centers
Maint and Constr Management Center	road weather information	Other Maint and Constr Mgmt Centers
Maint and Constr Management Center	roadway maintenance status	Other Maint and Constr Mgmt Centers
Maint and Constr Management Center	work plan coordination	Other Maint and Constr Mgmt Centers
Maint and Constr Management Center	work zone information	Other Maint and Constr Mgmt Centers
Other Maint and Constr Mgmt Centers	maint and constr resource coordination	Maint and Constr Management Center
Other Maint and Constr Mgmt Centers	road weather information	Maint and Constr Management Center
Other Maint and Constr Mgmt Centers	roadway maintenance status	Maint and Constr Management Center
Other Maint and Constr Mgmt Centers	work plan coordination	Maint and Constr Management Center
Other Maint and Constr Mgmt Centers	work zone information	Maint and Constr Management Center

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class	Confidentiality	Integrity	Availability	Service Package
Class 2	Moderate	Moderate	Moderate	Disaster Response and Recovery
Class 2	Moderate	Moderate	Moderate	Traffic Incident Management System
Class 1	Low	Moderate	Low	Maintenance and Construction Activity Coordination
Class 1	Low	Moderate	Low	Weather Information Processing and Distribution
Class 1	Low	Moderate	Moderate	Winter Maintenance
Class 1	Low	Moderate	Moderate	Work Zone Management

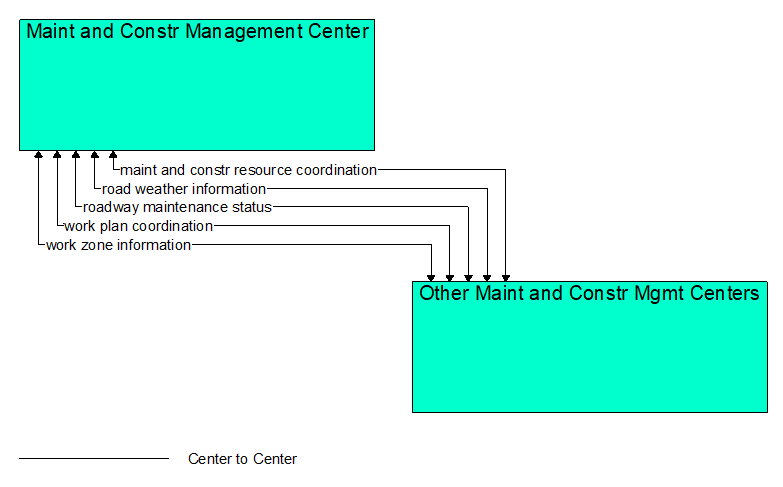

Interfaces Diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
