Kind: Terminator
Class: Center
Type: Other System
Other Transit Management Centers
Overview
Representing another transit operations center, 'Other Transit Management Centers' is intended to provide a source and destination for information flows between peer transit management centers. It enables transit management activities to be coordinated across geographic boundaries or jurisdictions.
This physical object does not have any functionality defined in ARC-IT, as it exists outside the system functional boundary.
This physical object is included in the following Service Packages:
Triples
Security
This physical object has the following security levels for the associated service packages.
Physical Object Security | ||||
---|---|---|---|---|
Security Class | Confidentiality | Integrity | Availability | Service Package |
Class 2 | Moderate | Moderate | Moderate | Disaster Response and Recovery |
Class 2 | Moderate | Moderate | Moderate | Evacuation and Reentry Management |
Class 2 | Moderate | Moderate | Moderate | Integrated Decision Support and Demand Management |
Class 2 | Moderate | Moderate | Moderate | Multi-modal Coordination |
Class 2 | Moderate | Moderate | Moderate | Transit Connection Protection |
Class 1 | Low | Moderate | Moderate | Transit Fare Collection Management |
Class 1 | Low | Moderate | Moderate | Transit Traveler Information |

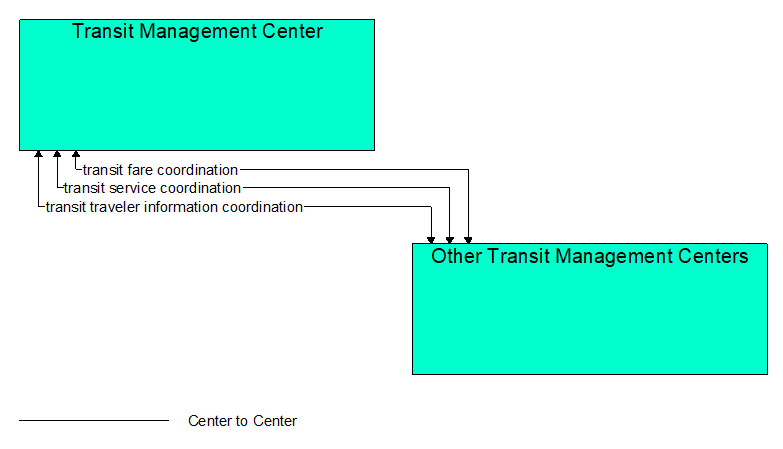

Interfaces Diagram
Standards
Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
