Kind: Terminator
Class: Center
Type: Other System
Other Traffic Management Centers
Overview
Representing another Traffic Management Center, 'Other Traffic Management Centers' is intended to provide a source and destination for information exchange between peer (e.g. inter-regional) traffic management functions. It enables traffic management activities to be coordinated across different jurisdictional areas.
This physical object does not have any functionality defined in ARC-IT, as it exists outside the system functional boundary.
This physical object is included in the following Service Packages:
- PS12: Disaster Response and Recovery
- PS13: Evacuation and Reentry Management
- ST07: Eco-Lanes Management
- TM07: Regional Traffic Management
- TM08: Traffic Incident Management System
- TM09: Integrated Decision Support and Demand Management
- TM22: Dynamic Lane Management and Shoulder Use
- TM24: Tunnel Management
- VS08: Queue Warning
Triples
Security
This physical object has the following security levels for the associated service packages.
Physical Object Security | ||||
---|---|---|---|---|
Security Class | Confidentiality | Integrity | Availability | Service Package |
Class 5 | Moderate | High | High | Disaster Response and Recovery |
Class 5 | Moderate | High | High | Evacuation and Reentry Management |
Class 4 | High | High | Moderate | Integrated Decision Support and Demand Management |
Class 4 | High | High | Moderate | Regional Traffic Management |
Class 4 | High | High | Moderate | Traffic Incident Management System |
Class 3 | Moderate | High | Moderate | Dynamic Lane Management and Shoulder Use |
Class 1 | Low | Moderate | Moderate | Eco-Lanes Management |
Class 1 | Low | Moderate | Moderate | Queue Warning |
Class 1 | Low | Moderate | Moderate | Tunnel Management |

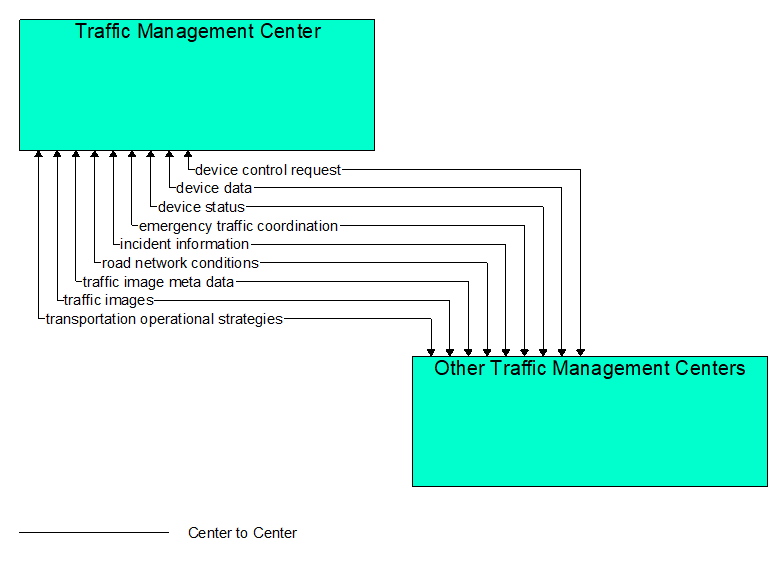

Interfaces Diagram
Standards
Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
