PT06: Transit Fleet Management

This service package supports automatic transit maintenance scheduling and monitoring. On-board condition sensors monitor system status and transmit critical status information to the Transit Management Center. The Transit Management Center processes this data and schedules preventative and corrective maintenance. The service package also supports the day to day management of the transit fleet inventory, including the assignment of specific transit vehicles to blocks and the assignment of transit vehicle operators to runs.

Relevant Regions: Australia, Canada, European Union, and United States

Enterprise
Functional
Physical
Goals and Objectives
Needs and Requirements
Sources
Security
Standards
System Requirements

Enterprise

Development Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Basic Transit Vehicle Developer	Basic Transit Vehicle	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Basic Transit Vehicle Developer	Transit Vehicle OBE Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Transit Management Center Developer	Transit Management Center	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Transit Management Center Developer	Transit Vehicle OBE Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Transit Vehicle OBE Developer	Transit Management Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Transit Vehicle OBE Developer	Transit Vehicle OBE	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.

Installation Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Basic Transit Vehicle Installer	Basic Transit Vehicle	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Basic Transit Vehicle Owner	Basic Transit Vehicle Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Basic Transit Vehicle Owner	Basic Transit Vehicle Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Transit Management Center Installer	Transit Management Center	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Transit Management Center Owner	Transit Management Center Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Transit Management Center Owner	Transit Management Center Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Transit Vehicle OBE Installer	Transit Vehicle OBE	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Transit Vehicle OBE Owner	Transit Vehicle OBE Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Transit Vehicle OBE Owner	Transit Vehicle OBE Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.

Operations and Maintenance Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Basic Transit Vehicle Maintainer	Basic Transit Vehicle	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the 'maintains' role typically is delegated authority by the entity with the "Owns" or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Basic Transit Vehicle Manager	Basic Transit Vehicle	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Basic Transit Vehicle Manager	Transit Vehicle Operator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Basic Transit Vehicle Owner	Basic Transit Vehicle Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Basic Transit Vehicle Owner	Basic Transit Vehicle Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Basic Transit Vehicle Owner	Transit Vehicle OBE Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Basic Transit Vehicle Owner	Transit Vehicle OBE Owner	Expectation of Data Provision (hide) An expectation where one party believes another party will provide data on a regular and recurring basis, and that that data will be useful to the receiver in the context of the receiver's application. This thus includes some expectation of data fields, timeliness, quality, precision and similar qualities of data.
Basic Transit Vehicle Owner	Transit Vehicle OBE User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Basic Transit Vehicle Owner	Transit Vehicle Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Basic Transit Vehicle Owner	Transit Vehicle Operator	Vehicle Operating Agreement (hide) An agreement whereupon the controller of a vehicle grants another entity permission and rights to operate the vehicle.
Basic Transit Vehicle Supplier	Basic Transit Vehicle Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Transit Management Center Maintainer	Transit Management Center	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the 'maintains' role typically is delegated authority by the entity with the "Owns" or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Transit Management Center Manager	Transit Management Center	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Transit Management Center Manager	Transit Operations Personnel	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Transit Management Center Owner	Transit Management Center Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Transit Management Center Owner	Transit Management Center Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Transit Management Center Owner	Transit Vehicle OBE Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Transit Management Center Owner	Transit Vehicle OBE Owner	Information Provision Agreement (hide) An agreement where one party agrees to provide information to another party. This is a unidirectional agreement.
Transit Management Center Owner	Transit Vehicle OBE User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Transit Management Center Owner	Transit Vehicle Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Transit Management Center Supplier	Transit Management Center Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Transit Operations Personnel	Transit Management Center	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Transit Vehicle OBE Maintainer	Transit Vehicle OBE	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the 'maintains' role typically is delegated authority by the entity with the "Owns" or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Transit Vehicle OBE Manager	Transit Vehicle OBE	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Transit Vehicle OBE Manager	Transit Vehicle Operator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Transit Vehicle OBE Owner	Transit Management Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Transit Vehicle OBE Owner	Transit Management Center Owner	Expectation of Data Provision (hide) An expectation where one party believes another party will provide data on a regular and recurring basis, and that that data will be useful to the receiver in the context of the receiver's application. This thus includes some expectation of data fields, timeliness, quality, precision and similar qualities of data.
Transit Vehicle OBE Owner	Transit Management Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Transit Vehicle OBE Owner	Transit Operations Personnel	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Transit Vehicle OBE Owner	Transit Operations Personnel	Vehicle Operating Agreement (hide) An agreement whereupon the controller of a vehicle grants another entity permission and rights to operate the vehicle.
Transit Vehicle OBE Owner	Transit Vehicle OBE Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Transit Vehicle OBE Owner	Transit Vehicle OBE Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Transit Vehicle OBE Supplier	Transit Vehicle OBE Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Transit Vehicle Operator	Basic Transit Vehicle	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Transit Vehicle Operator	Transit Vehicle OBE	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.

Functional

This service package includes the following Functional View PSpecs:

Physical Object	Functional Object	PSpec Number	PSpec Name
Transit Management Center	Transit Center Operator Assignment	4.5.1	Assess Transit Vehicle Operator Performance
		4.5.2	Assess Transit Vehicle Operator Availability
		4.5.3	Access Transit Vehicle Operator Cost Effectiveness
		4.5.4	Assess Transit Vehicle Operator Eligibility
		4.5.5	Generate Transit Vehicle Operator Route Assignments
		4.5.6	Report Transit Vehicle Operator Information
		4.5.7	Provide Transit Vehicle Operator Information Store Interface
	Transit Center Vehicle Assignment	4.1.5.1	Manage Transit Vehicle Operations
	Transit Center Vehicle Assignment	4.2.4	Generate Transit Vehicle Schedule Assignments
	Transit Garage Maintenance	4.1.4	Collect and Process Transit Vehicle Data
		4.3.1	Monitor Transit Vehicle Condition
		4.3.2	Generate Transit Vehicle Maintenance Schedules
		4.3.3	Generate Technician Work Assignments
		4.3.4	Monitor And Verify Maintenance Activity
		4.3.5	Report Transit Vehicle Information
		4.3.6	Manage Transit Vehicle Inventory
		4.3.7	Manage Transit Vehicle Operations Data Store
Transit Vehicle OBE	Transit Vehicle On-Board Maintenance	4.1.1	Process On-Board Systems Data
	Transit Vehicle Schedule Management	4.1.1	Process On-Board Systems Data
		4.1.2	Determine Transit Vehicle Service Status
		4.1.3	Provide Transit Vehicle Location Data

Physical

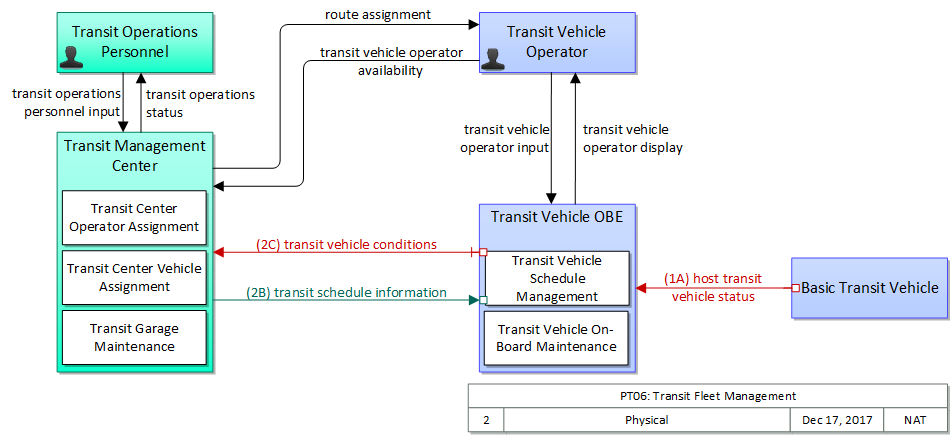

The physical diagram can be viewed in SVG or PNG format and the current format is SVG.
SVG Diagram
PNG Diagram

Display Legend in SVG or PNG

Includes Physical Objects:

Physical Object	Class	Description
Basic Transit Vehicle	Vehicle	The 'Basic Transit Vehicle' represents the transit vehicle that hosts the on-board equipment that provides ITS functions. It includes a specialized and extended databus that is subject to different vehicle databus standards and hosts a broad range of components that are unique to a transit vehicle including the farebox and associated electronics, passenger counters, and transit security systems. The Transit Vehicle may represent a bus, paratransit vehicle, light rail vehicle, or other vehicle designed to carry passengers.
Transit Management Center	Center	The 'Transit Management Center' manages transit vehicle fleets and coordinates with other modes and transportation services. It provides operations, maintenance, customer information, planning and management functions for the transit property. It spans distinct central dispatch and garage management systems and supports the spectrum of fixed route, flexible route, paratransit services, transit rail, and bus rapid transit (BRT) service. The physical object's interfaces support communication between transit departments and with other operating entities such as emergency response services and traffic management systems.
Transit Operations Personnel	Center	'Transit Operations Personnel' represents the people that are responsible for fleet management, maintenance operations, and scheduling activities of the transit system. These different roles represent a variety of individuals in the transit industry. Within the transit industry the person responsible for fleet management is known by many names: Street Supervisor, Starter, Dispatcher, Supervisor, Traffic Controller, Transportation Coordinator. This person actively monitors, controls, and modifies the transit fleet routes and schedules on a day to day basis (dynamic scheduling). The modifications will take account of abnormal situations such as vehicle breakdown, vehicle delay, detours around work zones or incidents (detour management, connection protection, and service restoration), and other causes of route or schedule deviations. Transit operations personnel are also responsible for demand responsive transit operation and for managing emergency situations within the transit network such as silent alarms on board transit vehicles, or the remote disabling of the vehicle. In addition the Transit Operations Personnel may be responsible for assigning vehicle operators to routes, checking vehicle operators in and out, and managing transit stop issues. This object also represents the personnel in the transit garage that are responsible for maintenance of the transit fleets, including monitoring vehicle status, matching vehicles with operators, and maintenance checking of transit vehicles. Finally, it represents the people responsible for planning, development, and management of transit routes and schedules.
Transit Vehicle OBE	Vehicle	The 'Transit Vehicle On-Board Equipment' (OBE) resides in a transit vehicle and provides the sensory, processing, storage, and communications functions necessary to support safe and efficient movement of passengers. The types of transit vehicles containing this physical object include buses, paratransit vehicles, light rail vehicles, other vehicles designed to carry passengers, and supervisory vehicles. It collects ridership levels and supports electronic fare collection. It supports a traffic signal prioritization function that communicates with the roadside physical object to improve on-schedule performance. Automated vehicle location enhances the information available to the transit operator enabling more efficient operations. On-board sensors support transit vehicle maintenance. The physical object supports on-board security and safety monitoring. This monitoring includes transit user or vehicle operator activated alarms (silent or audible), as well as surveillance and sensor equipment. The surveillance equipment includes video (e.g. CCTV cameras), audio systems and/or event recorder systems. It also furnishes travelers with real-time travel information, continuously updated schedules, transfer options, routes, and fares. A separate 'Vehicle OBE' physical object supports the general vehicle safety and driver information capabilities that apply to all vehicles, including transit vehicles. The Transit Vehicle OBE supplements these general capabilities with capabilities that are specific to transit vehicles.
Transit Vehicle Operator	Vehicle	The 'Transit Vehicle Operator' represents the person that receives and provides additional information that is specific to operating the ITS functions in all types of transit vehicles. The information received by the operator would include status of on-board systems. Additional information received depends upon the type of transit vehicle. In the case of fixed route transit vehicles, the Transit Vehicle Operator would receive operator instructions that might include actions to take to correct schedule deviations. In the case of flexible fixed routes and demand response routes the information would also include dynamic routing or passenger pickup information.

Includes Functional Objects:

Functional Object	Description	Physical Object
Transit Center Operator Assignment	'Transit Center Operator Assignment' automates and supports the assignment of transit vehicle operators to runs. It assigns operators to runs in a fair manner while minimizing labor and overtime services, considering operator preferences and qualifications, and automatically tracking and validating the number of work hours performed by each individual operator. It also provides an exception handling process for the operator assignment function to generate supplemental operator assignments when required by changes during the operating day.	Transit Management Center
Transit Center Vehicle Assignment	'Transit Center Vehicle Assignment' assigns individual transit vehicles to vehicle blocks and downloads this information to the transit vehicle. It also provides an exception handling process for the vehicle assignment function to generate new, supplemental vehicle assignments when required by changes during the operating day. It provides an inventory management function for the transit facility which stores functional attributes about each of the vehicles owned by the transit operator. These attributes permit the planning and assignment functions to match vehicles with routes based on suitability for the types of service required by the particular routes.	Transit Management Center
Transit Garage Maintenance	'Transit Garage Maintenance' provides advanced maintenance functions for the transit property. It collects operational and maintenance data from transit vehicles, manages vehicle service histories, and monitors operators and vehicles. It collects vehicle mileage data and uses it to automatically generate preventative maintenance schedules for each vehicle by utilizing vehicle tracking data. In addition, it provides information to service personnel to support maintenance activities and records and verifies that maintenance work was performed.	Transit Management Center
Transit Vehicle On-Board Maintenance	'Transit Vehicle On-Board Maintenance' collects and processes transit vehicle maintenance data on-board the vehicle, including mileage and vehicle operating conditions. This maintenance information is provided to the management center and used to schedule future vehicle maintenance and repair.	Transit Vehicle OBE
Transit Vehicle Schedule Management	'Transit Vehicle Schedule Management' monitors schedule performance and identifies corrective actions when a deviation is detected. It provides two-way communication between the transit vehicle and center, enabling the center to communicate with the vehicle operator and monitor on-board systems.	Transit Vehicle OBE

Includes Information Flows:

Information Flow	Description
host transit vehicle status	Information provided to the ITS on-board equipment from other systems on the Transit Vehicle Platform.
route assignment	Route assignment information for transit vehicle operator.
transit operations personnel input	User input from transit operations personnel including instructions governing service availability, schedules, emergency response plans, transit personnel assignments, transit maintenance requirements, and other inputs that establish general system operating requirements and procedures.
transit operations status	Presentation of information to transit operations personnel including accumulated schedule and fare information, ridership and on-time performance information, emergency response plans, transit personnel information, maintenance records, and other information intended to support overall planning and management of a transit property.
transit schedule information	Current and projected transit schedule information used to initialize the transit vehicle with a vehicle assignment, monitor schedule performance, and develop corrective actions on-board.
transit vehicle conditions	Operating conditions of transit vehicle (e.g., engine running, oil pressure, fuel level and usage). It includes status of other on-board systems including user displays, passenger counters, and security systems. This overall status information is also collected from unused (out of service) vehicles.
transit vehicle operator availability	Transit vehicle operator availability data that can be used to develop vehicle operator assignments and detailed operations schedules.
transit vehicle operator display	Visual, audible, and tactile outputs to the transit vehicle operator including vehicle surveillance information, alarm information, vehicle system status, information from the operations center, and information indicating the status of all other on-board ITS services.
transit vehicle operator input	Transit vehicle operator inputs to on-board ITS equipment, including tactile and verbal inputs. Includes authentication information, on-board system control, emergency requests, and fare transaction data.

Goals and Objectives

Associated Planning Factors and Goals

Planning Factor	Goal
H. Emphasize the preservation of the existing transportation system;	Maintain infrastructure asset system

Associated Objective Categories

Objective Category
Preservation: Transit Maintenance

Associated Objectives and Performance Measures

Objective	Performance Measure
Enhance garage operations efficiency	Number of fleet vehicles with maintenance diagnostic equipment
Enhance garage operations efficiency	Number of vehicles operating under computer-aided dispatch.
Increase the average number of miles between service calls for transit service in the region to X miles	Average number of transit miles per service call

Since the mapping between objectives and service packages is not always straight-forward and often situation-dependent, these mappings should only be used as a starting point. Users should do their own analysis to identify the best service packages for their region.

Needs and Requirements

Need		Functional Object	Requirement
01	Transit Operations needs to able to remotely monitor transit vehicle operating conditions in order to determine if maintenance of the vehicle is needed.	Transit Garage Maintenance	01	The center shall collect operational and maintenance data from transit vehicles.
		Transit Garage Maintenance	02	The center shall monitor the condition of a transit vehicle to analyze brake, drive train, sensors, fuel, steering, tire, processor, communications equipment, and transit vehicle mileage to identify mileage based maintenance, out-of-specification or imminent failure conditions.
		Transit Vehicle On-Board Maintenance	01	The transit vehicle shall collect and process vehicle mileage data available to sensors on-board.
			02	The transit vehicle shall collect and process the transit vehicle's operating conditions such as engine temperature, oil pressure, brake wear, internal lighting, environmental controls, etc.
			03	The transit vehicle shall transmit vehicle maintenance data to the center to be used for scheduling future vehicle maintenance.
02	Transit Operations needs to be able to perform maintenance scheduling of transit vehicles including real time requests for actions by the vehicle operator.	Transit Garage Maintenance	03	The center shall generate transit vehicle maintenance schedules that identify the maintenance or repair to be performed and when the work is to be done.
			04	The center shall generate transit vehicle availability listings, current and forecast, to support transit vehicle assignment planning based, in part, on the transit vehicle maintenance schedule.
			05	The center shall assign technicians to a transit vehicle maintenance schedule, based upon such factors as personnel eligibility, work assignments, preferences and seniority.
			06	The center shall verify that the transit vehicle maintenance activities were performed correctly, using the transit vehicle's status, the maintenance personnel's work assignment, and the transit maintenance schedules.
			07	The center shall generate a time-stamped maintenance log of all maintenance activities performed on a transit vehicle.
			08	The center shall provide transit operations personnel with the capability to update transit vehicle maintenance information and receive reports on all transit vehicle operations data.
		Transit Vehicle Schedule Management	01	The transit vehicle shall receive a vehicle assignment including transit route information, transit service instructions, traffic information, road conditions, and other information for the operator.
03	Transit Operations needs to be able to assign specific vehicles to blocks in order to perform vehicle allocation.	Transit Center Vehicle Assignment	01	The center shall assign individual transit vehicles to transit blocks.
			02	The center shall download vehicle assignments to the transit vehicle prior to the start of the day's operations.
			03	The center shall provide an exception handling process for the vehicle assignment function. This process shall generate new supplemental vehicle assignments as required due to change events which occur during the operating day.
			04	The center shall provide an inventory management function for the transit facility that stores functional attributes about each vehicle owned by the transit operator. The functional attributes permit the planning and assignment functions to match vehicles with routes based on suitability for the types of service required by the particular routes.
			05	The center shall generate transit vehicle availability listings, current and forecast, to support transit vehicle assignment planning.
			06	The center shall provide transit operations personnel with the capability to update transit vehicle assignments and receive reports on transit vehicle inventory status.
04	Transit Operations needs to be able to assign transit operators to runs.	Transit Center Operator Assignment	01	The center shall maintain records of a transit vehicle operator's performance. This may be done utilizing standardized performance evaluation criteria set forth by governmental regulations and transit operating company policies, assessing the transit vehicle operator's driving history, and assessing comments from the transit vehicle operator's supervisor(s) as well as noting any moving violations or accidents, supervisor comments, government regulations, and company policies.
			02	The center shall assess the transit vehicle operator's availability based on previous work assignments, accumulated hours, plus health and vacation commitments.
			03	The center shall assign transit vehicle operators to transit schedules based on their eligibility, route preferences, seniority, and transit vehicle availability.
			04	The center shall provide an interface through which the transit vehicle operator information can be maintained - either from the transit vehicle operator, center personnel, or other functions.
			05	The center shall generate supplemental vehicle operator assignments as required due to change events that occur during the operating day.

Related Sources

Document Name	Version	Publication Date
ITS User Services Document		1/1/2005

Security

In order to participate in this service package, each physical object should meet or exceed the following security levels.

Physical Object Security
Physical Object	Confidentiality	Integrity	Availability	Security Class
Basic Transit Vehicle
Transit Management Center	Moderate	Moderate	Moderate	Class 2
Transit Vehicle OBE	Moderate	Moderate	Moderate	Class 2

In order to participate in this service package, each information flow triple should meet or exceed the following security levels.

Information Flow Security
Source	Destination	Information Flow	Confidentiality	Integrity	Availability
Source	Destination	Information Flow	Basis	Basis	Basis
Basic Transit Vehicle	Transit Vehicle OBE	host transit vehicle status	Moderate	Moderate	Moderate
Basic Transit Vehicle	Transit Vehicle OBE	host transit vehicle status	This can include some sensitive data. However, other data, such as vehicle location and motion will then be broadcast. There also may be proprietary information included in this. DISC THEA believes this to be LOW: "sensor data is not confidential; harm should not come from seeing status."	This is used later on to determine whether a vehicle should request priority at an intersection. If this information is incorrect the vehicle may make false requests. All other flows that use the data from this flow have a MODERATE integrity requirement, therefore, this must also have a MODERATE integrity requirement. DISC: THEA believes this should be HIGH: "sensor data needs to be accurate and should not be tampered with."	This information would need to be available immediately for the application to work.DISC: THEA believes this should be HIGH: "sensor data must be consistently available to feed BSMs broadcast at 10Hz, notifications, etc.."
Transit Management Center	Transit Operations Personnel	transit operations status	Moderate	High	High
Transit Management Center	Transit Operations Personnel	transit operations status	Backoffice operations flows should have minimal protection from casual viewing, as otherwise imposters could gain illicit control or information that should not be generally available.	Backoffice operations flows should generally be correct and available as these are the primary interface between operators and system.	Backoffice operations flows should generally be correct and available as these are the primary interface between operators and system.
Transit Management Center	Transit Vehicle OBE	transit schedule information	Low	Moderate	Moderate
Transit Management Center	Transit Vehicle OBE	transit schedule information	This information is not sensitive. It is generally made public, to support transit system functionality.	This data contains the vehicle assignment. It should be accurate, and not easily modified. However, the bus drivers will have some knowledge about what a reasonable configuration is, and should be able to notice any unusual configurations, such as all busses being a #27.	This information is necessary for the TSP to work correctly. A few missed messages will not have a large impact. The Transit Management Center needs to know if the TV OBE does not receive the message, so it can resend it.
Transit Management Center	Transit Vehicle Operator	route assignment	Moderate	High	High
Transit Management Center	Transit Vehicle Operator	route assignment	Backoffice operations flows should have minimal protection from casual viewing, as otherwise imposters could gain illicit control or information that should not be generally available.	Backoffice operations flows should generally be correct and available as these are the primary interface between operators and system.	Backoffice operations flows should generally be correct and available as these are the primary interface between operators and system.
Transit Operations Personnel	Transit Management Center	transit operations personnel input	Moderate	High	High
Transit Operations Personnel	Transit Management Center	transit operations personnel input	Backoffice operations flows should have minimal protection from casual viewing, as otherwise imposters could gain illicit control or information that should not be generally available.	Backoffice operations flows should generally be correct and available as these are the primary interface between operators and system.	Backoffice operations flows should generally be correct and available as these are the primary interface between operators and system.
Transit Vehicle OBE	Transit Management Center	transit vehicle conditions	Moderate	Moderate	Moderate
Transit Vehicle OBE	Transit Management Center	transit vehicle conditions	Basic diagnostic information should not be sensitive, but any warnings or alarms could be, particularly if they are related to an incident or hostile event related to the vehicle. Such information could be used as part of damage assessment or target identification.	This needs to be accurate to properly schedule maintenance activities (for the basic maintenance data items) and to properly respond to warning indicators. If corrupted or unavailable, there could be a significant repurcussion for the vehicle and by extension, the vehicle operator.	This needs to be accurate to properly schedule maintenance activities (for the basic maintenance data items) and to properly respond to warning indicators. If corrupted or unavailable, there could be a significant repurcussion for the vehicle and by extension, the vehicle operator.
Transit Vehicle OBE	Transit Vehicle Operator	transit vehicle operator display	Low	Moderate	Low
Transit Vehicle OBE	Transit Vehicle Operator	transit vehicle operator display	This should not include any sensitive information. It would be possible for a person standing behind the driver to observe the information transmitted.	Some minimal guarantee of data integrity is necessary for all C-ITS flows. This entire application should not directly affect the drivers driving habits. The operator should still be slowing and stopping at yellow or red lights, along with observing all other driving regulations. DISC: Original V2I analysis classified this as LOW.	Even if the operator is not made aware of the signal preemption, the system should still operate correctly. The operator should be using the traffic lights to influence their decision about whether or not to stop, not the display.
Transit Vehicle Operator	Transit Management Center	transit vehicle operator availability	Moderate	Moderate	Moderate
Transit Vehicle Operator	Transit Management Center	transit vehicle operator availability	PII by definition, including when an operator may be working and when he may not.	Will be used to make operator assignments; if this data is corrupted or not available those assignments may be made in error.	Will be used to make operator assignments; if this data is corrupted or not available those assignments may be made in error or not include those operators for whom the flow was interrupted.
Transit Vehicle Operator	Transit Vehicle OBE	transit vehicle operator input	Low	Moderate	Low
Transit Vehicle Operator	Transit Vehicle OBE	transit vehicle operator input	This information is transmitted through systems on board the Transit Vehicle. Even if the vehicle were compromised and these communications monitored, most of this information is directly observable.	Some minimal guarantee of data integrity is necessary for all C-ITS flows. If this is compromised, it could result in an incorrect signal priority request, which has minimal impact. DISC: Original V2I analysis classified this as LOW.	A delay in reporting this may result in a signal priority request not going through, which has minimal impact.

Standards

Currently, there are no standards associated with the physical objects in this service package. For standards related to interfaces, see the specific information flow triple pages.

System Requirements

System Requirement		Need
001	The system shall maintain records of a transit vehicle operator's performance. This may be done utilizing standardized performance evaluation criteria set forth by governmental regulations and transit operating company policies, assessing the transit vehi	04	Transit Operations needs to be able to assign transit operators to runs.
002	The system shall assess the transit vehicle operator's availability based on previous work assignments, accumulated hours, plus health and vacation commitments.	04	Transit Operations needs to be able to assign transit operators to runs.
003	The system shall assign transit vehicle operators to transit schedules based on their eligibility, route preferences, seniority, and transit vehicle availability.	04	Transit Operations needs to be able to assign transit operators to runs.
004	The system shall provide an interface through which the transit vehicle operator information can be maintained - either from the transit vehicle operator, center personnel, or other functions.	04	Transit Operations needs to be able to assign transit operators to runs.
005	The system shall generate supplemental vehicle operator assignments as required due to change events that occur during the operating day.	04	Transit Operations needs to be able to assign transit operators to runs.
006	The system shall assign individual transit vehicles to transit blocks.	03	Transit Operations needs to be able to assign specific vehicles to blocks in order to perform vehicle allocation.
007	The system shall download vehicle assignments to the transit vehicle prior to the start of the day's operations.	03	Transit Operations needs to be able to assign specific vehicles to blocks in order to perform vehicle allocation.
008	The system shall provide an exception handling process for the vehicle assignment function. This process shall generate new supplemental vehicle assignments as required due to change events which occur during the operating day.	03	Transit Operations needs to be able to assign specific vehicles to blocks in order to perform vehicle allocation.
009	The system shall provide an inventory management function for the transit facility that stores functional attributes about each vehicle owned by the transit operator. The functional attributes permit the planning and assignment functions to match vehicle	03	Transit Operations needs to be able to assign specific vehicles to blocks in order to perform vehicle allocation.
010	The system shall generate transit vehicle availability listings, current and forecast, to support transit vehicle assignment planning.	03	Transit Operations needs to be able to assign specific vehicles to blocks in order to perform vehicle allocation.
011	The system shall provide transit operations personnel with the capability to update transit vehicle assignments and receive reports on transit vehicle inventory status.	03	Transit Operations needs to be able to assign specific vehicles to blocks in order to perform vehicle allocation.
012	The system shall collect operational and maintenance data from transit vehicles.	01	Transit Operations needs to able to remotely monitor transit vehicle operating conditions in order to determine if maintenance of the vehicle is needed.
013	The system shall monitor the condition of a transit vehicle to analyze brake, drive train, sensors, fuel, steering, tire, processor, communications equipment, and transit vehicle mileage to identify mileage based maintenance, out-of-specification or immin	01	Transit Operations needs to able to remotely monitor transit vehicle operating conditions in order to determine if maintenance of the vehicle is needed.
014	The system shall generate transit vehicle maintenance schedules that identify the maintenance or repair to be performed and when the work is to be done.	02	Transit Operations needs to be able to perform maintenance scheduling of transit vehicles including real time requests for actions by the vehicle operator.
015	The system shall generate transit vehicle availability listings, current and forecast, to support transit vehicle assignment planning based, in part, on the transit vehicle maintenance schedule.	02	Transit Operations needs to be able to perform maintenance scheduling of transit vehicles including real time requests for actions by the vehicle operator.
016	The system shall assign technicians to a transit vehicle maintenance schedule, based upon such factors as personnel eligibility, work assignments, preferences and seniority.	02	Transit Operations needs to be able to perform maintenance scheduling of transit vehicles including real time requests for actions by the vehicle operator.
017	The system shall verify that the transit vehicle maintenance activities were performed correctly, using the transit vehicle's status, the maintenance personnel's work assignment, and the transit maintenance schedules.	02	Transit Operations needs to be able to perform maintenance scheduling of transit vehicles including real time requests for actions by the vehicle operator.
018	The system shall generate a time-stamped maintenance log of all maintenance activities performed on a transit vehicle.	02	Transit Operations needs to be able to perform maintenance scheduling of transit vehicles including real time requests for actions by the vehicle operator.
019	The system shall provide transit operations personnel with the capability to update transit vehicle maintenance information and receive reports on all transit vehicle operations data.	02	Transit Operations needs to be able to perform maintenance scheduling of transit vehicles including real time requests for actions by the vehicle operator.
020	The system shall collect and process vehicle mileage data available to sensors on-board.	01	Transit Operations needs to able to remotely monitor transit vehicle operating conditions in order to determine if maintenance of the vehicle is needed.
021	The system shall collect and process the transit vehicle's operating conditions such as engine temperature, oil pressure, brake wear, internal lighting, environmental controls, etc.	01	Transit Operations needs to able to remotely monitor transit vehicle operating conditions in order to determine if maintenance of the vehicle is needed.
022	The system shall transmit vehicle maintenance data to the center to be used for scheduling future vehicle maintenance.	01	Transit Operations needs to able to remotely monitor transit vehicle operating conditions in order to determine if maintenance of the vehicle is needed.
023	The system shall receive a vehicle assignment including transit route information, transit service instructions, traffic information, road conditions, and other information for the operator.	02	Transit Operations needs to be able to perform maintenance scheduling of transit vehicles including real time requests for actions by the vehicle operator.
