Transit Vehicle OBE

Overview

The 'Transit Vehicle On-Board Equipment' (OBE) resides in a transit vehicle and provides the sensory, processing, storage, and communications functions necessary to support safe and efficient movement of passengers. The types of transit vehicles containing this physical object include buses, paratransit vehicles, light rail vehicles, other vehicles designed to carry passengers, and supervisory vehicles. It collects ridership levels and supports electronic fare collection. It supports a traffic signal prioritization function that communicates with the roadside physical object to improve on-schedule performance. Automated vehicle location enhances the information available to the transit operator enabling more efficient operations. On-board sensors support transit vehicle maintenance. The physical object supports on-board security and safety monitoring. This monitoring includes transit user or vehicle operator activated alarms (silent or audible), as well as surveillance and sensor equipment. The surveillance equipment includes video (e.g. CCTV cameras), audio systems and/or event recorder systems. It also furnishes travelers with real-time travel information, continuously updated schedules, transfer options, routes, and fares. A separate 'Vehicle OBE' physical object supports the general vehicle safety and driver information capabilities that apply to all vehicles, including transit vehicles. The Transit Vehicle OBE supplements these general capabilities with capabilities that are specific to transit vehicles.



This physical object is included in the following Service Packages:

Triples

Source Flow Destination
Basic Transit Vehicle host transit vehicle status Transit Vehicle OBE
Connected Vehicle Roadside Equipment signal priority status Transit Vehicle OBE
Connected Vehicle Roadside Equipment transit stop request Transit Vehicle OBE
Emergency Management Center alarm acknowledge Transit Vehicle OBE
Emergency Management Center secure area sensor control Transit Vehicle OBE
Emergency Management Center secure area surveillance control Transit Vehicle OBE
Location and Time Data Source location and time Transit Vehicle OBE
Payment Administration Center authorization response Transit Vehicle OBE
Payment Device actuate secure payment Transit Vehicle OBE
Payment Device payment device information Transit Vehicle OBE
Personal Information Device personal location Transit Vehicle OBE
Personal Information Device transfer request Transit Vehicle OBE
Personal Information Device transit stop request Transit Vehicle OBE
Personal Information Device transit user information Transit Vehicle OBE
Transit Management Center alarm acknowledge Transit Vehicle OBE
Transit Management Center authorization response Transit Vehicle OBE
Transit Management Center connection protection instructions Transit Vehicle OBE
Transit Management Center fare management information Transit Vehicle OBE
Transit Management Center remote vehicle disable Transit Vehicle OBE
Transit Management Center transfer status Transit Vehicle OBE
Transit Management Center transit schedule information Transit Vehicle OBE
Transit Management Center transit stop locations Transit Vehicle OBE
Transit Management Center transit stop request Transit Vehicle OBE
Transit Management Center transit traveler information Transit Vehicle OBE
Transit Management Center transit vehicle operator authentication update Transit Vehicle OBE
Transit Management Center transit vehicle operator information Transit Vehicle OBE
Transit Vehicle OBE collision warning information Basic Transit Vehicle
Transit Vehicle OBE transit vehicle control Basic Transit Vehicle
Transit Vehicle OBE local signal priority request Connected Vehicle Roadside Equipment
Transit Vehicle OBE transit vehicle information Connected Vehicle Roadside Equipment
Transit Vehicle OBE vehicle path prediction Connected Vehicle Roadside Equipment
Transit Vehicle OBE alarm notification Emergency Management Center
Transit Vehicle OBE secure area sensor data Emergency Management Center
Transit Vehicle OBE secure area surveillance data Emergency Management Center
Transit Vehicle OBE local signal priority request ITS Roadway Equipment
Transit Vehicle OBE authorization request Payment Administration Center
Transit Vehicle OBE payment device update Payment Device
Transit Vehicle OBE request for payment Payment Device
Transit Vehicle OBE transfer status Personal Information Device
Transit Vehicle OBE transit vehicle information Personal Information Device
Transit Vehicle OBE vehicle path prediction Personal Information Device
Transit Vehicle OBE alarm notification Transit Management Center
Transit Vehicle OBE authorization request Transit Management Center
Transit Vehicle OBE demand response passenger and use data Transit Management Center
Transit Vehicle OBE fare collection data Transit Management Center
Transit Vehicle OBE transfer request Transit Management Center
Transit Vehicle OBE transit traveler request Transit Management Center
Transit Vehicle OBE transit user information Transit Management Center
Transit Vehicle OBE transit vehicle conditions Transit Management Center
Transit Vehicle OBE transit vehicle emissions Transit Management Center
Transit Vehicle OBE transit vehicle loading data Transit Management Center
Transit Vehicle OBE transit vehicle location data Transit Management Center
Transit Vehicle OBE transit vehicle operator authentication information Transit Management Center
Transit Vehicle OBE transit vehicle schedule performance Transit Management Center
Transit Vehicle OBE transit vehicle operator display Transit Vehicle Operator
Transit Vehicle OBE traveler interface updates Traveler
Transit Vehicle OBE special vehicle alert Vehicle
Transit Vehicle OBE vehicle signage data Vehicle
Transit Vehicle Operator transit vehicle operator input Transit Vehicle OBE
Traveler traveler input Transit Vehicle OBE

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class Confidentiality Integrity Availability Service Package
Class 5 Moderate Moderate High Account-based
Class 5 Moderate Moderate High Account-based with all modes
Class 5 Moderate Moderate High Card-based
Class 5 Moderate Moderate High Integrated Multi-Modal Electronic Payment
Class 5 Moderate Moderate High Pay-as-you-go
Class 5 High High High Transit Fare Collection Management
Class 5 Moderate High High Transit Security
Class 5 Moderate Moderate High Transit Vehicle Tracking
Class 4 High High Moderate Transit Stop Request
Class 3 Not Applicable High Moderate Special Vehicle Alert
Class 3 Low High Moderate Transit Vehicle at Station/Stop Warnings
Class 2 Moderate Moderate Moderate Dynamic Transit Operations
Class 2 Moderate Moderate Moderate Emissions Monitoring
Class 2 Moderate Moderate Moderate Route ID for the Visually Impaired
Class 2 Moderate Moderate Moderate Transit Connection Protection
Class 2 Moderate Moderate Moderate Transit Fleet Management
Class 2 Moderate Moderate Moderate Transit Passenger Counting
Class 2 Moderate Moderate Moderate Transit Pedestrian Indication
Class 2 Moderate Moderate Moderate Transit Traveler Information
Class 1 Low Moderate Moderate Center Control
Class 1 Low Moderate Moderate C-ITS Center Control
Class 1 Low Moderate Moderate C-ITS Field Control
Class 1 Low Moderate Moderate Intermittent Bus Lanes
Class 1 Low Moderate Moderate In-Vehicle Signage
Class 1 Low Moderate Moderate Multi-modal Coordination
Class 1 Low Moderate Moderate Short Range Communications
Class 1 Low Moderate Moderate Traditional Field Control
Class 1 Low Moderate Moderate Traditional TMC Control
Class 1 Low Moderate Moderate Transit Fixed-Route Operations
Class 1 Low Moderate Moderate Transit Signal Priority
Class 1 Low Low Moderate Wide-Area Alert
Class 1 Low Moderate Moderate Wide-Area Wireless



Interfaces Diagram

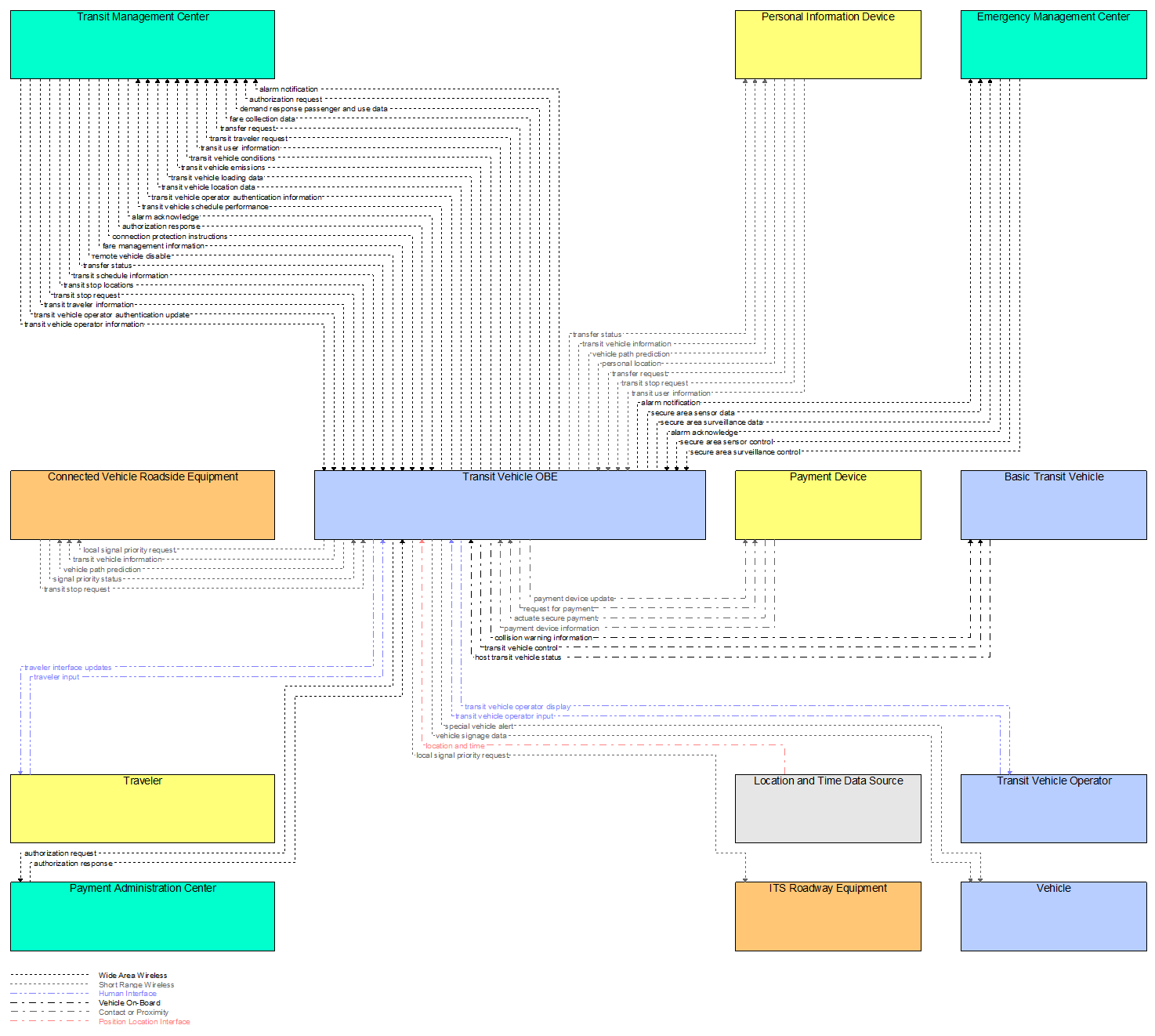

Interfaces diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
