PT01: Transit Vehicle Tracking

This service package monitors current transit vehicle location using an Automated Vehicle Location System. The location data may be used to determine real time schedule adherence and update the transit system's schedule in real-time.

Relevant Regions: Australia, Canada, European Union, and United States

Enterprise
Functional
Physical
Goals and Objectives
Needs and Requirements
Sources
Security
Standards
System Requirements

Enterprise

Development Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Location and Time Data Source Developer	Location and Time Data Source	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Location and Time Data Source Developer	Transit Vehicle OBE Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Traffic Management Center Developer	Traffic Management Center	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Transit Management Center Developer	Traffic Management Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Transit Management Center Developer	Transit Management Center	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Transit Management Center Developer	Transportation Information Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Transit Vehicle OBE Developer	Transit Management Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Transit Vehicle OBE Developer	Transit Vehicle OBE	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Transportation Information Center Developer	Transportation Information Center	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.

Installation Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Location and Time Data Source Installer	Location and Time Data Source	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Location and Time Data Source Owner	Location and Time Data Source Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Location and Time Data Source Owner	Location and Time Data Source Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Traffic Management Center Installer	Traffic Management Center	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Traffic Management Center Owner	Traffic Management Center Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Traffic Management Center Owner	Traffic Management Center Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Transit Management Center Installer	Transit Management Center	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Transit Management Center Owner	Transit Management Center Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Transit Management Center Owner	Transit Management Center Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Transit Vehicle OBE Installer	Transit Vehicle OBE	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Transit Vehicle OBE Owner	Transit Vehicle OBE Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Transit Vehicle OBE Owner	Transit Vehicle OBE Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Transportation Information Center Installer	Transportation Information Center	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Transportation Information Center Owner	Transportation Information Center Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Transportation Information Center Owner	Transportation Information Center Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.

Operations and Maintenance Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Location and Time Data Source Maintainer	Location and Time Data Source	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the 'maintains' role typically is delegated authority by the entity with the "Owns" or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Location and Time Data Source Manager	Location and Time Data Source	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Location and Time Data Source Owner	Location and Time Data Source Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Location and Time Data Source Owner	Location and Time Data Source Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Location and Time Data Source Owner	Transit Vehicle OBE Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Location and Time Data Source Owner	Transit Vehicle OBE User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Location and Time Data Source Supplier	Location and Time Data Source Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Traffic Management Center Maintainer	Traffic Management Center	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the 'maintains' role typically is delegated authority by the entity with the "Owns" or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Traffic Management Center Manager	Traffic Management Center	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Traffic Management Center Owner	Traffic Management Center Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Traffic Management Center Owner	Traffic Management Center Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Traffic Management Center Supplier	Traffic Management Center Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Transit Management Center Maintainer	Transit Management Center	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the 'maintains' role typically is delegated authority by the entity with the "Owns" or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Transit Management Center Manager	Transit Management Center	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Transit Management Center Manager	Transit Operations Personnel	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Transit Management Center Owner	Traffic Management Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Transit Management Center Owner	Traffic Management Center Owner	Information Provision Agreement (hide) An agreement where one party agrees to provide information to another party. This is a unidirectional agreement.
Transit Management Center Owner	Traffic Management Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Transit Management Center Owner	Transit Management Center Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Transit Management Center Owner	Transit Management Center Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Transit Management Center Owner	Transportation Information Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Transit Management Center Owner	Transportation Information Center Owner	Information Provision Agreement (hide) An agreement where one party agrees to provide information to another party. This is a unidirectional agreement.
Transit Management Center Owner	Transportation Information Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Transit Management Center Supplier	Transit Management Center Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Transit Operations Personnel	Transit Management Center	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Transit Vehicle OBE Maintainer	Transit Vehicle OBE	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the 'maintains' role typically is delegated authority by the entity with the "Owns" or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Transit Vehicle OBE Manager	Transit Vehicle OBE	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Transit Vehicle OBE Owner	Transit Management Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Transit Vehicle OBE Owner	Transit Management Center Owner	Expectation of Data Provision (hide) An expectation where one party believes another party will provide data on a regular and recurring basis, and that that data will be useful to the receiver in the context of the receiver's application. This thus includes some expectation of data fields, timeliness, quality, precision and similar qualities of data.
Transit Vehicle OBE Owner	Transit Management Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Transit Vehicle OBE Owner	Transit Operations Personnel	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Transit Vehicle OBE Owner	Transit Operations Personnel	Vehicle Operating Agreement (hide) An agreement whereupon the controller of a vehicle grants another entity permission and rights to operate the vehicle.
Transit Vehicle OBE Owner	Transit Vehicle OBE Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Transit Vehicle OBE Owner	Transit Vehicle OBE Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Transit Vehicle OBE Supplier	Transit Vehicle OBE Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Transportation Information Center Maintainer	Transportation Information Center	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the 'maintains' role typically is delegated authority by the entity with the "Owns" or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Transportation Information Center Manager	Transportation Information Center	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Transportation Information Center Owner	Transportation Information Center Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Transportation Information Center Owner	Transportation Information Center Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Transportation Information Center Supplier	Transportation Information Center Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.

Functional

This service package includes the following Functional View PSpecs:

Physical Object	Functional Object	PSpec Number	PSpec Name
Transit Management Center	Transit Center Vehicle Tracking	4.1.4	Collect and Process Transit Vehicle Data
Transit Management Center	Transit Center Vehicle Tracking	4.1.5.1	Manage Transit Vehicle Operations
Transit Vehicle OBE	Transit Vehicle On-Board Trip Monitoring	4.1.1	Process On-Board Systems Data
		4.1.2	Determine Transit Vehicle Service Status
		4.1.3	Provide Transit Vehicle Location Data
		4.6.2	Determine Traveler Needs on Vehicle

Physical

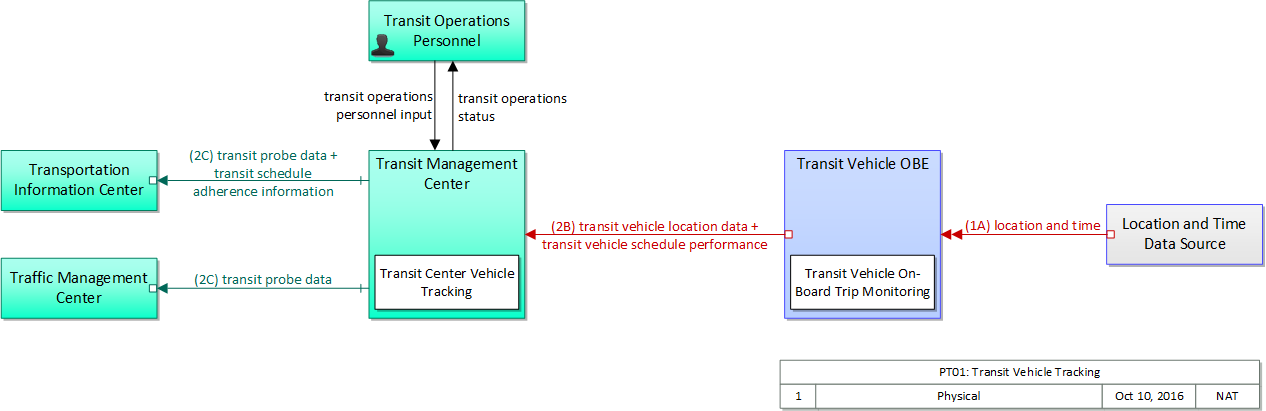

The physical diagram can be viewed in SVG or PNG format and the current format is SVG.
SVG Diagram
PNG Diagram

Display Legend in SVG or PNG

Includes Physical Objects:

Physical Object	Class	Description
Location and Time Data Source	ITS	The 'Location and Time Data Source' provides accurate position information. While a Global Positioning System (GPS) Receiver is the most common implementation, this physical object represents any technology that provides a position fix in three dimensions and time with sufficient accuracy.
Traffic Management Center	Center	The 'Traffic Management Center' monitors and controls traffic and the road network. It represents centers that manage a broad range of transportation facilities including freeway systems, rural and suburban highway systems, and urban and suburban traffic control systems. It communicates with ITS Roadway Equipment and Connected Vehicle Roadside Equipment (RSE) to monitor and manage traffic flow and monitor the condition of the roadway, surrounding environmental conditions, and field equipment status. It manages traffic and transportation resources to support allied agencies in responding to, and recovering from, incidents ranging from minor traffic incidents through major disasters.
Transit Management Center	Center	The 'Transit Management Center' manages transit vehicle fleets and coordinates with other modes and transportation services. It provides operations, maintenance, customer information, planning and management functions for the transit property. It spans distinct central dispatch and garage management systems and supports the spectrum of fixed route, flexible route, paratransit services, transit rail, and bus rapid transit (BRT) service. The physical object's interfaces support communication between transit departments and with other operating entities such as emergency response services and traffic management systems.
Transit Operations Personnel	Center	'Transit Operations Personnel' represents the people that are responsible for fleet management, maintenance operations, and scheduling activities of the transit system. These different roles represent a variety of individuals in the transit industry. Within the transit industry the person responsible for fleet management is known by many names: Street Supervisor, Starter, Dispatcher, Supervisor, Traffic Controller, Transportation Coordinator. This person actively monitors, controls, and modifies the transit fleet routes and schedules on a day to day basis (dynamic scheduling). The modifications will take account of abnormal situations such as vehicle breakdown, vehicle delay, detours around work zones or incidents (detour management, connection protection, and service restoration), and other causes of route or schedule deviations. Transit operations personnel are also responsible for demand responsive transit operation and for managing emergency situations within the transit network such as silent alarms on board transit vehicles, or the remote disabling of the vehicle. In addition the Transit Operations Personnel may be responsible for assigning vehicle operators to routes, checking vehicle operators in and out, and managing transit stop issues. This object also represents the personnel in the transit garage that are responsible for maintenance of the transit fleets, including monitoring vehicle status, matching vehicles with operators, and maintenance checking of transit vehicles. Finally, it represents the people responsible for planning, development, and management of transit routes and schedules.
Transit Vehicle OBE	Vehicle	The 'Transit Vehicle On-Board Equipment' (OBE) resides in a transit vehicle and provides the sensory, processing, storage, and communications functions necessary to support safe and efficient movement of passengers. The types of transit vehicles containing this physical object include buses, paratransit vehicles, light rail vehicles, other vehicles designed to carry passengers, and supervisory vehicles. It collects ridership levels and supports electronic fare collection. It supports a traffic signal prioritization function that communicates with the roadside physical object to improve on-schedule performance. Automated vehicle location enhances the information available to the transit operator enabling more efficient operations. On-board sensors support transit vehicle maintenance. The physical object supports on-board security and safety monitoring. This monitoring includes transit user or vehicle operator activated alarms (silent or audible), as well as surveillance and sensor equipment. The surveillance equipment includes video (e.g. CCTV cameras), audio systems and/or event recorder systems. It also furnishes travelers with real-time travel information, continuously updated schedules, transfer options, routes, and fares. A separate 'Vehicle OBE' physical object supports the general vehicle safety and driver information capabilities that apply to all vehicles, including transit vehicles. The Transit Vehicle OBE supplements these general capabilities with capabilities that are specific to transit vehicles.
Transportation Information Center	Center	The 'Transportation Information Center' collects, processes, stores, and disseminates transportation information to system operators and the traveling public. The physical object can play several different roles in an integrated ITS. In one role, the TIC provides a data collection, fusing, and repackaging function, collecting information from transportation system operators and redistributing this information to other system operators in the region and other TICs. In this information redistribution role, the TIC provides a bridge between the various transportation systems that produce the information and the other TICs and their subscribers that use the information. The second role of a TIC is focused on delivery of traveler information to subscribers and the public at large. Information provided includes basic advisories, traffic and road conditions, transit schedule information, yellow pages information, ride matching information, and parking information. The TIC is commonly implemented as a website or a web-based application service, but it represents any traveler information distribution service.

Includes Functional Objects:

Functional Object	Description	Physical Object
Transit Center Vehicle Tracking	'Transit Center Vehicle Tracking' monitors transit vehicle location. The location information is collected via a data communication link between the transit vehicles and the transit center. The location information is presented to the transit operator on a digitized map of the transit service area. The location data may be used to determine real time schedule adherence and update the transit system's schedule in real-time. The real-time schedule information is disseminated to other information providers, which furnish the information to travelers.	Transit Management Center
Transit Vehicle On-Board Trip Monitoring	'Transit Vehicle On-Board Trip Monitoring' tracks vehicle location, monitors fuel usage, collects operational status (doors opened/closed, running times, etc.) and sends the collected, time stamped data to the Transit Management Center.	Transit Vehicle OBE

Includes Information Flows:

Information Flow	Description
location and time	The current geographic location in three dimensions (latitude, longitude, elevation) and the current time.
transit operations personnel input	User input from transit operations personnel including instructions governing service availability, schedules, emergency response plans, transit personnel assignments, transit maintenance requirements, and other inputs that establish general system operating requirements and procedures.
transit operations status	Presentation of information to transit operations personnel including accumulated schedule and fare information, ridership and on-time performance information, emergency response plans, transit personnel information, maintenance records, and other information intended to support overall planning and management of a transit property.
transit probe data	Aggregate probe data derived from tracking transit vehicles. Data collected could include transit vehicle speeds and travel times for a given link or collection of links.
transit schedule adherence information	Dynamic transit schedule adherence and transit vehicle location information.
transit vehicle location data	Current transit vehicle location and related operational conditions data provided by a transit vehicle.
transit vehicle schedule performance	Estimated times of arrival and anticipated schedule deviations reported by a transit vehicle.

Goals and Objectives

Associated Planning Factors and Goals

Planning Factor	Goal
D. Increase the accessibility and mobility of people and for freight;	Reduce congestion
F. Enhance the integration and connectivity of the transportation system, across and between modes, for people and freight;	Enhance integration and connectivity
G. Promote efficient system management and operation;	Improve efficiency
I. Improve the resiliency and reliability of the transportation system and reduce or mitigate stormwater impacts of surface transportation;	Improve resiliency and reliability
J. Enhance travel and tourism.	Support travel and tourism

Associated Objective Categories

Objective Category
System Reliability: Transit On-Time Performance
Transit Operations and Management: Transit Signal Priority
Traveler Information: Data Collection and Sharing on Travel Conditions

Associated Objectives and Performance Measures

Objective	Performance Measure
Decrease delay by X percent per year by increasing the use of queue jumping and automated vehicle location.	Travel time delay on routes with queue jumping and automated vehicle location in use.
Improve average on-time performance for specified transit routes/facilities by X percent within Y years.	On-time performance of transit.
Increase the percent of modes in the region that share their traveler information with other modes in the region to 100 percent by Y year.	Percent of modes in the region that share their traveler information with other modes.
Increase the percent of transportation facilities whose owners share their traveler information with other agencies in the region to X percent by Y year.	Percent of transportation facilities whose owners share their traveler information with other agencies in the region.

Since the mapping between objectives and service packages is not always straight-forward and often situation-dependent, these mappings should only be used as a starting point. Users should do their own analysis to identify the best service packages for their region.

Needs and Requirements

Need		Functional Object	Requirement
01	Transit Operations needs to be able to monitor the location of transit vehicles in order to improve decision making by transit operators and provide more accurate information to travelers .	Transit Center Vehicle Tracking	01	The center shall monitor the locations of all transit vehicles within its network.
		Transit Vehicle On-Board Trip Monitoring	01	The transit vehicle shall track the current location of the transit vehicle.
			02	The transit vehicle shall support the computation of the location of a transit vehicle using on-board sensors to augment the location determination function. This may include proximity to the transit stops or other known reference points as well as recording trip length.
			03	The transit vehicle shall record transit trip monitoring data including vehicle mileage and fuel usage.
02	Transit Operations needs to be able to determine whether each transit vehicle is adhering to its schedule.	Transit Center Vehicle Tracking	02	The center shall determine adherence of transit vehicles to their assigned schedule.
		Transit Vehicle On-Board Trip Monitoring	04	The transit vehicle shall record transit trip monitoring data including operational status information such as doors open/closed, running times, etc.
		Transit Vehicle On-Board Trip Monitoring	05	The transit vehicle shall send the transit vehicle trip monitoring data to center-based trip monitoring functions.
03	Transit Operations needs to be able to send transit vehicle location and schedule adherence data to other centers in order to support traveler information and traffic operations.	Transit Center Vehicle Tracking	03	The center shall provide transit operational data to traveler information service providers.
03		Transit Center Vehicle Tracking	04	The center shall provide collected transit probe data to traffic management centers and traveler information service providers for use in measuring current traffic conditions.

Related Sources

Document Name	Version	Publication Date
ITS User Services Document		1/1/2005

Security

In order to participate in this service package, each physical object should meet or exceed the following security levels.

Physical Object Security
Physical Object	Confidentiality	Integrity	Availability	Security Class
Location and Time Data Source	Moderate	High	High	Class 5
Traffic Management Center	Low	Low	Low	Class 1
Transit Management Center	Moderate	Moderate	Moderate	Class 2
Transit Vehicle OBE	Moderate	Moderate	High	Class 5
Transportation Information Center	Low	Low	Moderate	Class 1

In order to participate in this service package, each information flow triple should meet or exceed the following security levels.

Information Flow Security
Source	Destination	Information Flow	Confidentiality	Integrity	Availability
Source	Destination	Information Flow	Basis	Basis	Basis
Location and Time Data Source	Transit Vehicle OBE	location and time	Moderate	High	High
Location and Time Data Source	Transit Vehicle OBE	location and time	While time reference should be universally available, time reference coupled with vehicle location is tracking data. This flow is internal to a vehicle, but should probably be encrypted to discourage hacking and snooping on the vehicle bus. Thus MODERATE.	Location and time data is the basis for crash imminent safety and a host of other applications. Corruption of this flow could lead directly to a vehicle accident.	If this information is not available, crash imminent safety applications depending on this information will not function properly.
Transit Management Center	Traffic Management Center	transit probe data	Low	Moderate	Low
Transit Management Center	Traffic Management Center	transit probe data	As this is aggregate information that will be used for a public information product, there is little reason to conceal it.	This will eventually drive decisions made by travelers, so it does deserve some protection. If modified or corrupted, may lead to decisions wasting time and money.	There are many sources of traffic data, it is unlikely that this is the only one. Loss of this flow may degrade overall travel time quality (unclear, as transit travel times are notoriously different from passenger vehicle travel times), it would not eliminate that metric and would have a widespread but minor effect.
Transit Management Center	Transit Operations Personnel	transit operations status	Moderate	High	High
Transit Management Center	Transit Operations Personnel	transit operations status	Backoffice operations flows should have minimal protection from casual viewing, as otherwise imposters could gain illicit control or information that should not be generally available.	Backoffice operations flows should generally be correct and available as these are the primary interface between operators and system.	Backoffice operations flows should generally be correct and available as these are the primary interface between operators and system.
Transit Management Center	Transportation Information Center	transit probe data	Low	Moderate	Low
Transit Management Center	Transportation Information Center	transit probe data	As this is aggregate information that will be used for a public information product, there is little reason to conceal it.	This will eventually drive decisions made by travelers, so it does deserve some protection. If modified or corrupted, may lead to decisions wasting time and money.	There are many sources of traffic data, it is unlikely that this is the only one. Loss of this flow may degrade overall travel time quality (unclear, as transit travel times are notoriously different from passenger vehicle travel times), it would not eliminate that metric and would have a widespread but minor effect.
Transit Management Center	Transportation Information Center	transit schedule adherence information	Low	Moderate	Moderate
Transit Management Center	Transportation Information Center	transit schedule adherence information	Eventually intended for public consumption, so no need to obfuscate.	While accuracy of this data is important for decision making purposes, applications should be able to function without it. Thus MODERATE generally.	While accuracy of this data is important for decision making purposes, applications should be able to cfunction without it. Thus MODERATE generally.
Transit Operations Personnel	Transit Management Center	transit operations personnel input	Moderate	High	High
Transit Operations Personnel	Transit Management Center	transit operations personnel input	Backoffice operations flows should have minimal protection from casual viewing, as otherwise imposters could gain illicit control or information that should not be generally available.	Backoffice operations flows should generally be correct and available as these are the primary interface between operators and system.	Backoffice operations flows should generally be correct and available as these are the primary interface between operators and system.
Transit Vehicle OBE	Transit Management Center	transit vehicle location data	Moderate	Moderate	Moderate
Transit Vehicle OBE	Transit Management Center	transit vehicle location data	While internal, contains identification, passenger load and routing data that if observed could be used by an attacker to identify targets.	Applications relying on this data will not function properly if the data is incorrect, so it must be protected commensurate to the value of the application.	Applications relying on this data will not function properly if the data is incorrect, so it must be protected commensurate to the value of the application. Location data is dynamic, so probably needs to be updated frequently.
Transit Vehicle OBE	Transit Management Center	transit vehicle schedule performance	Low	Moderate	Low
Transit Vehicle OBE	Transit Management Center	transit vehicle schedule performance	This information is directly observable, and in most instances it is made publically available.	This information may be used to influence the decision about whether or not to make a traffic control priority request on behalf of the transit vehicle. If it is incorrect it may cause the transit management center to send out incorrect traffic control priority requests, which may delay traffic.	There should not be any catastrophic failures caused if this data is occasionally missing.

Standards

Currently, there are no standards associated with the physical objects in this service package. For standards related to interfaces, see the specific information flow triple pages.

System Requirements

System Requirement		Need
001	The system shall monitor the locations of all transit vehicles within its network.	01	Transit Operations needs to be able to monitor the location of transit vehicles in order to improve decision making by transit operators and provide more accurate information to travelers .
002	The system shall determine adherence of transit vehicles to their assigned schedule.	02	Transit Operations needs to be able to determine whether each transit vehicle is adhering to its schedule.
003	The system shall provide transit operational data to traveler information service providers.	03	Transit Operations needs to be able to send transit vehicle location and schedule adherence data to other centers in order to support traveler information and traffic operations.
004	The system shall provide collected transit probe data to traffic management centers and traveler information service providers for use in measuring current traffic conditions.	03	Transit Operations needs to be able to send transit vehicle location and schedule adherence data to other centers in order to support traveler information and traffic operations.
005	The system shall track the current location of the transit vehicle.	01	Transit Operations needs to be able to monitor the location of transit vehicles in order to improve decision making by transit operators and provide more accurate information to travelers .
006	The system shall support the computation of the location of a transit vehicle using on-board sensors to augment the location determination function. This may include proximity to the transit stops or other known reference points as well as recording trip	01	Transit Operations needs to be able to monitor the location of transit vehicles in order to improve decision making by transit operators and provide more accurate information to travelers .
007	The system shall record transit trip monitoring data including vehicle mileage and fuel usage.	01	Transit Operations needs to be able to monitor the location of transit vehicles in order to improve decision making by transit operators and provide more accurate information to travelers .
008	The system shall record transit trip monitoring data including operational status information such as doors open/closed, running times, etc.	02	Transit Operations needs to be able to determine whether each transit vehicle is adhering to its schedule.
009	The system shall send the transit vehicle trip monitoring data to center-based trip monitoring functions.	02	Transit Operations needs to be able to determine whether each transit vehicle is adhering to its schedule.
