Kind: Subsystem

Class: Center

Type: System

Transportation Information Center

Overview

The 'Transportation Information Center' collects, processes, stores, and disseminates transportation information to system operators and the traveling public. The physical object can play several different roles in an integrated ITS. In one role, the TIC provides a data collection, fusing, and repackaging function, collecting information from transportation system operators and redistributing this information to other system operators in the region and other TICs. In this information redistribution role, the TIC provides a bridge between the various transportation systems that produce the information and the other TICs and their subscribers that use the information. The second role of a TIC is focused on delivery of traveler information to subscribers and the public at large. Information provided includes basic advisories, traffic and road conditions, transit schedule information, yellow pages information, ride matching information, and parking information. The TIC is commonly implemented as a website or a web-based application service, but it represents any traveler information distribution service.



This physical object is included in the following Service Packages:

Triples

Source Flow Destination
Alerting and Advisory System alerts and advisories Transportation Information Center
Alternate Mode Transportation Center alternate mode information Transportation Information Center
Alternate Mode Transportation Center service information response Transportation Information Center
Archived Data System archive status Transportation Information Center
Border Inspection System border crossing status information Transportation Information Center
Care Facility care facility general status Transportation Information Center
Commercial Vehicle Administration Center commercial vehicle permit information Transportation Information Center
Commercial Vehicle Administration Center route restrictions Transportation Information Center
Commercial Vehicle OBE cv trip request Transportation Information Center
Commercial Vehicle OBE freight traveler information preferences Transportation Information Center
Connected Vehicle Roadside Equipment environmental situation data Transportation Information Center
Connected Vehicle Roadside Equipment road weather advisory status Transportation Information Center
Connected Vehicle Roadside Equipment traffic situation data Transportation Information Center
Connected Vehicle Roadside Equipment traveler information application status Transportation Information Center
Electric Charging Management Center electric charging reservation confirmation Transportation Information Center
Electric Charging Management Center electric charging station information Transportation Information Center
Emergency Management Center alert notification Transportation Information Center
Emergency Management Center evacuation information Transportation Information Center
Emergency Management Center incident information for public Transportation Information Center
Emergency Management Center transportation system status Transportation Information Center
Emissions Management Center air quality information Transportation Information Center
Emissions Management Center low emissions zone operations information for public Transportation Information Center
Event Promoter System event information Transportation Information Center
Financial Center payment methods financial institution Transportation Information Center
Financial Center settlement Transportation Information Center
Fleet and Freight Management Center commercial vehicle trip information Transportation Information Center
Fleet and Freight Management Center cv trip request Transportation Information Center
Fleet and Freight Management Center freight traveler information preferences Transportation Information Center
Fleet and Freight Management Center toll data request Transportation Information Center
Freight Distribution and Logistics Center freight traveler information preferences Transportation Information Center
Intermodal Customer System freight traveler information preferences Transportation Information Center
Intermodal Terminal intermodal terminal status Transportation Information Center
Light Vehicle OBE emergency traveler information request Transportation Information Center
Light Vehicle OBE evacuation assistance request Transportation Information Center
Light Vehicle OBE shelter request Transportation Information Center
Light Vehicle OBE travel services request Transportation Information Center
Light Vehicle OBE traveler request Transportation Information Center
Light Vehicle OBE traveler sourced updates Transportation Information Center
Light Vehicle OBE trip confirmation Transportation Information Center
Light Vehicle OBE trip feedback Transportation Information Center
Light Vehicle OBE trip request Transportation Information Center
Light Vehicle OBE trip status Transportation Information Center
Light Vehicle OBE user account setup Transportation Information Center
Light Vehicle OBE user profile Transportation Information Center
Maint and Constr Management Center current infrastructure restrictions Transportation Information Center
Maint and Constr Management Center environmental conditions data Transportation Information Center
Maint and Constr Management Center infrastructure safety warning Transportation Information Center
Maint and Constr Management Center lane closure information Transportation Information Center
Maint and Constr Management Center maint and constr work plans Transportation Information Center
Maint and Constr Management Center road weather information Transportation Information Center
Maint and Constr Management Center roadway maintenance status Transportation Information Center
Maint and Constr Management Center work zone information Transportation Information Center
Micromobility Vehicle OBE traveler sourced updates Transportation Information Center
Micromobility Vehicle OBE trip feedback Transportation Information Center
Micromobility Vehicle OBE trip request Transportation Information Center
Micromobility Vehicle OBE trip status Transportation Information Center
Micromobility Vehicle OBE user profile Transportation Information Center
Micromobility Vehicle OBE wayfinding feedback Transportation Information Center
Micromobility Vehicle OBE wayfinding request Transportation Information Center
Other Transportation Information Centers alternate mode information Transportation Information Center
Other Transportation Information Centers electric charging information Transportation Information Center
Other Transportation Information Centers emergency traveler information Transportation Information Center
Other Transportation Information Centers incident information for public Transportation Information Center
Other Transportation Information Centers parking information Transportation Information Center
Other Transportation Information Centers road network conditions Transportation Information Center
Other Transportation Information Centers traffic image meta data Transportation Information Center
Other Transportation Information Centers traffic images Transportation Information Center
Other Transportation Information Centers transit service information Transportation Information Center
Parking Management Center loading zone information Transportation Information Center
Parking Management Center loading zone reservation confirmation Transportation Information Center
Parking Management Center parking information Transportation Information Center
Parking Management Center parking reservation confirmation Transportation Information Center
Pathway Communications Unit communications signature Transportation Information Center
Pathway Equipment pathway equipment state Transportation Information Center
Pathway Equipment pathway equipment status Transportation Information Center
Payment Administration Center reconciliation response Transportation Information Center
Payment Administration Center road use charge info Transportation Information Center
Payment Administration Center toll data Transportation Information Center
Payment Administration Center toll probe data Transportation Information Center
Payment Administration Center trip access coordination Transportation Information Center
Personal Information Device cv trip request Transportation Information Center
Personal Information Device emergency traveler information request Transportation Information Center
Personal Information Device evacuation assistance request Transportation Information Center
Personal Information Device freight traveler information preferences Transportation Information Center
Personal Information Device shelter request Transportation Information Center
Personal Information Device travel services request Transportation Information Center
Personal Information Device traveler request Transportation Information Center
Personal Information Device traveler sourced updates Transportation Information Center
Personal Information Device trip confirmation Transportation Information Center
Personal Information Device trip feedback Transportation Information Center
Personal Information Device trip request Transportation Information Center
Personal Information Device trip status Transportation Information Center
Personal Information Device user account setup Transportation Information Center
Personal Information Device user profile Transportation Information Center
Personal Information Device wayfinding feedback Transportation Information Center
Personal Information Device wayfinding request Transportation Information Center
Rail Operations Center railroad advisories Transportation Information Center
Rail Operations Center railroad schedules Transportation Information Center
Shared Use Transportation Center shared use status Transportation Information Center
Shelter Provider Center shelter information Transportation Information Center
Social Media traveler sourced updates Transportation Information Center
Surface Transportation Weather Service transportation weather information Transportation Information Center
TIC Operator TIC operator input Transportation Information Center
Traffic Management Center automated lane control data Transportation Information Center
Traffic Management Center incident information for public Transportation Information Center
Traffic Management Center intersection status Transportation Information Center
Traffic Management Center lane closure information Transportation Information Center
Traffic Management Center reduced speed warning info Transportation Information Center
Traffic Management Center restricted lanes information Transportation Information Center
Traffic Management Center road network conditions Transportation Information Center
Traffic Management Center speed management information Transportation Information Center
Traffic Management Center traffic control information Transportation Information Center
Traffic Management Center traffic image meta data Transportation Information Center
Traffic Management Center traffic images Transportation Information Center
Traffic Management Center transportation operational strategies Transportation Information Center
Transit Management Center demand responsive transit plan Transportation Information Center
Transit Management Center emergency transit schedule information Transportation Information Center
Transit Management Center transit and fare schedules Transportation Information Center
Transit Management Center transit fare information Transportation Information Center
Transit Management Center transit incident information Transportation Information Center
Transit Management Center transit probe data Transportation Information Center
Transit Management Center transit schedule adherence information Transportation Information Center
Transit Management Center transit trip plan Transportation Information Center
Transportation Information Center service information request Alternate Mode Transportation Center
Transportation Information Center traveler archive data Archived Data System
Transportation Information Center freight-specific traveler information Commercial Vehicle OBE
Transportation Information Center parking availability Commercial Vehicle OBE
Transportation Information Center parking plan Commercial Vehicle OBE
Transportation Information Center road weather advisory info Connected Vehicle Roadside Equipment
Transportation Information Center traveler information application info Connected Vehicle Roadside Equipment
Transportation Information Center electric charging reservation request Electric Charging Management Center
Transportation Information Center alert status Emergency Management Center
Transportation Information Center road network conditions Emergency Management Center
Transportation Information Center road network environmental situation data Emergency Management Center
Transportation Information Center road weather advisories Emergency Management Center
Transportation Information Center payment request Financial Center
Transportation Information Center freight-specific traveler information Fleet and Freight Management Center
Transportation Information Center incident information for public Fleet and Freight Management Center
Transportation Information Center parking availability Fleet and Freight Management Center
Transportation Information Center parking plan Fleet and Freight Management Center
Transportation Information Center road network conditions Fleet and Freight Management Center
Transportation Information Center road network environmental situation data Fleet and Freight Management Center
Transportation Information Center road weather advisories Fleet and Freight Management Center
Transportation Information Center toll data Fleet and Freight Management Center
Transportation Information Center freight-specific traveler information Freight Distribution and Logistics Center
Transportation Information Center freight-specific traveler information Intermodal Customer System
Transportation Information Center electric charging services inventory Light Vehicle OBE
Transportation Information Center emergency traveler information Light Vehicle OBE
Transportation Information Center evacuation assistance information Light Vehicle OBE
Transportation Information Center guidance updates Light Vehicle OBE
Transportation Information Center interactive traveler information Light Vehicle OBE
Transportation Information Center parking plan Light Vehicle OBE
Transportation Information Center shelter recommendations Light Vehicle OBE
Transportation Information Center travel services information Light Vehicle OBE
Transportation Information Center traveler alerts Light Vehicle OBE
Transportation Information Center trip plan Light Vehicle OBE
Transportation Information Center road network environmental situation data Maint and Constr Management Center
Transportation Information Center traveler information for media Media
Transportation Information Center guidance updates Micromobility Vehicle OBE
Transportation Information Center traveler alerts Micromobility Vehicle OBE
Transportation Information Center trip plan Micromobility Vehicle OBE
Transportation Information Center wayfinding information Micromobility Vehicle OBE
Transportation Information Center wayfinding plan Micromobility Vehicle OBE
Transportation Information Center alternate mode information Other Transportation Information Centers
Transportation Information Center electric charging information Other Transportation Information Centers
Transportation Information Center emergency traveler information Other Transportation Information Centers
Transportation Information Center incident information for public Other Transportation Information Centers
Transportation Information Center parking information Other Transportation Information Centers
Transportation Information Center road network conditions Other Transportation Information Centers
Transportation Information Center traffic image meta data Other Transportation Information Centers
Transportation Information Center traffic images Other Transportation Information Centers
Transportation Information Center transit service information Other Transportation Information Centers
Transportation Information Center loading zone reservation request Parking Management Center
Transportation Information Center parking reservation request Parking Management Center
Transportation Information Center pathway equipment application info Pathway Equipment
Transportation Information Center account updates Payment Administration Center
Transportation Information Center smart card reconciliation Payment Administration Center
Transportation Information Center toll data request Payment Administration Center
Transportation Information Center trip access coordination Payment Administration Center
Transportation Information Center broadcast traveler information Personal Information Device
Transportation Information Center emergency traveler information Personal Information Device
Transportation Information Center evacuation assistance information Personal Information Device
Transportation Information Center freight-specific traveler information Personal Information Device
Transportation Information Center guidance updates Personal Information Device
Transportation Information Center interactive traveler information Personal Information Device
Transportation Information Center lane closure information Personal Information Device
Transportation Information Center parking availability Personal Information Device
Transportation Information Center parking plan Personal Information Device
Transportation Information Center road closure information Personal Information Device
Transportation Information Center road weather advisories Personal Information Device
Transportation Information Center shelter recommendations Personal Information Device
Transportation Information Center travel services information Personal Information Device
Transportation Information Center traveler alerts Personal Information Device
Transportation Information Center trip plan Personal Information Device
Transportation Information Center wayfinding information Personal Information Device
Transportation Information Center wayfinding plan Personal Information Device
Transportation Information Center emergency traveler information Shelter Provider Center
Transportation Information Center evacuee match information Shelter Provider Center
Transportation Information Center social media presence Social Media
Transportation Information Center road network environmental situation data Surface Transportation Weather Service
Transportation Information Center TIC operations information presentation TIC Operator
Transportation Information Center fare and price information Traffic Management Center
Transportation Information Center logged vehicle routes Traffic Management Center
Transportation Information Center road network environmental situation data Traffic Management Center
Transportation Information Center road network traffic situation data Traffic Management Center
Transportation Information Center demand responsive transit request Transit Management Center
Transportation Information Center transit fare request Transit Management Center
Transportation Information Center transit trip request Transit Management Center
Transportation Information Center trip confirmation Transit Management Center
Transportation Information Center travel service information request Travel Services Provider System
Transportation Information Center travel service reservation request Travel Services Provider System
Transportation Information Center voice-based alert notification Traveler Information Voice System
Transportation Information Center voice-based traveler information Traveler Information Voice System
Transportation Information Center broadcast traveler information Traveler Support Equipment
Transportation Information Center emergency traveler information Traveler Support Equipment
Transportation Information Center evacuation assistance information Traveler Support Equipment
Transportation Information Center interactive traveler information Traveler Support Equipment
Transportation Information Center parking plan Traveler Support Equipment
Transportation Information Center shelter recommendations Traveler Support Equipment
Transportation Information Center travel services information Traveler Support Equipment
Transportation Information Center trip plan Traveler Support Equipment
Transportation Information Center wayfinding information Traveler Support Equipment
Transportation Information Center wayfinding plan Traveler Support Equipment
Transportation Information Center automated vehicle control parameters Vehicle
Transportation Information Center broadcast traveler information Vehicle
Transportation Information Center infrastructure safety warning notification Vehicle
Transportation Information Center intersection status Vehicle
Transportation Information Center lane closure information Vehicle
Transportation Information Center queue warning information Vehicle
Transportation Information Center reduced speed warning info Vehicle
Transportation Information Center restricted lanes information Vehicle
Transportation Information Center road closure information Vehicle
Transportation Information Center road weather advisories Vehicle
Transportation Information Center speed management information Vehicle
Transportation Information Center vehicle situation data parameters Vehicle
Transportation Information Center road network environmental situation data Weather Service System
Travel Services Provider System travel service information Transportation Information Center
Travel Services Provider System travel service reservations Transportation Information Center
Traveler Information Voice System voice-based traveler request Transportation Information Center
Traveler Support Equipment emergency traveler information request Transportation Information Center
Traveler Support Equipment evacuation assistance request Transportation Information Center
Traveler Support Equipment shelter request Transportation Information Center
Traveler Support Equipment travel services request Transportation Information Center
Traveler Support Equipment traveler request Transportation Information Center
Traveler Support Equipment traveler sourced updates Transportation Information Center
Traveler Support Equipment trip confirmation Transportation Information Center
Traveler Support Equipment trip request Transportation Information Center
Traveler Support Equipment wayfinding request Transportation Information Center
Vehicle vehicle environmental data Transportation Information Center
Vehicle vehicle situation data Transportation Information Center
Weather Service System qualified environmental conditions data Transportation Information Center
Weather Service System weather information Transportation Information Center
Wireless Communications Provider System comm-derived travel performance data Transportation Information Center

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class Confidentiality Integrity Availability Service Package
Class 5 Moderate Moderate High Broadcast Traveler Information
Class 5 Moderate Moderate High En-Route Guidance
Class 5 Moderate Moderate High Freight-Specific Dynamic Travel Planning
Class 5 Low Low High Maintenance and Construction Activity Coordination
Class 5 Moderate Moderate High Personal Wayfinding
Class 5 Moderate Moderate High Personalized Traveler Information
Class 5 Low Low High Road Use Charging
Class 5 High Moderate High Trip Planning and Payment
Class 5 High High High Wide-Area Alert
Class 4 High Moderate Moderate Integrated Decision Support and Demand Management
Class 4 High High Moderate ITS Data Warehouse
Class 4 High High Moderate Shared Use Mobility and Dynamic Ridesharing
Class 4 High High Moderate Travel Services Information and Reservation
Class 3 Moderate High Moderate Automated Vehicle Operations
Class 3 Moderate High Moderate Disaster Traveler Information
Class 3 Low High Moderate Emergency Call-Taking and Dispatch
Class 3 Low High Moderate Road Weather Information for Freight Carriers
Class 3 Low High Moderate Road Weather Motorist Alert and Warning
Class 3 Moderate High Moderate Spot Weather Impact Warning
Class 3 Low High Moderate Weather Data Collection
Class 2 Moderate Moderate Moderate Commercial Vehicle Parking
Class 2 Moderate Moderate Moderate Connected Eco-Driving
Class 2 Moderate Moderate Moderate Dynamic Transit Operations
Class 2 Moderate Moderate Moderate Electronic Toll Collection
Class 2 Moderate Moderate Moderate Integrated Multi-Modal Electronic Payment
Class 2 Moderate Moderate Moderate Loading Zone Management
Class 2 Moderate Moderate Moderate One-Way Convoy Driving
Class 2 Moderate Moderate Moderate Parking Reservations
Class 2 Moderate Moderate Moderate Parking Space Management
Class 2 Moderate Moderate Moderate Queue Warning
Class 2 Moderate Moderate Moderate Regional Parking Management
Class 2 Moderate Moderate Moderate Smart Park and Ride System
Class 2 Moderate Moderate Moderate Transit Traveler Information
Class 2 Moderate Moderate Moderate Vehicle-Based Traffic Surveillance
Class 2 Moderate Moderate Low Vulnerable Road User Clustering
Class 1 Low Moderate Moderate Asset Tracking
Class 1 Low Low Low Border Management Systems
Class 1 Low Moderate Moderate Carrier Operations and Fleet Management
Class 1 Not Applicable Moderate Moderate Connected Vehicle Traffic Signal System
Class 1 Low Low Low CV Administrative Processes
Class 1 Low Low Moderate Drawbridge Management
Class 1 Not Applicable Moderate Moderate Dynamic Lane Management and Shoulder Use
Class 1 Not Applicable Moderate Moderate Eco-Approach and Departure at Signalized Intersections
Class 1 Low Moderate Moderate Eco-Lanes Management
Class 1 Low Moderate Moderate Electric Charging Stations Management
Class 1 Not Applicable Low Moderate Emergency Vehicle Preemption
Class 1 Not Applicable Low Low Emissions Monitoring
Class 1 Low Low Moderate Evacuation and Reentry Management
Class 1 Not Applicable Low Moderate Freight Signal Priority
Class 1 Not Applicable Low Moderate HOV/HOT Lane Management
Class 1 Low Moderate Moderate Incident Scene Pre-Arrival Staging Guidance for Emergency Responders
Class 1 Low Low Moderate Incident Scene Safety Monitoring
Class 1 Low Moderate Moderate Infrastructure Enhanced Cooperative Adaptive Cruise Control
Class 1 Low Low Moderate Infrastructure-Based Traffic Surveillance
Class 1 Not Applicable Moderate Moderate Intermittent Bus Lanes
Class 1 Not Applicable Moderate Moderate Intersection Safety Warning and Collision Avoidance
Class 1 Low Low Moderate Low Emissions Zone Management
Class 1 Not Applicable Low Moderate Maintenance and Construction Signal Priority
Class 1 Low Low Moderate Railroad Operations Coordination
Class 1 Low Moderate Moderate Reduced Speed Zone Warning / Lane Closure
Class 1 Not Applicable Moderate Moderate Restricted Lane Warnings
Class 1 Low Low Moderate Roadway Closure Management
Class 1 Low Low Moderate Roadway Service Patrols
Class 1 Low Moderate Moderate Speed Harmonization
Class 1 Low Low Moderate Traffic Incident Management System
Class 1 Low Low Moderate Traffic Information Dissemination
Class 1 Low Moderate Moderate Transit Fare Collection Management
Class 1 Low Low Moderate Transit Fixed-Route Operations
Class 1 Low Low Moderate Transit Security
Class 1 Not Applicable Low Moderate Transit Signal Priority
Class 1 Low Low Moderate Transit Vehicle Tracking
Class 1 Not Applicable Moderate Moderate Vulnerable Road User Safety
Class 1 Low Low Moderate Weather Information Processing and Distribution
Class 1 Low Low Moderate Winter Maintenance
Class 1 Low Moderate Moderate Work Zone Management

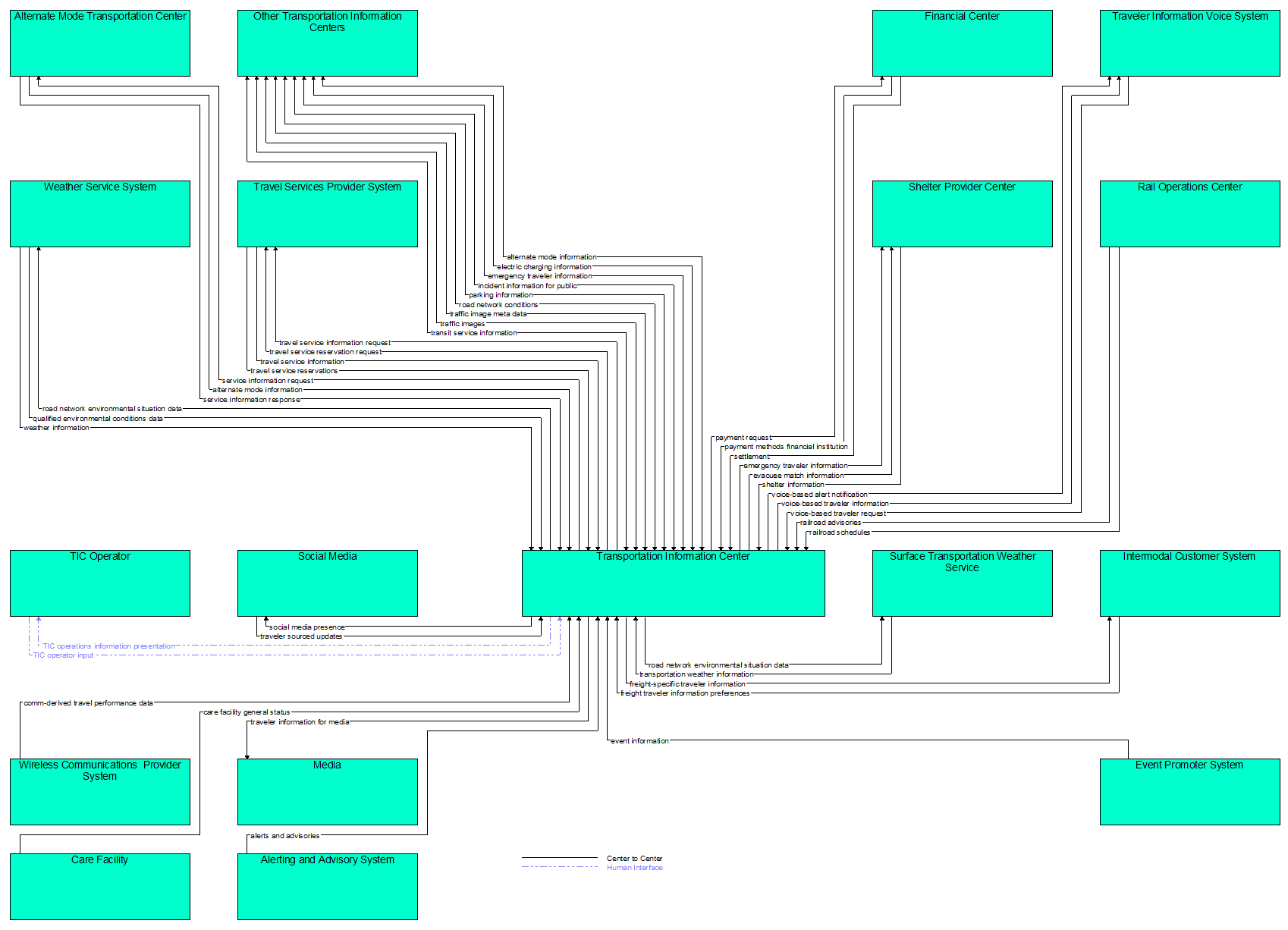

This interfaces diagram had many interfaces and so was broken up into a Subsystem and Terminator interfaces diagram.

Subsystem Interfaces Diagram

Interfaces diagram


Terminator Interfaces Diagram

Interfaces diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
