Kind: Terminator
Class: Center
Type: System
Event Promoter System
Overview
'Event Promoter System' represents Special Event Sponsors that have knowledge of events that may impact travel on roadways or other modal means. Examples of special event sponsors include sporting events, conventions, motorcades/parades, and public/political events. These promoters interface to the ITS to provide event information such as date, time, estimated duration, location, and any other information pertinent to traffic movement in the surrounding area.
This physical object does not have any functionality defined in ARC-IT, as it exists outside the system functional boundary.
This physical object is included in the following Service Packages:
Triples
Security
This physical object has the following security levels for the associated service packages.
Physical Object Security | ||||
---|---|---|---|---|
Security Class | Confidentiality | Integrity | Availability | Service Package |
Class 3 | Moderate | High | Moderate | Broadcast Traveler Information |
Class 3 | Moderate | High | Moderate | Integrated Decision Support and Demand Management |
Class 3 | Moderate | High | Moderate | Low Emissions Zone Management |
Class 3 | Moderate | High | Moderate | Multi-modal Coordination |
Class 3 | Moderate | High | Moderate | Personalized Traveler Information |
Class 3 | Moderate | High | Moderate | Regional Parking Management |
Class 3 | Moderate | High | Moderate | Traffic Incident Management System |

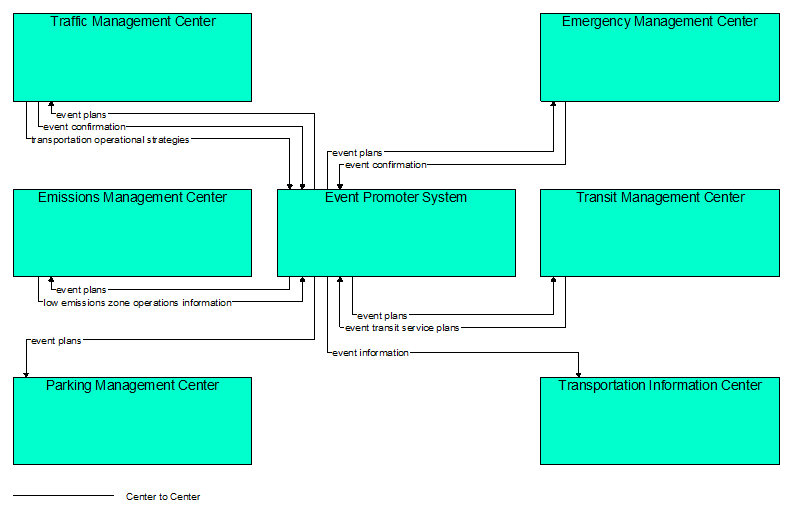

Interfaces Diagram
Standards
Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
