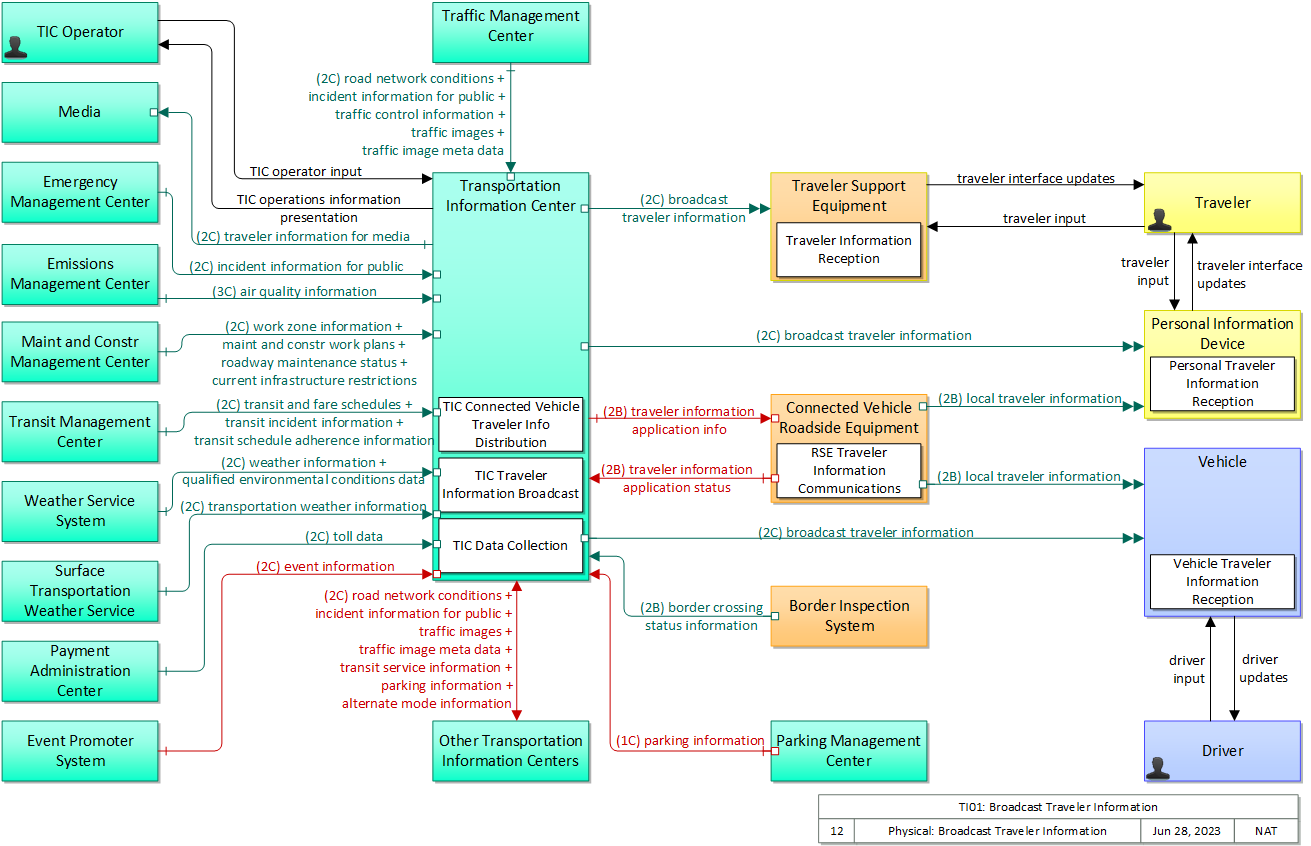

TI01: Broadcast Traveler Information

This service package provides a digital broadcast service that disseminates traveler information to all equipped travelers within range. It collects traffic conditions, advisories, general public transportation, toll and parking information, incident information, roadway maintenance and construction information, air quality and weather information, and broadcasts the information to travelers using technologies such as FM subcarrier, satellite radio, cellular data broadcasts, and Internet streaming technologies.

This service package also provides location-specific or situation-relevant information to travelers in vehicles using Dedicated Short Range Communications (DSRC) infrastructure supporting mobility service packages for connected vehicles. DSRC is used to deliver real-time traveler information including travel times, incident information, road conditions, and emergency traveler information to vehicles as they pass connected vehicle roadside equipment along their route. This service package provides public information that is available to all equipped vehicles in the vicinity of the roadside equipment.

Relevant Regions: Australia, Canada, European Union, and United States

Enterprise

Development Stage Roles and Relationships

Installation Stage Roles and Relationships

Operations and Maintenance Stage Roles and Relationships
(hide)

Source Destination Role/Relationship
Border Inspection System Maintainer Border Inspection System Maintains
Border Inspection System Manager Border Inspection System Manages
Border Inspection System Owner Border Inspection System Maintainer System Maintenance Agreement
Border Inspection System Owner Border Inspection System Manager Operations Agreement
Border Inspection System Owner TIC Operator Application Usage Agreement
Border Inspection System Owner Transportation Information Center Maintainer Maintenance Data Exchange Agreement
Border Inspection System Owner Transportation Information Center Owner Information Exchange and Action Agreement
Border Inspection System Owner Transportation Information Center User Service Usage Agreement
Border Inspection System Supplier Border Inspection System Owner Warranty
Connected Vehicle Roadside Equipment Maintainer Connected Vehicle Roadside Equipment Maintains
Connected Vehicle Roadside Equipment Manager Connected Vehicle Roadside Equipment Manages
Connected Vehicle Roadside Equipment Owner Connected Vehicle Roadside Equipment Maintainer System Maintenance Agreement
Connected Vehicle Roadside Equipment Owner Connected Vehicle Roadside Equipment Manager Operations Agreement
Connected Vehicle Roadside Equipment Owner Driver Application Usage Agreement
Connected Vehicle Roadside Equipment Owner Personal Information Device Maintainer Maintenance Data Exchange Agreement
Connected Vehicle Roadside Equipment Owner Personal Information Device Owner Information Exchange and Action Agreement
Connected Vehicle Roadside Equipment Owner Personal Information Device User Service Usage Agreement
Connected Vehicle Roadside Equipment Owner TIC Operator Application Usage Agreement
Connected Vehicle Roadside Equipment Owner Transportation Information Center Maintainer Maintenance Data Exchange Agreement
Connected Vehicle Roadside Equipment Owner Transportation Information Center Owner Information Exchange and Action Agreement
Connected Vehicle Roadside Equipment Owner Transportation Information Center User Service Usage Agreement
Connected Vehicle Roadside Equipment Owner Traveler Application Usage Agreement
Connected Vehicle Roadside Equipment Owner Vehicle Maintainer Maintenance Data Exchange Agreement
Connected Vehicle Roadside Equipment Owner Vehicle Owner Information Exchange and Action Agreement
Connected Vehicle Roadside Equipment Owner Vehicle User Service Usage Agreement
Connected Vehicle Roadside Equipment Supplier Connected Vehicle Roadside Equipment Owner Warranty
Driver Vehicle Operates
Emergency Management Center Maintainer Emergency Management Center Maintains
Emergency Management Center Manager Emergency Management Center Manages
Emergency Management Center Owner Emergency Management Center Maintainer System Maintenance Agreement
Emergency Management Center Owner Emergency Management Center Manager Operations Agreement
Emergency Management Center Owner TIC Operator Application Usage Agreement
Emergency Management Center Owner Transportation Information Center Maintainer Maintenance Data Exchange Agreement
Emergency Management Center Owner Transportation Information Center Owner Information Provision Agreement
Emergency Management Center Owner Transportation Information Center User Service Usage Agreement
Emergency Management Center Supplier Emergency Management Center Owner Warranty
Emissions Management Center Maintainer Emissions Management Center Maintains
Emissions Management Center Manager Emissions Management Center Manages
Emissions Management Center Owner Emissions Management Center Maintainer System Maintenance Agreement
Emissions Management Center Owner Emissions Management Center Manager Operations Agreement
Emissions Management Center Owner TIC Operator Application Usage Agreement
Emissions Management Center Owner Transportation Information Center Maintainer Maintenance Data Exchange Agreement
Emissions Management Center Owner Transportation Information Center Owner Information Provision Agreement
Emissions Management Center Owner Transportation Information Center User Service Usage Agreement
Emissions Management Center Supplier Emissions Management Center Owner Warranty
Event Promoter System Maintainer Event Promoter System Maintains
Event Promoter System Manager Event Promoter System Manages
Event Promoter System Owner Event Promoter System Maintainer System Maintenance Agreement
Event Promoter System Owner Event Promoter System Manager Operations Agreement
Event Promoter System Owner TIC Operator Application Usage Agreement
Event Promoter System Owner Transportation Information Center Maintainer Maintenance Data Exchange Agreement
Event Promoter System Owner Transportation Information Center Owner Information Provision Agreement
Event Promoter System Owner Transportation Information Center User Service Usage Agreement
Event Promoter System Supplier Event Promoter System Owner Warranty
Maint and Constr Management Center Maintainer Maint and Constr Management Center Maintains
Maint and Constr Management Center Manager Maint and Constr Management Center Manages
Maint and Constr Management Center Owner Maint and Constr Management Center Maintainer System Maintenance Agreement
Maint and Constr Management Center Owner Maint and Constr Management Center Manager Operations Agreement
Maint and Constr Management Center Owner TIC Operator Application Usage Agreement
Maint and Constr Management Center Owner Transportation Information Center Maintainer Maintenance Data Exchange Agreement
Maint and Constr Management Center Owner Transportation Information Center Owner Information Provision Agreement
Maint and Constr Management Center Owner Transportation Information Center User Service Usage Agreement
Maint and Constr Management Center Supplier Maint and Constr Management Center Owner Warranty
Media Maintainer Media Maintains
Media Manager Media Manages
Media Owner Media Maintainer System Maintenance Agreement
Media Owner Media Manager Operations Agreement
Media Supplier Media Owner Warranty
Other Transportation Information Centers Maintainer Other Transportation Information Centers Maintains
Other Transportation Information Centers Manager Other Transportation Information Centers Manages
Other Transportation Information Centers Owner Other Transportation Information Centers Maintainer System Maintenance Agreement
Other Transportation Information Centers Owner Other Transportation Information Centers Manager Operations Agreement
Other Transportation Information Centers Owner TIC Operator Application Usage Agreement
Other Transportation Information Centers Owner Transportation Information Center Maintainer Maintenance Data Exchange Agreement
Other Transportation Information Centers Owner Transportation Information Center Owner Information Exchange Agreement
Other Transportation Information Centers Owner Transportation Information Center User Service Usage Agreement
Other Transportation Information Centers Supplier Other Transportation Information Centers Owner Warranty
Parking Management Center Maintainer Parking Management Center Maintains
Parking Management Center Manager Parking Management Center Manages
Parking Management Center Owner Parking Management Center Maintainer System Maintenance Agreement
Parking Management Center Owner Parking Management Center Manager Operations Agreement
Parking Management Center Owner TIC Operator Application Usage Agreement
Parking Management Center Owner Transportation Information Center Maintainer Maintenance Data Exchange Agreement
Parking Management Center Owner Transportation Information Center Owner Information Provision Agreement
Parking Management Center Owner Transportation Information Center User Service Usage Agreement
Parking Management Center Supplier Parking Management Center Owner Warranty
Payment Administration Center Maintainer Payment Administration Center Maintains
Payment Administration Center Manager Payment Administration Center Manages
Payment Administration Center Owner Payment Administration Center Maintainer System Maintenance Agreement
Payment Administration Center Owner Payment Administration Center Manager Operations Agreement
Payment Administration Center Owner TIC Operator Application Usage Agreement
Payment Administration Center Owner Transportation Information Center Maintainer Maintenance Data Exchange Agreement
Payment Administration Center Owner Transportation Information Center Owner Information Provision Agreement
Payment Administration Center Owner Transportation Information Center User Service Usage Agreement
Payment Administration Center Supplier Payment Administration Center Owner Warranty
Personal Information Device Maintainer Personal Information Device Maintains
Personal Information Device Manager Personal Information Device Manages
Personal Information Device Manager Traveler System Usage Agreement
Personal Information Device Owner Personal Information Device Maintainer System Maintenance Agreement
Personal Information Device Owner Personal Information Device Manager Operations Agreement
Personal Information Device Supplier Personal Information Device Owner Warranty
Surface Transportation Weather Service Maintainer Surface Transportation Weather Service Maintains
Surface Transportation Weather Service Manager Surface Transportation Weather Service Manages
Surface Transportation Weather Service Owner Surface Transportation Weather Service Maintainer System Maintenance Agreement
Surface Transportation Weather Service Owner Surface Transportation Weather Service Manager Operations Agreement
Surface Transportation Weather Service Owner TIC Operator Application Usage Agreement
Surface Transportation Weather Service Owner Transportation Information Center Maintainer Maintenance Data Exchange Agreement
Surface Transportation Weather Service Owner Transportation Information Center Owner Information Provision Agreement
Surface Transportation Weather Service Owner Transportation Information Center User Service Usage Agreement
Surface Transportation Weather Service Supplier Surface Transportation Weather Service Owner Warranty
TIC Operator Transportation Information Center Operates
Traffic Management Center Maintainer Traffic Management Center Maintains
Traffic Management Center Manager Traffic Management Center Manages
Traffic Management Center Owner TIC Operator Application Usage Agreement
Traffic Management Center Owner Traffic Management Center Maintainer System Maintenance Agreement
Traffic Management Center Owner Traffic Management Center Manager Operations Agreement
Traffic Management Center Owner Transportation Information Center Maintainer Maintenance Data Exchange Agreement
Traffic Management Center Owner Transportation Information Center Owner Information Provision Agreement
Traffic Management Center Owner Transportation Information Center User Service Usage Agreement
Traffic Management Center Supplier Traffic Management Center Owner Warranty
Transit Management Center Maintainer Transit Management Center Maintains
Transit Management Center Manager Transit Management Center Manages
Transit Management Center Owner TIC Operator Application Usage Agreement
Transit Management Center Owner Transit Management Center Maintainer System Maintenance Agreement
Transit Management Center Owner Transit Management Center Manager Operations Agreement
Transit Management Center Owner Transportation Information Center Maintainer Maintenance Data Exchange Agreement
Transit Management Center Owner Transportation Information Center Owner Information Provision Agreement
Transit Management Center Owner Transportation Information Center User Service Usage Agreement
Transit Management Center Supplier Transit Management Center Owner Warranty
Transportation Information Center Maintainer Transportation Information Center Maintains
Transportation Information Center Manager TIC Operator System Usage Agreement
Transportation Information Center Manager Transportation Information Center Manages
Transportation Information Center Owner Connected Vehicle Roadside Equipment Maintainer Maintenance Data Exchange Agreement
Transportation Information Center Owner Connected Vehicle Roadside Equipment Owner Information Provision Agreement
Transportation Information Center Owner Connected Vehicle Roadside Equipment User Service Usage Agreement
Transportation Information Center Owner Driver Application Usage Agreement
Transportation Information Center Owner Media Maintainer Maintenance Data Exchange Agreement
Transportation Information Center Owner Media Owner Information Provision Agreement
Transportation Information Center Owner Media User Service Usage Agreement
Transportation Information Center Owner Other Transportation Information Centers Maintainer Maintenance Data Exchange Agreement
Transportation Information Center Owner Other Transportation Information Centers Owner Information Exchange Agreement
Transportation Information Center Owner Other Transportation Information Centers User Service Usage Agreement
Transportation Information Center Owner Personal Information Device Maintainer Maintenance Data Exchange Agreement
Transportation Information Center Owner Personal Information Device Owner Information Provision Agreement
Transportation Information Center Owner Personal Information Device User Service Usage Agreement
Transportation Information Center Owner Transportation Information Center Maintainer System Maintenance Agreement
Transportation Information Center Owner Transportation Information Center Manager Operations Agreement
Transportation Information Center Owner Traveler Application Usage Agreement
Transportation Information Center Owner Traveler Support Equipment Maintainer Maintenance Data Exchange Agreement
Transportation Information Center Owner Traveler Support Equipment Owner Information Provision Agreement
Transportation Information Center Owner Traveler Support Equipment User Service Usage Agreement
Transportation Information Center Owner Vehicle Maintainer Maintenance Data Exchange Agreement
Transportation Information Center Owner Vehicle Owner Information Provision Agreement
Transportation Information Center Owner Vehicle User Service Usage Agreement
Transportation Information Center Supplier Transportation Information Center Owner Warranty
Traveler Personal Information Device Operates
Traveler Traveler Support Equipment Operates
Traveler Support Equipment Maintainer Traveler Support Equipment Maintains
Traveler Support Equipment Manager Traveler System Usage Agreement
Traveler Support Equipment Manager Traveler Support Equipment Manages
Traveler Support Equipment Owner Traveler Support Equipment Maintainer System Maintenance Agreement
Traveler Support Equipment Owner Traveler Support Equipment Manager Operations Agreement
Traveler Support Equipment Supplier Traveler Support Equipment Owner Warranty
Vehicle Maintainer Vehicle Maintains
Vehicle Manager Driver System Usage Agreement
Vehicle Manager Vehicle Manages
Vehicle Owner Vehicle Maintainer System Maintenance Agreement
Vehicle Owner Vehicle Manager Operations Agreement
Vehicle Supplier Vehicle Owner Warranty
Weather Service System Maintainer Weather Service System Maintains
Weather Service System Manager Weather Service System Manages
Weather Service System Owner TIC Operator Application Usage Agreement
Weather Service System Owner Transportation Information Center Maintainer Maintenance Data Exchange Agreement
Weather Service System Owner Transportation Information Center Owner Information Provision Agreement
Weather Service System Owner Transportation Information Center User Service Usage Agreement
Weather Service System Owner Weather Service System Maintainer System Maintenance Agreement
Weather Service System Owner Weather Service System Manager Operations Agreement
Weather Service System Supplier Weather Service System Owner Warranty

Functional

This service package includes the following Functional View PSpecs:

Physical Object Functional Object PSpec Number PSpec Name
Connected Vehicle Roadside Equipment RSE Traveler Information Communications 1.1.1.6 Collect Vehicle Roadside Safety Data
1.1.2.6 Process Collected Vehicle Safety Data
1.2.7.4 Process In-vehicle Signage Data
1.2.7.7 Process Vehicle Safety and Environmental Data for Output
1.5.10 Collect Vehicle Emissions Messages
2.8.4.6 Exchange Border Clearance Roadside Information
6.7.3.3 Provide Short Range Traveler Information
9.2.3.8 Collect Connected Vehicle Field Equipment Status
9.3.3.5 Manage Speeds at Roadside
Personal Information Device Personal Traveler Information Reception 6.8.3.2 Provide Traveler with Personal Travel Information
Transportation Information Center TIC Connected Vehicle Traveler Info Distribution 6.2.4 Collect Multimodal Data
6.5.1 Provide Broadcast Data Interface
6.5.2 Provide Interactive Data Interface
6.5.7 Provide Operator Interface for Traveler Information Parameters
6.5.8 Provide Operational Data for Other Centers
TIC Data Collection 6.2.1 Collect Misc Traveler Information
6.2.2 Collect Traffic Data
6.2.3 Collect Transit Operations Data
6.2.4 Collect Multimodal Data
6.2.5 Collect Situation and Sensor Data From Vehicles
6.2.6 Collect Emergency Traveler Data
6.5.4 Process Travel Services Provider Data
6.6.2.3 Provide Route Segment Data for Other Areas
7.4.2 Collect Price Data for Traveler Information Use
TIC Traveler Information Broadcast 6.2.2 Collect Traffic Data
6.5.1 Provide Broadcast Data Interface
6.5.7 Provide Operator Interface for Traveler Information Parameters
Traveler Support Equipment Traveler Information Reception 6.3.2 Provide Public Traveler Interface
6.3.3 Update Traveler Display Map Data at Kiosk
Vehicle Vehicle Traveler Information Reception 3.1.3 Process Vehicle On-board Data
3.1.4 Communicate with Remote Vehicles
3.2.3.3 Process Data for Vehicle Actuators
6.7.1.3 Process Vehicle Location Data
6.7.1.4 Update Vehicle Navigable Map Database
6.7.3.1 Provide Driver with Personal Travel Information
6.7.3.2 Provide Driver Information Interface

Physical

The physical diagram can be viewed in SVG or PNG format and the current format is SVG.
SVG Diagram
PNG Diagram


Display Legend in SVG or PNG

Includes Physical Objects:

Physical Object Class Description
Border Inspection System Field 'Border Inspection System' represents data systems used at the border for the inspection of people or goods. It supports immigration, customs (trade), agricultural, and FDA inspections as applicable. It includes sensors and surveillance systems to identify and classify drivers and their cargo as they approach a border crossing, the systems used to interface with the back-office administration systems and provide information on status of the crossing or events.
Connected Vehicle Roadside Equipment Field 'Connected Vehicle Roadside Equipment' (CV RSE) represents the Connected Vehicle roadside devices that are used to send messages to, and receive messages from, nearby vehicles using Dedicated Short Range Communications (DSRC) or other alternative wireless communications technologies. Communications with adjacent field equipment and back office centers that monitor and control the RSE are also supported. This device operates from a fixed position and may be permanently deployed or a portable device that is located temporarily in the vicinity of a traffic incident, road construction, or a special event. It includes a processor, data storage, and communications capabilities that support secure communications with passing vehicles, other field equipment, and centers.
Driver Vehicle The 'Driver' represents the person that operates a vehicle on the roadway. Included are operators of private, transit, commercial, and emergency vehicles where the interactions are not particular to the type of vehicle (e.g., interactions supporting vehicle safety applications). The Driver originates driver requests and receives driver information that reflects the interactions which might be useful to all drivers, regardless of vehicle classification. Information and interactions which are unique to drivers of a specific vehicle type (e.g., fleet interactions with transit, commercial, or emergency vehicle drivers) are covered by separate objects.
Emergency Management Center Center The 'Emergency Management Center' represents systems that support incident management, disaster response and evacuation, security monitoring, and other security and public safety-oriented ITS applications. It includes the functions associated with fixed and mobile public safety communications centers including public safety call taker and dispatch centers operated by police (including transit police), fire, and emergency medical services. It includes the functions associated with Emergency Operations Centers that are activated at local, regional, state, and federal levels for emergencies and the portable and transportable systems that support Incident Command System operations at an incident. This Center also represents systems associated with towing and recovery, freeway service patrols, HAZMAT response teams, and mayday service providers.

It manages sensor and surveillance equipment used to enhance transportation security of the roadway infrastructure (including bridges, tunnels, interchanges, and other key roadway segments) and the public transportation system (including transit vehicles, public areas such as transit stops and stations, facilities such as transit yards, and transit infrastructure such as rail, bridges, tunnels, or bus guideways). It provides security/surveillance services to improve traveler security in public areas not a part of the public transportation system.

It monitors alerts, advisories, and other threat information and prepares for and responds to identified emergencies. It coordinates emergency response involving multiple agencies with peer centers. It stores, coordinates, and utilizes emergency response and evacuation plans to facilitate this coordinated response. Emergency situation information including damage assessments, response status, evacuation information, and resource information are shared The Emergency Management Center also provides a focal point for coordination of the emergency and evacuation information that is provided to the traveling public, including wide-area alerts when immediate public notification is warranted.

It tracks and manages emergency vehicle fleets using real-time road network status and routing information from the other centers to aid in selecting the emergency vehicle(s) and routes, and works with other relevant centers to tailor traffic control to support emergency vehicle ingress and egress, implementation of special traffic restrictions and closures, evacuation traffic control plans, and other special strategies that adapt the transportation system to better meet the unique demands of an emergency.
Emissions Management Center Center The 'Emissions Management Center' provides the capabilities for air quality managers to monitor and manage air quality. These capabilities include collecting emissions data from distributed emissions sensors (included in ITS Roadway Equipment) and directly from connected vehicles. The sensors monitor general air quality and also monitor the emissions of individual vehicles on the roadway. The measures are collected, processed, and used to support environmental monitoring applications.
Event Promoter System Center 'Event Promoter System' represents Special Event Sponsors that have knowledge of events that may impact travel on roadways or other modal means. Examples of special event sponsors include sporting events, conventions, motorcades/parades, and public/political events. These promoters interface to the ITS to provide event information such as date, time, estimated duration, location, and any other information pertinent to traffic movement in the surrounding area.
Maint and Constr Management Center Center The 'Maint and Constr Management Center' monitors and manages roadway infrastructure construction and maintenance activities. Representing both public agencies and private contractors that provide these functions, this physical object manages fleets of maintenance, construction, or special service vehicles (e.g., snow and ice control equipment). The physical object receives a wide range of status information from these vehicles and performs vehicle dispatch, routing, and resource management for the vehicle fleets and associated equipment. The physical object participates in incident response by deploying maintenance and construction resources to an incident scene, in coordination with other center physical objects. The physical object manages equipment at the roadside, including environmental sensors and automated systems that monitor and mitigate adverse road and surface weather conditions. It manages the repair and maintenance of both non-ITS and ITS equipment including the traffic controllers, detectors, dynamic message signs, signals, and other equipment associated with the roadway infrastructure. Weather information is collected and fused with other data sources and used to support advanced decision support systems.

The physical object remotely monitors and manages ITS capabilities in work zones, gathering, storing, and disseminating work zone information to other systems. It manages traffic in the vicinity of the work zone and advises drivers of work zone status (either directly at the roadside or through an interface with the Transportation Information Center or Traffic Management Center physical objects.)

Construction and maintenance activities are tracked and coordinated with other systems, improving the quality and accuracy of information available regarding closures and other roadway construction and maintenance activities.
Media Center 'Media' represents the information systems that provide traffic reports, travel conditions, and other transportation-related news services to the traveling public through radio, TV, and other media. Traffic and travel advisory information that are collected by ITS are provided to this object. It is also a source for traffic flow information, incident and special event information, and other events that may have implications for the transportation system.
Other Transportation Information Centers Center Representing another Transportation Information Center, this object is intended to provide a source and destination for ITS information flows between peer information and service provider functions. It enables cooperative information sharing between providers as conditions warrant.
Parking Management Center Center The 'Parking Management Center' manages one or more parking lots by providing configuration and control of field infrastructure, user account management and interfaces with financial systems to manage payment. This p-object takes the back office portion of the Parking Management System's functionality as it was defined in ARC-IT 8.3 and prior.
Payment Administration Center Center The 'Payment Administration Center' provides general payment administration capabilities and supports the electronic transfer of funds from the customer to the transportation system operator or other service provider. Charges can be recorded for tolls, vehicle-mileage charging, congestion charging, or other goods and services. It supports traveler enrollment and collection of both pre-payment and post-payment transportation fees in coordination with the financial infrastructure supporting electronic payment transactions. The system may establish and administer escrow accounts depending on the clearinghouse scheme and the type of payments involved. It may post a transaction to the customer account, generate a bill (for post-payment accounts), debit an escrow account, or interface to a financial infrastructure to debit a customer designated account. It supports communications with the ITS Roadway Payment Equipment to support fee collection operations. As an alternative, a wide-area wireless interface can be used to communicate directly with vehicle equipment. It also sets and administers the pricing structures and may implement road pricing policies in coordination with the Traffic Management Center.
Personal Information Device Personal The 'Personal Information Device' provides the capability for travelers to receive formatted traveler information wherever they are. Capabilities include traveler information, trip planning, and route guidance. Frequently a smart phone, the Personal Information Device provides travelers with the capability to receive route planning and other personally focused transportation services from the infrastructure in the field, at home, at work, or while en-route. Personal Information Devices may operate independently or may be linked with vehicle on-board equipment. This subsystem also supports safety related services with the capability to broadcast safety messages and initiate a distress signal or request for help.
Surface Transportation Weather Service Center The 'Surface Transportation Weather Service' represents the providers of value-added sector-specific meteorological services. These providers utilize National Weather Service data and predictions, road condition information and local environmental data provided by traffic management or maintenance organizations, and their own models to provide surface transportation related weather observations and forecasts including pavement temperature and conditions.
TIC Operator Center This 'TIC Operator' represents the person or people that monitor and manage traveler information services provided by the Transportation Information Center.
Traffic Management Center Center The 'Traffic Management Center' monitors and controls traffic and the road network. It represents centers that manage a broad range of transportation facilities including freeway systems, rural and suburban highway systems, and urban and suburban traffic control systems. It communicates with ITS Roadway Equipment and Connected Vehicle Roadside Equipment (RSE) to monitor and manage traffic flow and monitor the condition of the roadway, surrounding environmental conditions, and field equipment status. It manages traffic and transportation resources to support allied agencies in responding to, and recovering from, incidents ranging from minor traffic incidents through major disasters.
Transit Management Center Center The 'Transit Management Center' manages transit vehicle fleets and coordinates with other modes and transportation services. It provides operations, maintenance, customer information, planning and management functions for the transit property. It spans distinct central dispatch and garage management systems and supports the spectrum of fixed route, flexible route, paratransit services, transit rail, and bus rapid transit (BRT) service. The physical object's interfaces support communication between transit departments and with other operating entities such as emergency response services and traffic management systems.
Transportation Information Center Center The 'Transportation Information Center' collects, processes, stores, and disseminates transportation information to system operators and the traveling public. The physical object can play several different roles in an integrated ITS. In one role, the TIC provides a data collection, fusing, and repackaging function, collecting information from transportation system operators and redistributing this information to other system operators in the region and other TICs. In this information redistribution role, the TIC provides a bridge between the various transportation systems that produce the information and the other TICs and their subscribers that use the information. The second role of a TIC is focused on delivery of traveler information to subscribers and the public at large. Information provided includes basic advisories, traffic and road conditions, transit schedule information, yellow pages information, ride matching information, and parking information. The TIC is commonly implemented as a website or a web-based application service, but it represents any traveler information distribution service.
Traveler Personal The 'Traveler' represents any individual who uses transportation services. The interfaces to the traveler provide general pre-trip and en-route information supporting trip planning, personal guidance, and requests for assistance in an emergency that are relevant to all transportation system users. It also represents users of a public transportation system and addresses interfaces these users have within a transit vehicle or at transit facilities such as roadside stops and transit centers.
Traveler Support Equipment Field 'Traveler Support Equipment' provides access to traveler information at transit stations, transit stops, other fixed sites along travel routes (e.g., rest stops, merchant locations), and major trip generation locations such as special event centers, hotels, office complexes, amusement parks, and theaters. Traveler information access points include kiosks and informational displays supporting varied levels of interaction and information access. At transit stops this might be simple displays providing schedule information and imminent arrival signals. This may be extended to include multi-modal information including traffic conditions and transit schedules to support mode and route selection at major trip generation sites. Personalized route planning and route guidance information can also be provided based on criteria supplied by the traveler. It also supports service enrollment and electronic payment of transit fares. In addition to the traveler information provision, it also enhances security in public areas by supporting traveler activated silent alarms.
Vehicle Vehicle This 'Vehicle' physical object is used to model core capabilities that are common to more than one type of Vehicle. It provides the vehicle-based general sensory, processing, storage, and communications functions that support efficient, safe, and convenient travel. Many of these capabilities (e.g., see the Vehicle Safety service packages) apply to all vehicle types including personal vehicles, commercial vehicles, emergency vehicles, transit vehicles, and maintenance vehicles. From this perspective, the Vehicle includes the common interfaces and functions that apply to all motorized vehicles. The radio(s) supporting V2V and V2I communications are a key component of the Vehicle. Both one-way and two-way communications options support a spectrum of information services from basic broadcast to advanced personalized information services. Advanced sensors, processors, enhanced driver interfaces, and actuators complement the driver information services so that, in addition to making informed mode and route selections, the driver travels these routes in a safer and more consistent manner. This physical object supports all six levels of driving automation as defined in SAE J3016. Initial collision avoidance functions provide 'vigilant co-pilot' driver warning capabilities. More advanced functions assume limited control of the vehicle to maintain lane position and safe headways. In the most advanced implementations, this Physical Object supports full automation of all aspects of the driving task, aided by communications with other vehicles in the vicinity and in coordination with supporting infrastructure subsystems.
Weather Service System Center The 'Weather Service System' provides weather, hydrologic, and climate information and warnings of hazardous weather including thunderstorms, flooding, hurricanes, tornadoes, winter weather, tsunamis, and climate events. It provides atmospheric weather observations and forecasts that are collected and derived by the National Weather Service, private sector providers, and various research organizations. The interface provides formatted weather data products suitable for on-line processing and integration with other ITS data products as well as Doppler radar images, satellite images, severe storm warnings, and other products that are formatted for presentation to various ITS users.

Includes Functional Objects:

Functional Object Description Physical Object
Personal Traveler Information Reception 'Personal Traveler Information Reception' receives formatted traffic advisories, road conditions, traffic regulations, transit information, broadcast alerts, and other general traveler information broadcasts and presents the information to the traveler. The traveler information broadcasts are received by personal devices including personal computers and personal portable devices such as smart phones. Personal Information Device
RSE Traveler Information Communications 'RSE Traveler Information Communications' includes field elements that distribute information to vehicles for in-vehicle display. The information may be provided by a center (e.g., variable information on traffic and road conditions in the vicinity of the field equipment) or it may be determined and output locally (e.g., static sign information and signal phase and timing information). This includes the interface to the center or field equipment that controls the information distribution and the short range communications equipment that provides information to passing vehicles. Connected Vehicle Roadside Equipment
TIC Connected Vehicle Traveler Info Distribution In support of connected vehicle applications, 'TIC Connected Vehicle Traveler Info Distribution' disseminates traveler information including traffic and road conditions, incident information, maintenance and construction information, event information, transit information, parking information, and weather information. Location-specific or situation-relevant traveler information is sent to short range communications transceivers at the roadside. Transportation Information Center
TIC Data Collection 'TIC Data Collection' collects transportation-related data from other centers, performs data quality checks on the collected data and then consolidates, verifies, and refines the data and makes it available in a consistent format to applications that support operational data sharing between centers and deliver traveler information to end-users. A broad range of data is collected including traffic and road conditions, transit data, emergency information and advisories, weather data, special event information, traveler services, parking, multimodal data, and toll/pricing data. It also shares data with other transportation information centers. Transportation Information Center
TIC Traveler Information Broadcast 'TIC Traveler Information Broadcast' disseminates traveler information including traffic and road conditions, incident information, maintenance and construction information, event information, transit information, parking information, and weather information. The same information is broadcast to all equipped traveler interface systems and vehicles. Transportation Information Center
Traveler Information Reception 'Traveler Information Reception' receives formatted traffic advisories, road conditions, transit information, broadcast alerts, and other general traveler information broadcasts and presents the information to the traveler with a public traveler interface. It includes the receiver and public display device such as a large display monitor or other public display. Traveler Support Equipment
Vehicle Traveler Information Reception 'Vehicle Traveler Information Reception' receives advisories, vehicle signage data, and other driver information of use to all types of vehicles and drivers and presents this information to the driver using in-vehicle equipment. Information presented may include fixed sign information, traffic control device status (e.g., signal phase and timing data), advisory and detour information, warnings of adverse road and weather conditions, travel times, and other driver information. Vehicle

Includes Information Flows:

Information Flow Description
air quality information Aggregated region-wide measured air quality data and possible pollution incident information.
alternate mode information Schedule information for alternate mode transportation providers such as air, ferry, and passenger-carrying heavy rail. This also includes details of incidents and other service disruptions that have occurred in the alternative mode. This also includes measures of service demand that supports assessment of their impact on the road network.
border crossing status information Port of entry status including current wait-times, lane configuration and status including closures and restrictions, and notification of incidents at the border
broadcast traveler information General traveler information that contains traffic and road conditions, link travel times, incidents, advisories, restrictions, vehicle requirements, work zones, transit service information, weather information, parking information, and other related traveler information.
current infrastructure restrictions Restrictions levied on transportation asset usage based on infrastructure design, surveys, tests, or analyses. This includes standard facility design height, width, and weight restrictions, special restrictions such as spring weight restrictions, and temporary facility restrictions that are imposed during maintenance and construction.
driver input Driver input to the vehicle on-board equipment including configuration data, settings and preferences, interactive requests, and control commands.
driver updates Information provided to the driver including visual displays, audible information and warnings, and haptic feedback. The updates inform the driver about current conditions, potential hazards, and the current status of vehicle on-board equipment.
event information Special event information for travelers. This would include a broader array of information than the similar "event plans" that conveys only information necessary to support traffic management for the event.
incident information for public Report of current desensitized incident information prepared for public dissemination.
local traveler information Traveler information including traffic, road, and weather conditions for a particular locality. This flow includes the location-specific traveler information and time effectivity of the information.
maint and constr work plans Future construction and maintenance work schedules and activities including anticipated closures with anticipated impact to the roadway, alternate routes, anticipated delays, closure times, and durations.
parking information General parking information and status, including current parking availability, parking pricing, and parking space availability information, including features like number and type of electric charging spots.
qualified environmental conditions data Current road conditions (e.g., surface temperature, subsurface temperature, moisture, icing, treatment status) and surface weather conditions (e.g., air temperature, wind speed, precipitation, visibility) that has had quality checks performed on it and has been formatted and consolidated by the Clarus system. Attributes relating to the data collection (and aggregation) are also included.
road network conditions Current and forecasted traffic information, road and weather conditions, and other road network status. Either raw data, processed data, or some combination of both may be provided by this flow. Information on diversions and alternate routes, closures, and special traffic restrictions (lane/shoulder use, weight restrictions, width restrictions, HOV requirements) in effect is included.
roadway maintenance status Summary of maintenance fleet operations affecting the road network. This includes the status of winter maintenance (snow plow schedule and current status).
TIC operations information presentation Presentation of information to the TIC Operator including current operational status, parameters for broadcast information settings, route selection controls, and travel optimization algorithms.
TIC operator input User input from the TIC system operator including requests to monitor current system operation and inputs to affect system operation including tuning and performance enhancement parameters to traveler information algorithms.
toll data Current toll schedules for different types of vehicles as well as advanced toll payment information.
traffic control information Represents the flow of traffic control and status information between centers. This is reporting only, not actual control. This specifically includes the current state of any demand management strategies that have been implemented.
traffic image meta data Meta data that describes traffic images. Traffic images (video) are in another flow.
traffic images High fidelity, real-time traffic images suitable for surveillance monitoring by the operator or for use in machine vision applications. This flow includes the images. Meta data that describes the images is contained in another flow.
transit and fare schedules Transit service information including routes, schedules, and fare information. This also includes on-demand service information.
transit incident information Information on transit incidents that impact transit services for public dissemination.
transit schedule adherence information Dynamic transit schedule adherence and transit vehicle location information.
transit service information Transit service information including routes, schedules, and fare information as well as dynamic transit schedule adherence and transit vehicle location information.
transportation weather information Current and forecast road conditions and weather information (e.g., surface condition, flooding, wind advisories, visibility, etc.) associated with the transportation network. This information is of a resolution, timeliness, and accuracy to be useful in transportation decision making.
traveler information application info Traveler information and associated parameters, filters, and thresholds that control the RSE's distribution of the traveler information to passing vehicles. This flow also supports remote control of the application so the application can be taken offline, reset, or restarted.
traveler information application status Application status reported by the RSE. This includes current operational state and status of the RSE and a record of traveler information distribution.
traveler information for media General traveler information regarding incidents, unusual traffic conditions, transit issues, or other advisory information that has been desensitized and provided to the media.
traveler input User input from a traveler to summon assistance, request travel information, make a reservation, or request any other traveler service.
traveler interface updates Visual or audio information (e.g., routes, messages, guidance, emergency information) that is provided to the traveler.
weather information Accumulated forecasted and current weather data (e.g., temperature, pressure, wind speed, wind direction, humidity, precipitation, visibility, light conditions, etc.).
work zone information Summary of maintenance and construction work zone activities affecting the road network including the nature of the maintenance or construction activity, location, impact to the roadway, expected time(s) and duration of impact, anticipated delays, alternate routes, and suggested speed limits. This information may be augmented with images that provide a visual indication of current work zone status and traffic impacts.

Goals and Objectives

Associated Planning Factors and Goals

Planning Factor Goal
A. Support the economic vitality of the metropolitan area, especially by enabling global competitiveness, productivity, and efficiency; Improve freight network
B. Increase the safety of the transportation system for motorized and nonmotorized users; Reduce fatalities and injuries
D. Increase the accessibility and mobility of people and for freight; Reduce congestion
E. Protect and enhance the environment, promote energy conservation, improve the quality of life, and promote consistency between transportation improvements and State and local planned growth and economic development patterns; Protect/Enhance the Environment
F. Enhance the integration and connectivity of the transportation system, across and between modes, for people and freight; Enhance integration and connectivity
G. Promote efficient system management and operation; Improve efficiency
I. Improve the resiliency and reliability of the transportation system and reduce or mitigate stormwater impacts of surface transportation; Improve resiliency and reliability
J. Enhance travel and tourism. Support travel and tourism

Associated Objective Categories

Objective Category
Arterial Management: Reliability
Emergency/Incident Management: Person Hours of Delay
Emergency/Incident Management: Traveler Information
Freeway Management: Efficiency
Freeway Management: Reliability
Special Event Management: Entry/Exit Travel Times
Special Event Management: Traveler Information
System Efficiency: Cost of Congestion
System Efficiency: Delay
System Efficiency: Energy Consumption
System Efficiency: Intensity of Congestion (Travel Time Index)
System Options: Transit Use
System Reliability: Non-Recurring Delay
System Reliability: Planning Time Index
System Reliability: Travel Time 90th/95th Percentile
System Reliability: Travel Time Buffer Index
System Reliability: Variability
Travel Weather Management: Disseminating Information
Traveler Information: Customer Satisfaction
Traveler Information: Information Dissemination
Work Zone Management: Traveler Information

Associated Objectives and Performance Measures

Objective Performance Measure
Decrease the average buffer index for (multiple routes or trips) by X percent over Y years. The buffer index represents the extra time (buffer) most travelers add to their average travel time when planning trips. This is the extra time between the average travel time and near-worst case travel time (95th percentile). The buffer index is stated as a percentage of the average travel time. Average buffer index or buffer time can be calculated using miles traveled as a weighting factor. Buffer time = 95th percentile travel time (min) – average travel time (min).
Decrease the buffer index for (specific travel routes) by X percent over the next Y years. The buffer index represents the extra time (buffer) most travelers add to their average travel time when planning trips. This is the extra time between the average travel time and near-worst case travel time (95th percentile). The buffer index is stated as a percentage of the average travel time. Average buffer index or buffer time can be calculated using miles traveled as a weighting factor. Buffer time = 95th percentile travel time (min) – average travel time (min).
Increase average transit load factor by X percent by year Y. Number of riders on various transit units per trip at peak travel times.
Increase customer satisfaction rating of the timeliness, accuracy, and usefulness of traveler information in the region by W, X, and Z percent, respectively, over Y years. Customer satisfaction ratings of timeliness, accuracy, and usefulness of traveler information.
Increase number of repeat visitors to traveler information website (or 511 system) by X percent in Y years. Number of repeat visitors to traveler information website (or 511 system).
Increase number of users of notifications for traveler information (e.g., e-mail, text message) by X percent in Y years. Number of users of notifications for traveler information (e.g., e-mail, text message) per year.
Increase number of visitors to traveler information website per year by X percent in Y years. Number of visitors to traveler information website per year.
Increase passenger miles traveled per capita on transit by X percent by year Y. Number of passenger miles traveled per capita.
Increase the accuracy and completeness of traveler information posted (on variable message signs, websites, and/or web 2.0 technologies) by reducing the number of incomplete and inaccurate reports by X percent in Y years. Number of complaints received from system users about inaccurate or missing information.
Increase the methods of effectively disseminating special event information to travelers by X percent in Y years (e.g., media releases, highway advisory radio, dynamic message signs, commercial AM and FM radio). Number of effective methods to disseminate special event information to travelers.
Increase the percentage of planned special events (with attendance above Z) with information on anticipated and actual travel conditions being disseminated to the traveling public at least X hours prior to the event. Percent of special events with expected attendance over Z that traveler information is disseminated at least X hours prior to the event.
Increase transit mode share by X percent by year Y during peak periods. Percent of all peak-period trips made by transit.
Increase transit mode share by X percent by year Y. Percent of all trips made by transit.
Provide traveler information regarding work zones using variable message signs (VMS), 511, traveler information websites, and/or Web 2.0 technologies for at least X percent of work zones on major arterials, freeways, and transit routes over the next Y years. Percent of work zones on major arterials, freeways, and transit routes for which traveler information is available via variable message signs (VMS), 511, traveler information websites, and/or Web 2.0 technologies.
Provide travelers with information on multimodal alternatives to avoid work zones for at least X percent of work zones on major arterials, freeways, and transit routes over the next Y years. Percent of work zones on major arterials, freeways, and transit routes for which information on multimodal alternatives to avoid work zones is available to travelers.
Provide work zone information (for upcoming and ongoing construction projects) to all impacted businesses or tenants of business centers with X employees or more by year Y. Number of impacted businesses or tenants of business centers of X employees or more receiving work zone information (for upcoming and ongoing construction projects).
Reduce average travel time into and out of the event by X percent in Y years. Average travel time away from selected special events to a set of locations over a year.
Reduce average travel time into and out of the event by X percent in Y years. Average travel time to selected special events from a set of locations in the area over a year.
Reduce buffer index on arterials during peak and off-peak periods by X percent in Y years. The buffer index (represents the extra time (buffer) travelers add to their average travel time when planning trips in order to arrive on-time 95 percent of the time).
Reduce buffer index on the freeway system during peak and off-peak periods by X percent in Y years. The buffer index (represents the extra time (buffer) travelers add to their average travel time when planning trips in order to arrive on-time 95 percent of the time).
Reduce buffer time index for travelers to multiple similar special events by X percent in Y years. Buffer time index for travelers to multiple similar special events.
Reduce delay associated with incidents on arterials by X percent by year Y. Hours of delay associated with incidents.
Reduce delay associated with incidents on the freeway system by X percent by year Y. Hours of delay associated with incidents.
Reduce excess fuel consumed due to congestion by X percent by year Y. Excess fuel consumed (total or per capita).
Reduce hours of delay per capita by X percent by year Y. Hours of delay (person-hours).
Reduce hours of delay per capita by X percent by year Y. Hours of delay per capita.
Reduce hours of delay per driver by X percent by year Y. Hours of delay (person-hours).
Reduce hours of delay per driver by X percent by year Y. Hours of delay per driver.
Reduce non-special event VMT in the event area during events by X percent in Y years. Non-special event VMT in the event area during events over a year.
Reduce the 90th (or 95th) percentile travel times for each route selected by X percent over Y years. 95th or 90th percentile travel times for selected routes.
Reduce the annual monetary cost of congestion per capita for the next X years. Cost (in dollars) of congestion or delay per capita.
Reduce the average buffer time needed to arrive on-time for 95 percent of trips on (specified routes) by X minutes over Y years. The buffer index represents the extra time (buffer) most travelers add to their average travel time when planning trips. This is the extra time between the average travel time and near-worst case travel time (95th percentile). The buffer index is stated as a percentage of the average travel time. Average buffer index or buffer time can be calculated using miles traveled as a weighting factor. Buffer time = 95th percentile travel time (min) – average travel time (min).
Reduce the average of the 90th (or 95th) percentile travel times for (a group of specific travel routes or trips in the region) by X minutes in Y years. 95th or 90th percentile travel times for selected routes.
Reduce the average planning time for (specific routes in region) by X minutes over the next Y years. The planning time index represents the time that must be added to travel time at free-flow speeds or the posted speed limit to ensure on time arrivals for 95 percent of the trips. Planning time = 95th percentile travel time (minutes) – Travel time at free-flow speed or posted speed limit. Average planning time index or planning time can be computed using a weighted average over person miles traveled.
Reduce the average planning time index for (specific routes in region) by X (no units) over the next Y years. The planning time index represents the time that must be added to travel time at free-flow speeds or the posted speed limit to ensure on time arrivals for 95 percent of the trips. Planning time = 95th percentile travel time (minutes) – Travel time at free-flow speed or posted speed limit. Average planning time index or planning time can be computed using a weighted average over person miles traveled.
Reduce the number of person hours (or vehicle hours) of delay experienced by travelers on the freeway system. Hours of delay (vehicle-hours or person-hours).
Reduce the number of person hours (or vehicle hours) of delay experienced by travelers on the freeway system. Hours of delay per capita or driver.
Reduce the person hours (or vehicle hours) of total delay associated with traffic incidents by X percent over Y years. Person hours (or vehicle hours) of delay associated with traffic incidents.
Reduce the regional average travel time index by X percent per year. Travel time index (the average travel time during the peak period, using congested speeds, divided by the off-peak period travel time, using posted or free-flow speeds).
Reduce the share of freeway miles at Level of Service (LOS) X by Y by year Z. Miles at LOS X or V/C > 1.0 (or other threshold).
Reduce the variability of travel time on specified routes by X percent during peak and off-peak periods by year Y. Variance of travel time. Variance is the sum of the squared deviations from the mean. This can also be calculated as the standard deviation of travel time. Standard deviation is the square root of variance.
Reduce time between incident/emergency verification and posting a traveler alert to traveler information outlets (e.g., variable message signs, agency website, 511 system) by X minutes in Y years. Time to alert motorists of an incident/emergency.
Reduce time to alert travelers of travel weather impacts (using variable message signs, 511, road weather information systems, public information broadcasts, the agency's website, Web 2.0 technologies, etc.) by X (time period or percent) in Y years. Time from beginning of weather event to posting of traveler information on (variable message signs, 511, Road Weather Information Systems, public information broadcasts etc.).
Reduce time to alert travelers of travel weather impacts (using variable message signs, 511, road weather information systems, public information broadcasts, the agency's website, Web 2.0 technologies, etc.) by X (time period or percent) in Y years. Time from beginning of weather event to posting of traveler information on agency website.
Reduce total energy consumption per capita for transportation by X percent by year Y. Total energy consumed per capita for transportation.
Reduce total fuel consumption per capita for transportation by X percent by year Y. Total fuel consumed per capita for transportation.
Reduce total person hours of delay (or travel-time delay per capita) by time period (peak, off-peak) caused by all transient events such as traffic incidents, special events, and work zones. Total person hours of delay during scheduled and/or unscheduled disruptions to travel.
Reduce total person hours of delay (or travel-time delay per capita) by time period (peak, off-peak) caused by scheduled events, work zones, or system maintenance by x hours in y years. Travel time delay during scheduled and/or unscheduled disruptions to travel.
Reduce total person hours of delay (or travel-time delay per capita) by time period (peak, off-peak) caused by unscheduled disruptions to travel. Total person hours of delay during scheduled and/or unscheduled disruptions to travel.



Since the mapping between objectives and service packages is not always straight-forward and often situation-dependent, these mappings should only be used as a starting point. Users should do their own analysis to identify the best service packages for their region.

Needs and Requirements

Need Functional Object Requirement
01 Traveler Information needs to be able to collect timely, accurate, and reliable traffic, transit, and other road conditions data from multiple sources in order to broadcast the latest conditions affecting travelers. TIC Connected Vehicle Traveler Info Distribution 01 The center shall collect traveler information for distribution including traffic and road conditions, incident information, maintenance and construction information, event information, transit information, parking information, and weather information.
TIC Data Collection 01 The center shall collect, process, and store traffic and highway condition information, including incident information, detours and road closures, event information, recommended routes, and current speeds on specific routes.
03 The center shall collect, process, and store maintenance and construction information, including scheduled maintenance and construction work activities and work zone activities.
04 The center shall collect, process, and store transit routes and schedules, transit transfer options, transit fares, and real-time schedule adherence information.
05 The center shall collect, process, and store parking information, including location, availability, and fees.
06 The center shall collect, process, and store toll fee information.
07 The center shall collect, process, and store current and forecast road conditions and surface weather conditions.
08 The center shall collect, process, and store event information.
09 The center shall collect, process, and store air quality information.
02 Traveler Information needs to be able to inform as much of the traveling public as possible using any available broadcast media to increase mobility and safety through better information. RSE Traveler Information Communications 01 The field element shall distribute traveler information including traffic and road conditions or upcoming work zones to passing vehicles using short range communications, under center control.
04 The field element shall return system operational status to the controlling center.
TIC Connected Vehicle Traveler Info Distribution 02 The center shall distribute location relevant traveler information to short range communications equipment at the roadside.
03 The center shall provide the capability for a system operator to monitor connected vehicle system operation and control the type and update frequency of traveler information that is distributed.
TIC Traveler Information Broadcast 01 The center shall disseminate traffic and highway condition information to travelers, including incident information, detours and road closures, event information, recommended routes, and current speeds on specific routes.
02 The center shall disseminate maintenance and construction information to travelers, including scheduled maintenance and construction work activities and work zone activities.
03 The center shall disseminate transit routes and schedules, transit transfer options, transit fares, and real-time schedule adherence information to travelers.
04 The center shall disseminate parking information to travelers, including location, availability, and fees.
05 The center shall disseminate toll fee information to travelers.
06 The center shall disseminate weather information to travelers.
07 The center shall disseminate event information to travelers.
08 The center shall disseminate air quality information to travelers.
09 The center shall provide traffic and incident data to the media.
10 The center shall provide the capability for a system operator to control the type and update frequency of broadcast traveler information.
03 Travelers need access to timely, accurate, and reliable traffic, transit, and other travel conditions in order to make informed decisions about their travel. Personal Traveler Information Reception 01 The personal traveler interface shall receive traffic information from a center and present it to the traveler.
02 The personal traveler interface shall receive transit information from a center and present it to the traveler.
03 The personal traveler interface shall receive event information from a center and present it to the traveler.
06 The personal traveler interface shall provide broadcast traveler information in audio or manual form.
07 The personal traveler interface shall present information to the traveler in audible or visual forms, consistent with a personal device.
Traveler Information Reception 01 The public interface for travelers shall receive traffic information from a center and present it to the traveler.
02 The public interface for travelers shall receive transit information from a center and present it to the traveler.
03 The public interface for travelers shall receive event information from a center and present it to the traveler.
06 The public interface for travelers shall provide the capability for digitized map data to act as the background to the information presented to the traveler.
07 The public interface for travelers shall support traveler input in audio or manual form.
08 The public interface for travelers shall present information to the traveler in audible or visual forms consistent with a kiosk, including those that are suitable for travelers with hearing or vision physical disabilities.
09 The public interface for travelers shall store frequently requested displayed data.
Vehicle Traveler Information Reception 01 The vehicle shall receive traveler information including traffic and road conditions, incident information, maintenance and construction information, event information, transit information, parking information, and weather information.
05 The vehicle shall present the received information to the driver in audible or visual forms without impairing the driver's ability to control the vehicle in a safe manner.
22 The vehicle shall receive formatted traffic information from a center and present it to the driver.
23 The vehicle shall receive transit information from a center and present it to the driver.
24 The vehicle shall receive event information from a center and present it to the driver.

Related Sources

Document Name Version Publication Date
ITS User Services Document 1/1/2005
Dynamic Eco-Lanes: Operational Concept Final v1.1 8/1/2012
Vision and Operational Concept for Enabling Advanced Traveler Information Services (Enable ATIS) Final 5/13/2012


Security

In order to participate in this service package, each physical object should meet or exceed the following security levels.

Physical Object Security
Physical Object Confidentiality Integrity Availability Security Class
Border Inspection System Low Moderate Low Class 1
Connected Vehicle Roadside Equipment Moderate Moderate Low Class 2
Emergency Management Center Low Moderate Moderate Class 1
Emissions Management Center Not Applicable Moderate Low Class 1
Event Promoter System Moderate High Moderate Class 3
Light Vehicle OBE Not Applicable Low Low Class 1
Maint and Constr Management Center Low High High Class 5
Media Low Low Moderate Class 1
Other Transportation Information Centers Moderate Moderate Moderate Class 2
Parking Management Center Moderate Moderate Moderate Class 2
Payment Administration Center Low Moderate Low Class 1
Personal Information Device Not Applicable Low Low Class 1
Surface Transportation Weather Service Low Moderate Moderate Class 1
Traffic Management Center Low Moderate Moderate Class 1
Transit Management Center Low Moderate Moderate Class 1
Transportation Information Center Moderate Moderate High Class 5
Traveler Support Equipment Not Applicable Low Low Class 1
Weather Service System Low Moderate Moderate Class 1



In order to participate in this service package, each information flow triple should meet or exceed the following security levels.

Information Flow Security
Source Destination Information Flow Confidentiality Integrity Availability
Basis Basis Basis
Border Inspection System Transportation Information Center border crossing status information Low Moderate Low
This is all public information which is mostly available through public information channels. Some minimal guarantee of data integrity is necessary for all C-ITS flows. A flaw in this information will not cause much, if any harm. A higher integrity will allow this information to be of more use, but is not required for security reasons. DISC: Original V2I analysis classified this as LOW. Without this information there will not be any direct problem. A higher availability will allow this information to be more useful; however it is not a requirement.
Connected Vehicle Roadside Equipment Personal Information Device local traveler information Not Applicable Moderate Low
This data is intentionally transmitted to everyone via a broadcast. It can also be determined via other visual indicators. Some minimal guarantee of data integrity is necessary for all C-ITS flows. Flaws in this information will have a minimal effect on systems receiving it. All of the information can be verified through other means, and in a worst case scenario will only cause slightly increased traffic in the general proximity of the RSE. All of the information provided through this flow will be available from other sources and no systems will directly rely upon it.
Connected Vehicle Roadside Equipment Transportation Information Center traveler information application status Moderate Moderate Low
This information could be of interest to a malicious individual who is attempting to determine the best way to accomplish a crime. As such it would be best to not make it easily accessible. If this is compromised, it could send unnecessary maintenance workers, or cause the appearance of excessive traffic violations, leading to further unnecessary investigation. A delay in reporting this may cause a delay in necessary maintenance, but (a) this is not time-critical and (b) there are other channels for reporting malfunctioning. Additionally, there is a message received notification, which means that RSE can ensure that all intersection safety issues are delivered.
Connected Vehicle Roadside Equipment Vehicle local traveler information Not Applicable Moderate Low
This data is intentionally transmitted to everyone via a broadcast. It can also be determined via other visual indicators. Some minimal guarantee of data integrity is necessary for all C-ITS flows. Flaws in this information will have a minimal effect on systems receiving it. All of the information can be verified through other means, and in a worst case scenario will only cause slightly increased traffic in the general proximity of the RSE. DISC: Original V2I analysis classified this as LOW. All of the information provided through this flow will be available from other sources and no systems will directly rely upon it.
Driver Vehicle driver input Moderate High High
Data included in this flow may include origin and destination information, which should be protected from other's viewing as it may compromise the driver's privacy. Commands from from the driver to the vehicle must be correct or the vehicle may behave in an unpredictable and possibly unsafe manner Commands must always be able to be given or the driver has no control.
Emergency Management Center Transportation Information Center incident information for public Low Moderate Moderate
Generally, center-originating flows destined for a TIC don't contain any personal or confidential information, and are eventually intended for some kind of public consumption. Minor discrepancies in this data should not have a catastrophic effect, but it should be reasonably controlled and accurate. A few missed messages should not have a significant effect. However, most messages should make it through and the EMC should be able to know if the TIC has received a message.
Emissions Management Center Transportation Information Center air quality information Not Applicable Moderate Low
This flow does not contain any personal or confidential information, and the data contained is eventually intended for public consumption. Information for general distribution should have at least some guarantee that it was correctly transmitted. If this information were incorrect, people could be exposed to higher levels of pollution than they would intend, which could be harmful to people with medical conditions such as asthma. Not a key flow for any service package. If an application is developed that relies on this flow, may change to MODERATE.
Event Promoter System Transportation Information Center event information Moderate High Moderate
Confirmation flow should match the ratings of the flow providing information in the first place. Confirmation flow should match the ratings of the flow providing information in the first place. Confirmation flow should match the ratings of the flow providing information in the first place.
Maint and Constr Management Center Transportation Information Center current infrastructure restrictions Low High High
Generally, center-originating flows destined for a TIC don't contain any personal or confidential information, and are eventually intended for some kind of public consumption. If incorrect or unavailable this could result in a vehicle being somewhere it should not be due to infrastructure restrictions, which could have an impact on the infrastruture and the vehicle, including potential incidents (consider a large vehicle with narrow or height-restricted roadway). If incorrect or unavailable this could result in a vehicle being somewhere it should not be due to infrastructure restrictions, which could have an impact on the infrastruture and the vehicle, including potential incidents (consider a large vehicle with narrow or height-restricted roadway).
Maint and Constr Management Center Transportation Information Center maint and constr work plans Low High High
This data is eventually intended for public dissemination, and is also shared with many centers. If incorrect or unavailable this could result in a vehicle being somewhere it should not be due to work zone impacts, which could have an impact on the infrastruture and the vehicle, including potential incidents (consider a large vehicle with narrow or height-restricted roadway). If incorrect or unavailable this could result in a vehicle being somewhere it should not be due to work zone impacts, which could have an impact on the infrastruture and the vehicle, including potential incidents (consider a large vehicle with narrow or height-restricted roadway).
Maint and Constr Management Center Transportation Information Center roadway maintenance status Low Moderate Moderate
Roadway maintenance status data is distributed to a host of places including travelers, so there is no justification for obfuscation. Road maintenance data is generally distributed to travelers through a TIC, so this needs to be accurate and available so that travelers can make appropriate decisions. Inappropriate decisions may significantly affect traffic and individual travel experiences. Road maintenance data is generally distributed to travelers through a TIC, so this needs to be accurate and available so that travelers can make appropriate decisions. Inappropriate decisions may significantly affect traffic and individual travel experiences.
Maint and Constr Management Center Transportation Information Center work zone information Low Moderate Moderate
Eventually intended for public distribution, so no need to obfuscate. Information needs to be timely and correct so that appropriate actions are taken on the part of the receiver. Trip plans, corresponding maintenance actions, transit and emergency vehicle routes, etc.; DISC: WYO believes this to be HIGH. Information needs to be timely and correct so that appropriate actions are taken on the part of the receiver. Trip plans, corresponding maintenance actions, transit and emergency vehicle routes, etc.
Other Transportation Information Centers Transportation Information Center alternate mode information Low Moderate Low
Generally, center-originating flows destined for a TIC don't contain any personal or confidential information, and are eventually intended for some kind of public consumption. Generally transportation coordination information should be correct between source and destination, or inappropriate actions may be taken. While useful, there is little impact if this flow is not available.
Other Transportation Information Centers Transportation Information Center incident information for public Low Moderate Moderate
Generally, center-originating flows destined for a TIC don't contain any personal or confidential information, and are eventually intended for some kind of public consumption. Publicly shared data about planned incidents should be accurate and delivered in timely fashion so as to enable end users to react appropriately; otherwise, signficant mobility challenges may result. Publicly shared data about planned incidents should be accurate and delivered in timely fashion so as to enable end users to react appropriately; otherwise, signficant mobility challenges may result.
Other Transportation Information Centers Transportation Information Center parking information Moderate Moderate Moderate
Does not include PII, but does include usage information for a managed facility that implies a number of vehicles. While this is observable information, it could be considered competitive, and regardless is accessible without being physically present, which is its own barrier. Generally transportation coordination information should be correct between source and destination, or inappropriate actions may be taken. Most likely not a frequently updated flow. Typically MODERATE for applications with a high degree of commercial vehicle parking, but could be LOW otherwise.
Other Transportation Information Centers Transportation Information Center road network conditions Low Moderate Moderate
No harm should come from seeing this data, as it is eventually intended for public consumption. While accuracy of this data is important for decision making purposes, applications should be able to corroborate the data in many instances. Thus MODERATE generally. Depends on the application; if mobility decisions that affect large numbers of travelers are made based on this data, then it is MODERATE. In more modest circumstances, it may be LOW.
Other Transportation Information Centers Transportation Information Center traffic image meta data Low Moderate Moderate
Traffic image data is generally intended for public consumption, and in any event is already video captured in the public arena, so this must be LOW. While accuracy of this data is important for decision making purposes, applications should be able to cfunction without it. Thus MODERATE generally. While accuracy of this data is important for decision making purposes, applications should be able to function without it. Thus MODERATE generally.
Other Transportation Information Centers Transportation Information Center traffic images Low Moderate Low
Traffic image data is generally intended for public consumption, and in any event is already video captured in the public arena, so this must be LOW. Generally transportation coordination information should be correct between source and destination, or inappropriate actions may be taken. While useful, there is no signficant impact if this flow is not available.
Other Transportation Information Centers Transportation Information Center transit service information Low Moderate Low
Generally, center-originating flows destined for a TIC don't contain any personal or confidential information, and are eventually intended for some kind of public consumption. Generally transportation coordination information should be correct between source and destination, or inappropriate actions may be taken. While useful, there is no signficant impact if this flow is not available.
Parking Management Center Transportation Information Center parking information Moderate Moderate Moderate
Does not include PII, but does include usage information for a managed facility that implies a number of vehicles. While this is observable information, it could be considered competitive, and regardless is accessible without being physically present, which is its own barrier. Generally transportation coordination information should be correct between source and destination, or inappropriate actions may be taken. Most likely not a frequently updated flow. Typically MODERATE for applications with a high degree of commercial vehicle parking, but could be LOW otherwise.
Payment Administration Center Transportation Information Center toll data Low Moderate Low
Should be public information, little benefit to obscuring this information. Since actors may use this information to plan their travels, it must be correct. Corruption or manipulation of this data may lead them to make suboptimal decisions, costing time and/or money. This flow probably does not update often. The information within is distributed via many routes.
Personal Information Device Traveler traveler interface updates Not Applicable Moderate Moderate
Personalized data that includes directions and guidance for an individual, but eventually evident anyway. Should be accurate as the Traveler will be relying on this information for routing and related choices. Lack of accuracy will result in lack of confidence from the traveler as well as an unsatisfactory trip, leading to a negative feedback spiral. Users expect their devices to work. If information is not presented to the operator, the relevant applications simply won't be used.
Surface Transportation Weather Service Transportation Information Center transportation weather information Low Moderate Moderate
Typically intended for public distribution. There are several mechanisms by which weather information gets to a traveler, though given that the TIC may be performing some data fusion and providing value-added information, this data should be exchanged with some protection on its contents. There are several mechanisms by which weather information gets to a traveler, though given that the TIC may be performing some data fusion and providing value-added information, this data should be exchanged with some protection on its contents.
TIC Operator Transportation Information Center TIC operator input Moderate High High
Backoffice operations flows should have minimal protection from casual viewing, as otherwise imposters could gain illicit control or information that should not be generally available. Backoffice operations flows should generally be correct and available as these are the primary interface between operators and system. Backoffice operations flows should generally be correct and available as these are the primary interface between operators and system.
Traffic Management Center Transportation Information Center incident information for public Low Moderate Moderate
Generally, center-originating flows destined for a TIC don't contain any personal or confidential information, and are eventually intended for some kind of public consumption. Incident information will be used to make routing and other travel decisions. Corrupted information may have a significant impac t on travel plans and/or road network conditions. Significant numbers of travelers serve as end users for the information in this flow; lack of availability has a significant effect on their travel decisions.
Traffic Management Center Transportation Information Center road network conditions Low Moderate Moderate
No harm should come from seeing this data, as it is eventually intended for public consumption. While accuracy of this data is important for decision making purposes, applications should be able to corroborate the data in many instances. Thus MODERATE generally. Depends on the application; if mobility decisions that affect large numbers of travelers are made based on this data, then it is MODERATE. In more modest circumstances, it may be LOW.
Traffic Management Center Transportation Information Center traffic control information Low Moderate Moderate
Generally, center-originating flows destined for a TIC don't contain any personal or confidential information, and are eventually intended for some kind of public consumption. While accuracy of this data is important for decision making purposes, applications should be able to cfunction without it. Thus MODERATE generally. While accuracy of this data is important for decision making purposes, applications should be able to cfunction without it. Thus MODERATE generally.
Traffic Management Center Transportation Information Center traffic image meta data Low Moderate Moderate
Traffic image data is generally intended for public consumption, and in any event is already video captured in the public arena, so this must be LOW. While accuracy of this data is important for decision making purposes, applications should be able to cfunction without it. Thus MODERATE generally. While accuracy of this data is important for decision making purposes, applications should be able to function without it. Thus MODERATE generally.
Traffic Management Center Transportation Information Center traffic images Low Moderate Moderate
Intended for widespread and public distribution, so no reason to conceal. While accuracy of this data is important for decision making purposes, applications should be able to cfunction without it. Thus MODERATE generally. While availability of imagery is useful for decision making purposes, applications should be able to cfunction without it. Thus MODERATE generally, though it could be LOW.
Transit Management Center Transportation Information Center transit and fare schedules Low Moderate Moderate
Generally, center-originating flows destined for a TIC don't contain any personal or confidential information, and are eventually intended for some kind of public consumption. While accuracy of this data is important for decision making purposes, the greatest impact if manipulated or incorrect data would be financial and likely limited in scope. For example, making all options appear less expensive than an attacker's route of fiduciary interest, driving revenue to his route. This is undesireable and significant, but not catastrophic. Thus MODERATE generally. While accuracy of this data is important for decision making purposes, applications should be able to function without frequent updates. Thus MODERATE generally, though it could be LOW depending on the level of projected updates.
Transit Management Center Transportation Information Center transit incident information Low Moderate Moderate
Generally, center-originating flows destined for a TIC don't contain any personal or confidential information, and are eventually intended for some kind of public consumption. While accuracy of this data is important for decision making purposes, applications should be able to cfunction without it. Thus MODERATE generally. While availability of this data is important for decision making purposes, applications should be able to function without it. Thus MODERATE generally.
Transit Management Center Transportation Information Center transit schedule adherence information Low Moderate Moderate
Eventually intended for public consumption, so no need to obfuscate. While accuracy of this data is important for decision making purposes, applications should be able to function without it. Thus MODERATE generally. While accuracy of this data is important for decision making purposes, applications should be able to cfunction without it. Thus MODERATE generally.
Transportation Information Center Connected Vehicle Roadside Equipment traveler information application info Moderate Moderate Low
This information could be of interest to a malicious individual who is attempting to determine the best way to accomplish a crime. As such it would be best to not make it easily accessible. If this is compromised, it could send unnecessary maintenance workers, or cause the appearance of excessive traffic violations, leading to further unnecessary investigation. A delay in reporting this may cause a delay in necessary maintenance, but (a) this is not time-critical and (b) there are other channels for reporting malfunctioning. Additionally, there is a message received notification, which means that RSE can ensure that all intersection safety issues are delivered.
Transportation Information Center Media traveler information for media Low Moderate Moderate
This information is intended for distribution to all members of the traveling public. Traffic information needs to be accurate, as it will be used by travelers to make decisions regarding their travel. Inaccurate or corrupted data could reduce overall mobility and certainly impact individual drivers. There should be other means for getting this information, but as this is the 'source flow' for a wide area broadcast with a huge potential distribution, the breadth of the impact covers all travelers.
Transportation Information Center Other Transportation Information Centers alternate mode information Low Moderate Low
Generally, center-originating flows destined for a TIC don't contain any personal or confidential information, and are eventually intended for some kind of public consumption. Generally transportation coordination information should be correct between source and destination, or inappropriate actions may be taken. While useful, there is little impact if this flow is not available.
Transportation Information Center Other Transportation Information Centers incident information for public Low Moderate Moderate
Generally, center-originating flows destined for a TIC don't contain any personal or confidential information, and are eventually intended for some kind of public consumption. Publicly shared data about planned incidents should be accurate and delivered in timely fashion so as to enable end users to react appropriately; otherwise, signficant mobility challenges may result. Publicly shared data about planned incidents should be accurate and delivered in timely fashion so as to enable end users to react appropriately; otherwise, signficant mobility challenges may result.
Transportation Information Center Other Transportation Information Centers parking information Moderate Moderate Moderate
Does not include PII, but does include usage information for a managed facility that implies a number of vehicles. While this is observable information, it could be considered competitive, and regardless is accessible without being physically present, which is its own barrier. Generally transportation coordination information should be correct between source and destination, or inappropriate actions may be taken. While useful, there is no signficant impact if this flow is not available.
Transportation Information Center Other Transportation Information Centers road network conditions Low Moderate Moderate
No harm should come from seeing this data, as it is eventually intended for public consumption. While accuracy of this data is important for decision making purposes, applications should be able to corroborate the data in many instances. Thus MODERATE generally. condition info should be timely and readily available so that TMCs are aware of current traffic info, conditions, restrictions, etc. but should not have severe/catastrophic consequences if not
Transportation Information Center Other Transportation Information Centers traffic image meta data Low Moderate Moderate
Traffic image data is generally intended for public consumption, and in any event is already video captured in the public arena, so this must be LOW. While accuracy of this data is important for decision making purposes, applications should be able to cfunction without it. Thus MODERATE generally. While accuracy of this data is important for decision making purposes, applications should be able to function without it. Thus MODERATE generally.
Transportation Information Center Other Transportation Information Centers traffic images Low Moderate Low
Traffic image data is generally intended for public consumption, and in any event is already video captured in the public arena, so this must be LOW. Generally transportation coordination information should be correct between source and destination, or inappropriate actions may be taken. While useful, there is no signficant impact if this flow is not available.
Transportation Information Center Other Transportation Information Centers transit service information Low Moderate Low
Generally, center-originating flows destined for a TIC don't contain any personal or confidential information, and are eventually intended for some kind of public consumption. Generally transportation coordination information should be correct between source and destination, or inappropriate actions may be taken. While useful, there is no signficant impact if this flow is not available.
Transportation Information Center Personal Information Device broadcast traveler information Not Applicable Moderate Low
By definition this is publicly broadcast data. The distribution of this data is intended to be very large, as such the impact of corrupted data will be significant. Probably not HIGH, as there are other distribution channels for this data. There are multiple channels for the delivery of this information, so if this one is not available, others will work.
Transportation Information Center TIC Operator TIC operations information presentation Moderate High High
Backoffice operations flows should have minimal protection from casual viewing, as otherwise imposters could gain illicit control or information that should not be generally available. Backoffice operations flows should generally be correct and available as these are the primary interface between operators and system. Backoffice operations flows should generally be correct and available as these are the primary interface between operators and system.
Transportation Information Center Traveler Support Equipment broadcast traveler information Not Applicable Moderate Low
By definition this is publicly broadcast data. The distribution of this data is intended to be very large, as such the impact of corrupted data will be significant. Probably not HIGH, as there are other distribution channels for this data. There are multiple channels for the delivery of this information, so if this one is not available, others will work.
Transportation Information Center Vehicle broadcast traveler information Not Applicable Moderate Moderate
By definition this is publicly broadcast data. The distribution of this data is intended to be very large, as such the impact of corrupted data will be significant. Probably not HIGH, as there are other distribution channels for this data. There are multiple channels for the delivery of this information, so if this one is not available, others will work. DISC: WYO suggests this is LOW.
Traveler Personal Information Device traveler input Not Applicable Moderate Low
This data is informing the vehicle of operational information that is relevant to the operation of the vehicle. It should not contain anything sensitive, and does not matter if another person can observe it. While public, information must be correct or travelers may make incorrect decisions with regard to their travel plans. Information is available through other means, though depending on the location this might not always be the case, in which case this would be MODERATE.
Traveler Traveler Support Equipment traveler input Not Applicable Moderate Low
Publicly available information, while not directly observable, is intended for widespread distribution While public, information must be correct or travelers may make incorrect decisions with regard to their travel plans. Information is available through other means, though depending on the location this might not always be the case, in which case this would be MODERATE.
Traveler Support Equipment Traveler traveler interface updates Not Applicable Moderate Moderate
Publicly available information, while not directly observable, is intended for widespread distribution Should be accurate as the Traveler will be relying on this information for routing and related choices. Lack of accuracy will result in lack of confidence from the traveler as well as an unsatisfactory trip, leading to a negative feedback spiral. Users expect their devices to work. If information is not presented to the operator, the relevant applications simply won't be used.
Vehicle Driver driver updates Not Applicable Moderate Moderate
This data is informing the driver about the safety of a nearby area. It should not contain anything sensitive, and does not matter if another person can observe it. This is the information that is presented to the driver. If they receive incorrect information, they may act in an unsafe manner. However, there are other indicators that would alert them to any hazards, such as an oncoming vehicle or crossing safety lights. If this information is not made available to the driver, then the system has not operated correctly.
Weather Service System Transportation Information Center qualified environmental conditions data Low Moderate Low
If this data were exposed there would be little to no harm, except that the exposure was not authorized and the sender had no knowledge of downstream data usage. That alone is difficult to judge as 'serious harm' so left at LOW. Since the point of this particular flow is to provide data that is already quality checked, corruption of this data would have a significant negative impact on the users of this data. This flow is used to help guide traveler actions. There should be other compensating flows and sources of this type of information if this one is not available, which justifies LOW.
Weather Service System Transportation Information Center weather information Low Moderate Moderate
WYO believes this should be LOW or MODERATE depending on the application. While there are many sources of weather information, some guarantee of correctness is justifiable to keep confidence in provided service. There should be other sources of this data. It does need to be reliable however; weather can change quickly, and depending on the destination and its operational strategies, timely response may be important.

Standards

The following table lists the standards associated with physical objects in this service package. For standards related to interfaces, see the specific information flow triple pages.

Name Title Physical Object
CTI 4001 RSU Dedicated Short-Range Communications Roadside Unit Specifications (FHWA-JPO-17-589) Connected Vehicle Roadside Equipment




System Requirements

System Requirement Need
001 The system shall collect traveler information for distribution including traffic and road conditions, incident information, maintenance and construction information, event information, transit information, parking information, and weather information. 01 Traveler Information needs to be able to collect timely, accurate, and reliable traffic, transit, and other road conditions data from multiple sources in order to broadcast the latest conditions affecting travelers.
002 The system shall distribute location relevant traveler information to short range communications equipment at the roadside. 02 Traveler Information needs to be able to inform as much of the traveling public as possible using any available broadcast media to increase mobility and safety through better information.
003 The system shall provide the capability for a system operator to monitor connected vehicle system operation and control the type and update frequency of traveler information that is distributed. 02 Traveler Information needs to be able to inform as much of the traveling public as possible using any available broadcast media to increase mobility and safety through better information.
004 The system shall collect, process, and store traffic and highway condition information, including incident information, detours and road closures, event information, recommended routes, and current speeds on specific routes. 01 Traveler Information needs to be able to collect timely, accurate, and reliable traffic, transit, and other road conditions data from multiple sources in order to broadcast the latest conditions affecting travelers.
005 The system shall collect, process, and store maintenance and construction information, including scheduled maintenance and construction work activities and work zone activities. 01 Traveler Information needs to be able to collect timely, accurate, and reliable traffic, transit, and other road conditions data from multiple sources in order to broadcast the latest conditions affecting travelers.
006 The system shall collect, process, and store transit routes and schedules, transit transfer options, transit fares, and real-time schedule adherence information. 01 Traveler Information needs to be able to collect timely, accurate, and reliable traffic, transit, and other road conditions data from multiple sources in order to broadcast the latest conditions affecting travelers.
007 The system shall collect, process, and store parking information, including location, availability, and fees. 01 Traveler Information needs to be able to collect timely, accurate, and reliable traffic, transit, and other road conditions data from multiple sources in order to broadcast the latest conditions affecting travelers.
008 The system shall collect, process, and store toll fee information. 01 Traveler Information needs to be able to collect timely, accurate, and reliable traffic, transit, and other road conditions data from multiple sources in order to broadcast the latest conditions affecting travelers.
009 The system shall collect, process, and store current and forecast road conditions and surface weather conditions. 01 Traveler Information needs to be able to collect timely, accurate, and reliable traffic, transit, and other road conditions data from multiple sources in order to broadcast the latest conditions affecting travelers.
010 The system shall collect, process, and store event information. 01 Traveler Information needs to be able to collect timely, accurate, and reliable traffic, transit, and other road conditions data from multiple sources in order to broadcast the latest conditions affecting travelers.
011 The system shall collect, process, and store air quality information. 01 Traveler Information needs to be able to collect timely, accurate, and reliable traffic, transit, and other road conditions data from multiple sources in order to broadcast the latest conditions affecting travelers.
012 The system shall disseminate traffic and highway condition information to travelers, including incident information, detours and road closures, event information, recommended routes, and current speeds on specific routes. 02 Traveler Information needs to be able to inform as much of the traveling public as possible using any available broadcast media to increase mobility and safety through better information.
013 The system shall disseminate maintenance and construction information to travelers, including scheduled maintenance and construction work activities and work zone activities. 02 Traveler Information needs to be able to inform as much of the traveling public as possible using any available broadcast media to increase mobility and safety through better information.
014 The system shall disseminate transit routes and schedules, transit transfer options, transit fares, and real-time schedule adherence information to travelers. 02 Traveler Information needs to be able to inform as much of the traveling public as possible using any available broadcast media to increase mobility and safety through better information.
015 The system shall disseminate parking information to travelers, including location, availability, and fees. 02 Traveler Information needs to be able to inform as much of the traveling public as possible using any available broadcast media to increase mobility and safety through better information.
016 The system shall disseminate toll fee information to travelers. 02 Traveler Information needs to be able to inform as much of the traveling public as possible using any available broadcast media to increase mobility and safety through better information.
017 The system shall disseminate weather information to travelers. 02 Traveler Information needs to be able to inform as much of the traveling public as possible using any available broadcast media to increase mobility and safety through better information.
018 The system shall disseminate event information to travelers. 02 Traveler Information needs to be able to inform as much of the traveling public as possible using any available broadcast media to increase mobility and safety through better information.
019 The system shall disseminate air quality information to travelers. 02 Traveler Information needs to be able to inform as much of the traveling public as possible using any available broadcast media to increase mobility and safety through better information.
020 The system shall provide traffic and incident data to the media. 02 Traveler Information needs to be able to inform as much of the traveling public as possible using any available broadcast media to increase mobility and safety through better information.
021 The system shall provide the capability for a system operator to control the type and update frequency of broadcast traveler information. 02 Traveler Information needs to be able to inform as much of the traveling public as possible using any available broadcast media to increase mobility and safety through better information.
022 The system shall distribute traveler information including traffic and road conditions or upcoming work zones to passing vehicles using short range communications, under center control. 02 Traveler Information needs to be able to inform as much of the traveling public as possible using any available broadcast media to increase mobility and safety through better information.
023 The system shall return system operational status to the controlling center. 02 Traveler Information needs to be able to inform as much of the traveling public as possible using any available broadcast media to increase mobility and safety through better information.
024 The system shall receive traffic information from a center and present it to the traveler. 03 Travelers need access to timely, accurate, and reliable traffic, transit, and other travel conditions in order to make informed decisions about their travel.
025 The system shall receive transit information from a center and present it to the traveler. 03 Travelers need access to timely, accurate, and reliable traffic, transit, and other travel conditions in order to make informed decisions about their travel.
026 The system shall receive event information from a center and present it to the traveler. 03 Travelers need access to timely, accurate, and reliable traffic, transit, and other travel conditions in order to make informed decisions about their travel.
027 The system shall provide the capability for digitized map data to act as the background to the information presented to the traveler. 03 Travelers need access to timely, accurate, and reliable traffic, transit, and other travel conditions in order to make informed decisions about their travel.
028 The system shall support traveler input in audio or manual form. 03 Travelers need access to timely, accurate, and reliable traffic, transit, and other travel conditions in order to make informed decisions about their travel.
029 The system shall present information to the traveler in audible or visual forms consistent with a kiosk, including those that are suitable for travelers with hearing or vision physical disabilities. 03 Travelers need access to timely, accurate, and reliable traffic, transit, and other travel conditions in order to make informed decisions about their travel.
030 The system shall store frequently requested displayed data. 03 Travelers need access to timely, accurate, and reliable traffic, transit, and other travel conditions in order to make informed decisions about their travel.
031 The system shall provide broadcast traveler information in audio or manual form. 03 Travelers need access to timely, accurate, and reliable traffic, transit, and other travel conditions in order to make informed decisions about their travel.
032 The system shall present information to the traveler in audible or visual forms, consistent with a personal device. 03 Travelers need access to timely, accurate, and reliable traffic, transit, and other travel conditions in order to make informed decisions about their travel.
033 The system shall receive traveler information including traffic and road conditions, incident information, maintenance and construction information, event information, transit information, parking information, and weather information. 03 Travelers need access to timely, accurate, and reliable traffic, transit, and other travel conditions in order to make informed decisions about their travel.
034 The system shall present the received information to the driver in audible or visual forms without impairing the driver's ability to control the vehicle in a safe manner. 03 Travelers need access to timely, accurate, and reliable traffic, transit, and other travel conditions in order to make informed decisions about their travel.
035 The system shall receive formatted traffic information from a center and present it to the driver. 03 Travelers need access to timely, accurate, and reliable traffic, transit, and other travel conditions in order to make informed decisions about their travel.
036 The system shall receive transit information from a center and present it to the driver. 03 Travelers need access to timely, accurate, and reliable traffic, transit, and other travel conditions in order to make informed decisions about their travel.
037 The system shall receive event information from a center and present it to the driver. 03 Travelers need access to timely, accurate, and reliable traffic, transit, and other travel conditions in order to make informed decisions about their travel.
038 The system shall provide data from the vehicle itself to the driver. This vehicle data may include vehicle conditions, environmental conditions, safety or position warnings. 02 Traveler Information needs to be able to inform as much of the traveling public as possible using any available broadcast media to increase mobility and safety through better information.
039 The system shall prioritize safety and warning messages to supersede advisory and broadcast messages. 02 Traveler Information needs to be able to inform as much of the traveling public as possible using any available broadcast media to increase mobility and safety through better information.
040 The system shall support driver input in audio or manual form. 02 Traveler Information needs to be able to inform as much of the traveling public as possible using any available broadcast media to increase mobility and safety through better information.
041 The system shall present information to the driver in audible or visual forms without impairing the driver's ability to control the vehicle in a safe manner. 03 Travelers need access to timely, accurate, and reliable traffic, transit, and other travel conditions in order to make informed decisions about their travel.
042 The system shall receive traveler information from Connected Vehicle Roadside Equipment. 02 Traveler Information needs to be able to inform as much of the traveling public as possible using any available broadcast media to increase mobility and safety through better information.


Implementations



TI01.1 Wide Area Broadcast Implementation

Use wide area wireless communication to broadcast traveler information of general interest to all vehicles in a region.

Wide Area Broadcast Implementation Flows

Information FlowDescriptionInclusion Status
air quality information Aggregated region-wide measured air quality data and possible pollution incident information. At Least One
alternate mode information Schedule information for alternate mode transportation providers such as air, ferry, and passenger-carrying heavy rail. This also includes details of incidents and other service disruptions that have occurred in the alternative mode. This also includes measures of service demand that supports assessment of their impact on the road network. Optional
alternate mode information Schedule information for alternate mode transportation providers such as air, ferry, and passenger-carrying heavy rail. This also includes details of incidents and other service disruptions that have occurred in the alternative mode. This also includes measures of service demand that supports assessment of their impact on the road network. At Least One
border crossing status information Port of entry status including current wait-times, lane configuration and status including closures and restrictions, and notification of incidents at the border At Least One
broadcast traveler information General traveler information that contains traffic and road conditions, link travel times, incidents, advisories, restrictions, vehicle requirements, work zones, transit service information, weather information, parking information, and other related traveler information. Fundamental
broadcast traveler information General traveler information that contains traffic and road conditions, link travel times, incidents, advisories, restrictions, vehicle requirements, work zones, transit service information, weather information, parking information, and other related traveler information. Optional
current infrastructure restrictions Restrictions levied on transportation asset usage based on infrastructure design, surveys, tests, or analyses. This includes standard facility design height, width, and weight restrictions, special restrictions such as spring weight restrictions, and temporary facility restrictions that are imposed during maintenance and construction. At Least One
driver input Driver input to the vehicle on-board equipment including configuration data, settings and preferences, interactive requests, and control commands. Optional
driver updates Information provided to the driver including visual displays, audible information and warnings, and haptic feedback. The updates inform the driver about current conditions, potential hazards, and the current status of vehicle on-board equipment. Optional
event information Special event information for travelers. This would include a broader array of information than the similar "event plans" that conveys only information necessary to support traffic management for the event. At Least One
incident information for public Report of current desensitized incident information prepared for public dissemination. Optional
incident information for public Report of current desensitized incident information prepared for public dissemination. At Least One
maint and constr work plans Future construction and maintenance work schedules and activities including anticipated closures with anticipated impact to the roadway, alternate routes, anticipated delays, closure times, and durations. At Least One
parking information General parking information and status, including current parking availability, parking pricing, and parking space availability information, including features like number and type of electric charging spots. Optional
parking information General parking information and status, including current parking availability, parking pricing, and parking space availability information, including features like number and type of electric charging spots. At Least One
qualified environmental conditions data Current road conditions (e.g., surface temperature, subsurface temperature, moisture, icing, treatment status) and surface weather conditions (e.g., air temperature, wind speed, precipitation, visibility) that has had quality checks performed on it and has been formatted and consolidated by the Clarus system. Attributes relating to the data collection (and aggregation) are also included. At Least One
road network conditions Current and forecasted traffic information, road and weather conditions, and other road network status. Either raw data, processed data, or some combination of both may be provided by this flow. Information on diversions and alternate routes, closures, and special traffic restrictions (lane/shoulder use, weight restrictions, width restrictions, HOV requirements) in effect is included. At Least One
road network conditions Current and forecasted traffic information, road and weather conditions, and other road network status. Either raw data, processed data, or some combination of both may be provided by this flow. Information on diversions and alternate routes, closures, and special traffic restrictions (lane/shoulder use, weight restrictions, width restrictions, HOV requirements) in effect is included. Optional
roadway maintenance status Summary of maintenance fleet operations affecting the road network. This includes the status of winter maintenance (snow plow schedule and current status). At Least One
TIC operations information presentation Presentation of information to the TIC Operator including current operational status, parameters for broadcast information settings, route selection controls, and travel optimization algorithms. Optional
TIC operator input User input from the TIC system operator including requests to monitor current system operation and inputs to affect system operation including tuning and performance enhancement parameters to traveler information algorithms. Optional
toll data Current toll schedules for different types of vehicles as well as advanced toll payment information. At Least One
traffic control information Represents the flow of traffic control and status information between centers. This is reporting only, not actual control. This specifically includes the current state of any demand management strategies that have been implemented. At Least One
traffic image meta data Meta data that describes traffic images. Traffic images (video) are in another flow. Optional
traffic images High fidelity, real-time traffic images suitable for surveillance monitoring by the operator or for use in machine vision applications. This flow includes the images. Meta data that describes the images is contained in another flow. Optional
traffic images High fidelity, real-time traffic images suitable for surveillance monitoring by the operator or for use in machine vision applications. This flow includes the images. Meta data that describes the images is contained in another flow. At Least One
transit and fare schedules Transit service information including routes, schedules, and fare information. This also includes on-demand service information. At Least One
transit incident information Information on transit incidents that impact transit services for public dissemination. At Least One
transit schedule adherence information Dynamic transit schedule adherence and transit vehicle location information. At Least One
transit service information Transit service information including routes, schedules, and fare information as well as dynamic transit schedule adherence and transit vehicle location information. At Least One
transit service information Transit service information including routes, schedules, and fare information as well as dynamic transit schedule adherence and transit vehicle location information. Optional
transportation weather information Current and forecast road conditions and weather information (e.g., surface condition, flooding, wind advisories, visibility, etc.) associated with the transportation network. This information is of a resolution, timeliness, and accuracy to be useful in transportation decision making. At Least One
traveler information for media General traveler information regarding incidents, unusual traffic conditions, transit issues, or other advisory information that has been desensitized and provided to the media. Optional
traveler input User input from a traveler to summon assistance, request travel information, make a reservation, or request any other traveler service. Optional
traveler interface updates Visual or audio information (e.g., routes, messages, guidance, emergency information) that is provided to the traveler. Optional
weather information Accumulated forecasted and current weather data (e.g., temperature, pressure, wind speed, wind direction, humidity, precipitation, visibility, light conditions, etc.). At Least One
work zone information Summary of maintenance and construction work zone activities affecting the road network including the nature of the maintenance or construction activity, location, impact to the roadway, expected time(s) and duration of impact, anticipated delays, alternate routes, and suggested speed limits. This information may be augmented with images that provide a visual indication of current work zone status and traffic impacts. At Least One


Wide Area Broadcast Implementation Functional Objects

Functional Object
Personal Traveler Information Reception
TIC Connected Vehicle Traveler Info Distribution
TIC Data Collection
TIC Traveler Information Broadcast
Traveler Information Reception
Vehicle Traveler Information Reception


Back to Implementation List

TI01.2 C-ITS Local Broadcast Implementation

Use short range communications to broadcast traveler information only within the local area where that information is relevant.

C-ITS Local Broadcast Implementation Flows

Information FlowDescriptionInclusion Status
air quality information Aggregated region-wide measured air quality data and possible pollution incident information. At Least One
alternate mode information Schedule information for alternate mode transportation providers such as air, ferry, and passenger-carrying heavy rail. This also includes details of incidents and other service disruptions that have occurred in the alternative mode. This also includes measures of service demand that supports assessment of their impact on the road network. At Least One
alternate mode information Schedule information for alternate mode transportation providers such as air, ferry, and passenger-carrying heavy rail. This also includes details of incidents and other service disruptions that have occurred in the alternative mode. This also includes measures of service demand that supports assessment of their impact on the road network. Optional
border crossing status information Port of entry status including current wait-times, lane configuration and status including closures and restrictions, and notification of incidents at the border At Least One
current infrastructure restrictions Restrictions levied on transportation asset usage based on infrastructure design, surveys, tests, or analyses. This includes standard facility design height, width, and weight restrictions, special restrictions such as spring weight restrictions, and temporary facility restrictions that are imposed during maintenance and construction. At Least One
driver input Driver input to the vehicle on-board equipment including configuration data, settings and preferences, interactive requests, and control commands. Optional
driver updates Information provided to the driver including visual displays, audible information and warnings, and haptic feedback. The updates inform the driver about current conditions, potential hazards, and the current status of vehicle on-board equipment. Optional
event information Special event information for travelers. This would include a broader array of information than the similar "event plans" that conveys only information necessary to support traffic management for the event. At Least One
incident information for public Report of current desensitized incident information prepared for public dissemination. Optional
incident information for public Report of current desensitized incident information prepared for public dissemination. At Least One
local traveler information Traveler information including traffic, road, and weather conditions for a particular locality. This flow includes the location-specific traveler information and time effectivity of the information. Optional
local traveler information Traveler information including traffic, road, and weather conditions for a particular locality. This flow includes the location-specific traveler information and time effectivity of the information. Fundamental
maint and constr work plans Future construction and maintenance work schedules and activities including anticipated closures with anticipated impact to the roadway, alternate routes, anticipated delays, closure times, and durations. At Least One
parking information General parking information and status, including current parking availability, parking pricing, and parking space availability information, including features like number and type of electric charging spots. Optional
parking information General parking information and status, including current parking availability, parking pricing, and parking space availability information, including features like number and type of electric charging spots. At Least One
qualified environmental conditions data Current road conditions (e.g., surface temperature, subsurface temperature, moisture, icing, treatment status) and surface weather conditions (e.g., air temperature, wind speed, precipitation, visibility) that has had quality checks performed on it and has been formatted and consolidated by the Clarus system. Attributes relating to the data collection (and aggregation) are also included. At Least One
road network conditions Current and forecasted traffic information, road and weather conditions, and other road network status. Either raw data, processed data, or some combination of both may be provided by this flow. Information on diversions and alternate routes, closures, and special traffic restrictions (lane/shoulder use, weight restrictions, width restrictions, HOV requirements) in effect is included. At Least One
road network conditions Current and forecasted traffic information, road and weather conditions, and other road network status. Either raw data, processed data, or some combination of both may be provided by this flow. Information on diversions and alternate routes, closures, and special traffic restrictions (lane/shoulder use, weight restrictions, width restrictions, HOV requirements) in effect is included. Optional
roadway maintenance status Summary of maintenance fleet operations affecting the road network. This includes the status of winter maintenance (snow plow schedule and current status). At Least One
TIC operations information presentation Presentation of information to the TIC Operator including current operational status, parameters for broadcast information settings, route selection controls, and travel optimization algorithms. Optional
TIC operator input User input from the TIC system operator including requests to monitor current system operation and inputs to affect system operation including tuning and performance enhancement parameters to traveler information algorithms. Optional
toll data Current toll schedules for different types of vehicles as well as advanced toll payment information. At Least One
traffic control information Represents the flow of traffic control and status information between centers. This is reporting only, not actual control. This specifically includes the current state of any demand management strategies that have been implemented. At Least One
traffic image meta data Meta data that describes traffic images. Traffic images (video) are in another flow. Optional
traffic images High fidelity, real-time traffic images suitable for surveillance monitoring by the operator or for use in machine vision applications. This flow includes the images. Meta data that describes the images is contained in another flow. At Least One
traffic images High fidelity, real-time traffic images suitable for surveillance monitoring by the operator or for use in machine vision applications. This flow includes the images. Meta data that describes the images is contained in another flow. Optional
transit and fare schedules Transit service information including routes, schedules, and fare information. This also includes on-demand service information. At Least One
transit incident information Information on transit incidents that impact transit services for public dissemination. At Least One
transit schedule adherence information Dynamic transit schedule adherence and transit vehicle location information. At Least One
transit service information Transit service information including routes, schedules, and fare information as well as dynamic transit schedule adherence and transit vehicle location information. Optional
transit service information Transit service information including routes, schedules, and fare information as well as dynamic transit schedule adherence and transit vehicle location information. At Least One
transportation weather information Current and forecast road conditions and weather information (e.g., surface condition, flooding, wind advisories, visibility, etc.) associated with the transportation network. This information is of a resolution, timeliness, and accuracy to be useful in transportation decision making. At Least One
traveler information application info Traveler information and associated parameters, filters, and thresholds that control the RSE's distribution of the traveler information to passing vehicles. This flow also supports remote control of the application so the application can be taken offline, reset, or restarted. Fundamental
traveler information application status Application status reported by the RSE. This includes current operational state and status of the RSE and a record of traveler information distribution. Fundamental
traveler information for media General traveler information regarding incidents, unusual traffic conditions, transit issues, or other advisory information that has been desensitized and provided to the media. Optional
traveler input User input from a traveler to summon assistance, request travel information, make a reservation, or request any other traveler service. Optional
traveler interface updates Visual or audio information (e.g., routes, messages, guidance, emergency information) that is provided to the traveler. Optional
weather information Accumulated forecasted and current weather data (e.g., temperature, pressure, wind speed, wind direction, humidity, precipitation, visibility, light conditions, etc.). At Least One
work zone information Summary of maintenance and construction work zone activities affecting the road network including the nature of the maintenance or construction activity, location, impact to the roadway, expected time(s) and duration of impact, anticipated delays, alternate routes, and suggested speed limits. This information may be augmented with images that provide a visual indication of current work zone status and traffic impacts. At Least One


C-ITS Local Broadcast Implementation Functional Objects

Functional Object
Personal Traveler Information Reception
RSE Traveler Information Communications
TIC Connected Vehicle Traveler Info Distribution
TIC Data Collection
TIC Traveler Information Broadcast
Vehicle Traveler Information Reception
