Kind: Terminator

Class: Center

Type: Other System

Other Transportation Information Centers

Overview

Representing another Transportation Information Center, this object is intended to provide a source and destination for ITS information flows between peer information and service provider functions. It enables cooperative information sharing between providers as conditions warrant.

This physical object does not have any functionality defined in ARC-IT, as it exists outside the system functional boundary.



This physical object is included in the following Service Packages:

Triples

Source Flow Destination
Other Transportation Information Centers alternate mode information Transportation Information Center
Other Transportation Information Centers electric charging information Transportation Information Center
Other Transportation Information Centers emergency traveler information Transportation Information Center
Other Transportation Information Centers incident information for public Transportation Information Center
Other Transportation Information Centers parking information Transportation Information Center
Other Transportation Information Centers road network conditions Transportation Information Center
Other Transportation Information Centers special vehicle alert Transportation Information Center
Other Transportation Information Centers traffic image meta data Transportation Information Center
Other Transportation Information Centers traffic images Transportation Information Center
Other Transportation Information Centers transit service information Transportation Information Center
Transportation Information Center alternate mode information Other Transportation Information Centers
Transportation Information Center electric charging information Other Transportation Information Centers
Transportation Information Center emergency traveler information Other Transportation Information Centers
Transportation Information Center incident information for public Other Transportation Information Centers
Transportation Information Center parking information Other Transportation Information Centers
Transportation Information Center road network conditions Other Transportation Information Centers
Transportation Information Center special vehicle alert Other Transportation Information Centers
Transportation Information Center traffic image meta data Other Transportation Information Centers
Transportation Information Center traffic images Other Transportation Information Centers
Transportation Information Center transit service information Other Transportation Information Centers

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class Confidentiality Integrity Availability Service Package
Class 3 Low High Moderate Disaster Traveler Information
Class 3 Moderate High Moderate Special Vehicle Alert
Class 3 Low High Moderate Wide-Area Alert
Class 2 Moderate Moderate Moderate Broadcast Traveler Information
Class 2 Moderate Moderate Moderate C-ITS Local Broadcast
Class 2 Moderate Moderate Moderate En-Route Guidance
Class 2 Moderate Moderate Moderate Freight-Specific Dynamic Travel Planning
Class 2 Moderate Moderate Moderate Personal Wayfinding
Class 2 Moderate Moderate Moderate Personalized Traveler Information
Class 2 Moderate Moderate Moderate Regional Parking Management
Class 2 Moderate Moderate Moderate Trip Planning and Payment
Class 2 Moderate Moderate Moderate Wide Area Broadcast
Class 1 Low Moderate Low Transit Traveler Information

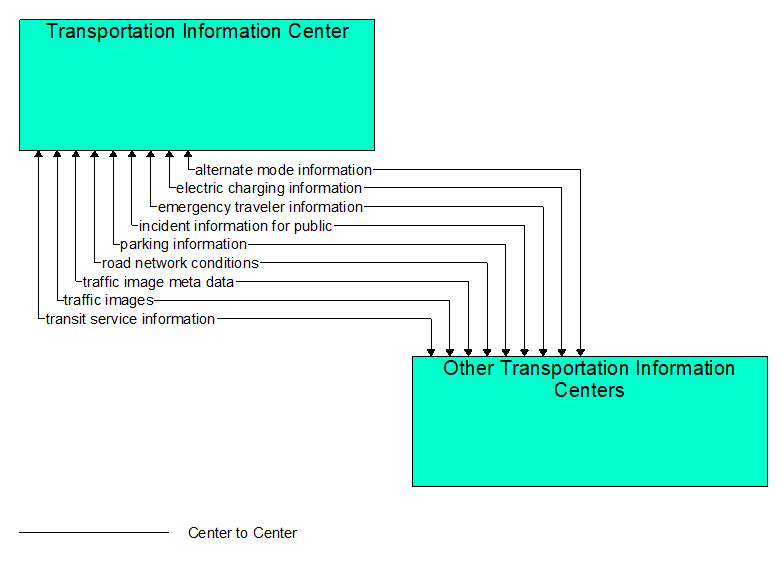

Interfaces Diagram

Interfaces diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
