Kind: Subsystem

Class: Center

Type: System

Emissions Management Center

Overview

The 'Emissions Management Center' provides the capabilities for air quality managers to monitor and manage air quality. These capabilities include collecting emissions data from distributed emissions sensors (included in ITS Roadway Equipment) and directly from connected vehicles. The sensors monitor general air quality and also monitor the emissions of individual vehicles on the roadway. The measures are collected, processed, and used to support environmental monitoring applications.



This physical object is included in the following Service Packages:

Triples

Source Flow Destination
Archived Data System archive status Emissions Management Center
Connected Vehicle Roadside Equipment controlled zone application status Emissions Management Center
Connected Vehicle Roadside Equipment emissions monitoring application status Emissions Management Center
Connected Vehicle Roadside Equipment emissions situation data Emissions Management Center
Emissions Management Center emissions archive data Archived Data System
Emissions Management Center controlled zone application info Connected Vehicle Roadside Equipment
Emissions Management Center emissions monitoring application information Connected Vehicle Roadside Equipment
Emissions Management Center emissions operator presentation Emissions Management Operator
Emissions Management Center access violation notification Enforcement Center
Emissions Management Center emissions violation notification Enforcement Center
Emissions Management Center low emissions zone operations information Event Promoter System
Emissions Management Center air quality sensor control ITS Roadway Equipment
Emissions Management Center emissions sensor control ITS Roadway Equipment
Emissions Management Center air quality information Media
Emissions Management Center low emissions zone coordination Payment Administration Center
Emissions Management Center low emissions zone operations information Payment Administration Center
Emissions Management Center air quality information Traffic Management Center
Emissions Management Center low emissions zone coordination Traffic Management Center
Emissions Management Center low emissions zone operations information Traffic Management Center
Emissions Management Center mobile source emissions data Traffic Management Center
Emissions Management Center wide area air quality data Traffic Management Center
Emissions Management Center low emissions zone coordination Transit Management Center
Emissions Management Center low emissions zone operations information Transit Management Center
Emissions Management Center wide area air quality data Transit Management Center
Emissions Management Center air quality information Transportation Information Center
Emissions Management Center low emissions zone operations information for public Transportation Information Center
Emissions Management Operator emissions operator input Emissions Management Center
Event Promoter System event plans Emissions Management Center
ITS Roadway Equipment air quality sensor data Emissions Management Center
ITS Roadway Equipment noise data Emissions Management Center
ITS Roadway Equipment vehicle emissions data Emissions Management Center
Payment Administration Center low emissions zone coordination Emissions Management Center
Traffic Management Center low emissions zone coordination Emissions Management Center
Traffic Management Center road network conditions Emissions Management Center
Traffic Management Center transportation operational strategies Emissions Management Center
Transit Management Center low emissions zone coordination Emissions Management Center
Transit Management Center transit and fare schedules Emissions Management Center
Transit Management Center transit emissions data Emissions Management Center
Weather Service System weather information Emissions Management Center

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class Confidentiality Integrity Availability Service Package
Class 4 High High Moderate Comprehensive Transportation Data Warehouse
Class 4 High High Moderate ITS Data Warehouse
Class 3 Moderate High Moderate Low Emissions Zone Management
Class 2 Moderate Moderate Moderate Eco-Lanes Management
Class 2 Moderate Moderate Moderate Eco-Traffic Metering
Class 2 Moderate Moderate Moderate Eco-Traffic Signal Timing
Class 2 Moderate Moderate Moderate Emissions Monitoring
Class 2 Moderate Moderate Moderate Integrated Decision Support and Demand Management
Class 1 Not Applicable Moderate Low Broadcast Traveler Information
Class 1 Not Applicable Moderate Low C-ITS Local Broadcast
Class 1 Not Applicable Moderate Low Personalized Traveler Information
Class 1 Not Applicable Moderate Low Wide Area Broadcast

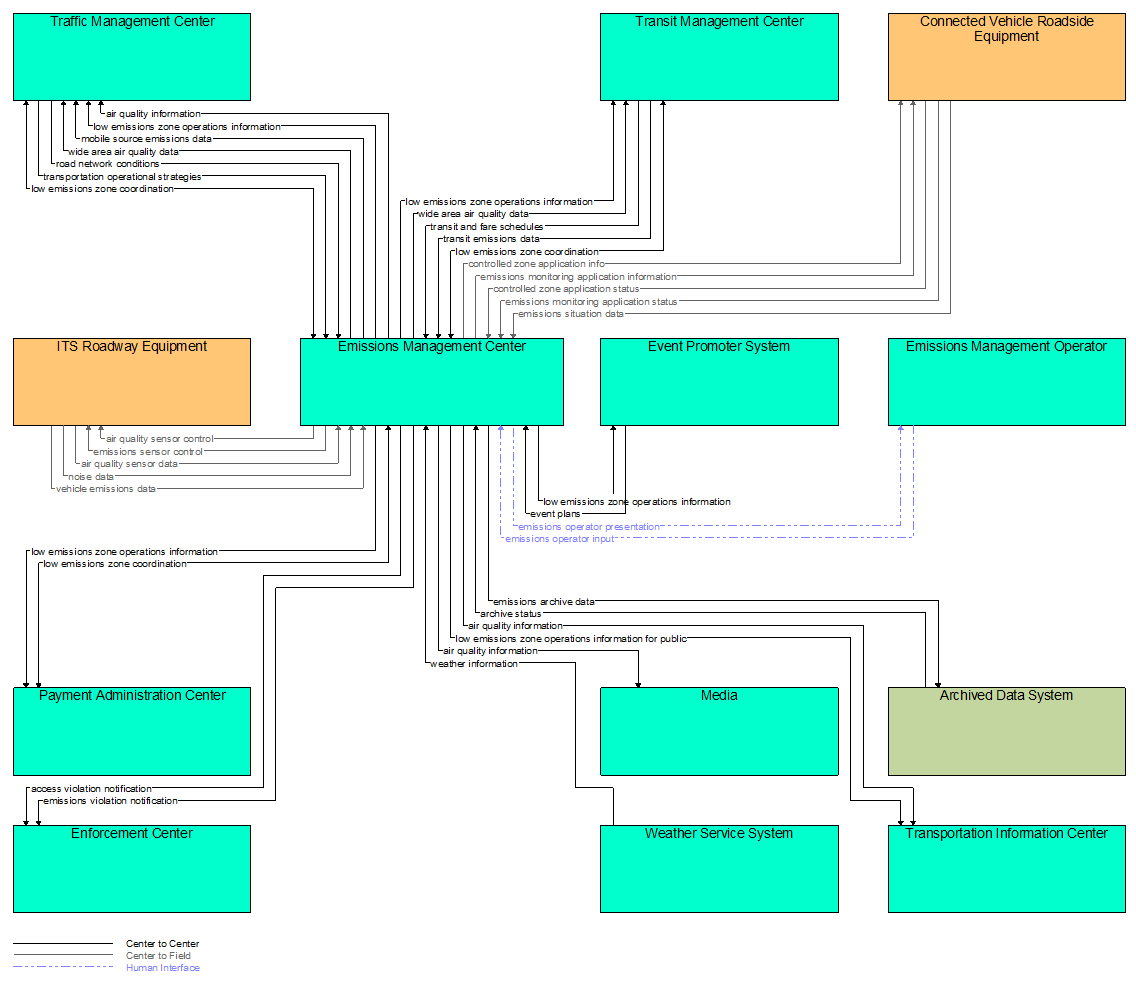

Interfaces Diagram

Interfaces diagram

Standards

The following table lists the standards associated with the physical object itself (as opposed to standards associated with an interface). For standards related to interfaces, see the specific information flow triple pages.

Name Title
NEMA TS 8 Cyber and Physical Security Cyber and Physical Security for Intelligent Transportation Systems
