Kind: Terminator

Class: Center

Type: System

Enforcement Center

Overview

The 'Enforcement Center' represents the systems that receive reports of violations detected by various ITS facilities including individual vehicle emissions, lane violations, toll violations, CVO violations, etc.

This physical object does not have any functionality defined in ARC-IT, as it exists outside the system functional boundary.



This physical object is included in the following Service Packages:

Triples

Source Flow Destination
Commercial Vehicle Administration Center accident report Enforcement Center
Commercial Vehicle Administration Center carrier participation report Enforcement Center
Commercial Vehicle Administration Center citation Enforcement Center
Commercial Vehicle Administration Center commercial vehicle permit information Enforcement Center
Commercial Vehicle Administration Center commercial vehicle violation notification Enforcement Center
Commercial Vehicle Administration Center credentials status information Enforcement Center
Commercial Vehicle Administration Center daily site activity data Enforcement Center
Commercial Vehicle Administration Center safety inspection report Enforcement Center
Commercial Vehicle Administration Center safety status information Enforcement Center
Commercial Vehicle Check Equipment commercial vehicle violation notification Enforcement Center
Connected Vehicle Roadside Equipment lane violation notification Enforcement Center
Emissions Management Center access violation notification Enforcement Center
Emissions Management Center emissions violation notification Enforcement Center
Enforcement Center information on violators Commercial Vehicle Administration Center
Enforcement Center targeted list Commercial Vehicle Administration Center
Enforcement Center trigger area definition Commercial Vehicle Administration Center
Enforcement Center trigger control Commercial Vehicle Administration Center
Enforcement Center information on violators Commercial Vehicle Check Equipment
Enforcement Center information on violators Fleet and Freight Management Center
Enforcement Center automated enforcement parameters ITS Roadway Equipment
Enforcement Center speed monitoring control ITS Roadway Equipment
Enforcement Center service request Vehicle
ITS Roadway Equipment signal violation notification Enforcement Center
ITS Roadway Equipment speed monitoring information Enforcement Center
ITS Roadway Equipment violation notification Enforcement Center
Maint and Constr Management Center request for enforcement Enforcement Center
Parking Management Center payment violation notification Enforcement Center
Payment Administration Center payment violation notification Enforcement Center
Traffic Management Center current lane restrictions Enforcement Center
Traffic Management Center lane violation notification Enforcement Center
Traffic Management Center request for enforcement Enforcement Center
Transit Management Center payment violation notification Enforcement Center
Vehicle service record Enforcement Center
Vehicle vehicle incident record Enforcement Center

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class Confidentiality Integrity Availability Service Package
Class 4 High Moderate Moderate CV Administrative Processes
Class 4 High High Moderate Electronic Clearance
Class 4 High Moderate Low International Border Electronic Clearance
Class 4 High High Moderate Roadside CVO Safety
Class 4 High High Moderate Smart Roadside and Virtual WIM
Class 3 Moderate High Moderate Speed Warning and Enforcement
Class 2 Moderate Moderate Moderate C-ITS Based Payment
Class 2 Moderate Moderate Moderate Direct Payment Using WAW
Class 2 Moderate Moderate Moderate Dynamic Lane Management and Shoulder Use
Class 2 Moderate Moderate Moderate Eco-Lanes Management
Class 2 Moderate Moderate Moderate Electronic Toll Collection
Class 2 Moderate Moderate Moderate Emissions Monitoring
Class 2 Moderate Moderate Moderate HOV/HOT Lane Management
Class 2 Moderate Moderate Moderate Intermittent Bus Lanes
Class 2 Moderate Moderate Moderate Local Point of Sale
Class 2 Moderate Moderate Moderate Low Emissions Zone Management
Class 2 Moderate Moderate Low Mayday Notification
Class 2 Moderate Moderate Moderate Parking Electronic Payment
Class 2 Moderate Moderate Moderate Road Use Charging
Class 2 Moderate Moderate Moderate Short Range Communications
Class 2 Moderate Moderate Low Signal Enforcement
Class 2 Moderate Moderate Moderate Transit Fare Collection Management
Class 2 Moderate Moderate Moderate Vehicle Maintenance
Class 2 Moderate Moderate Moderate Wide-Area Wireless

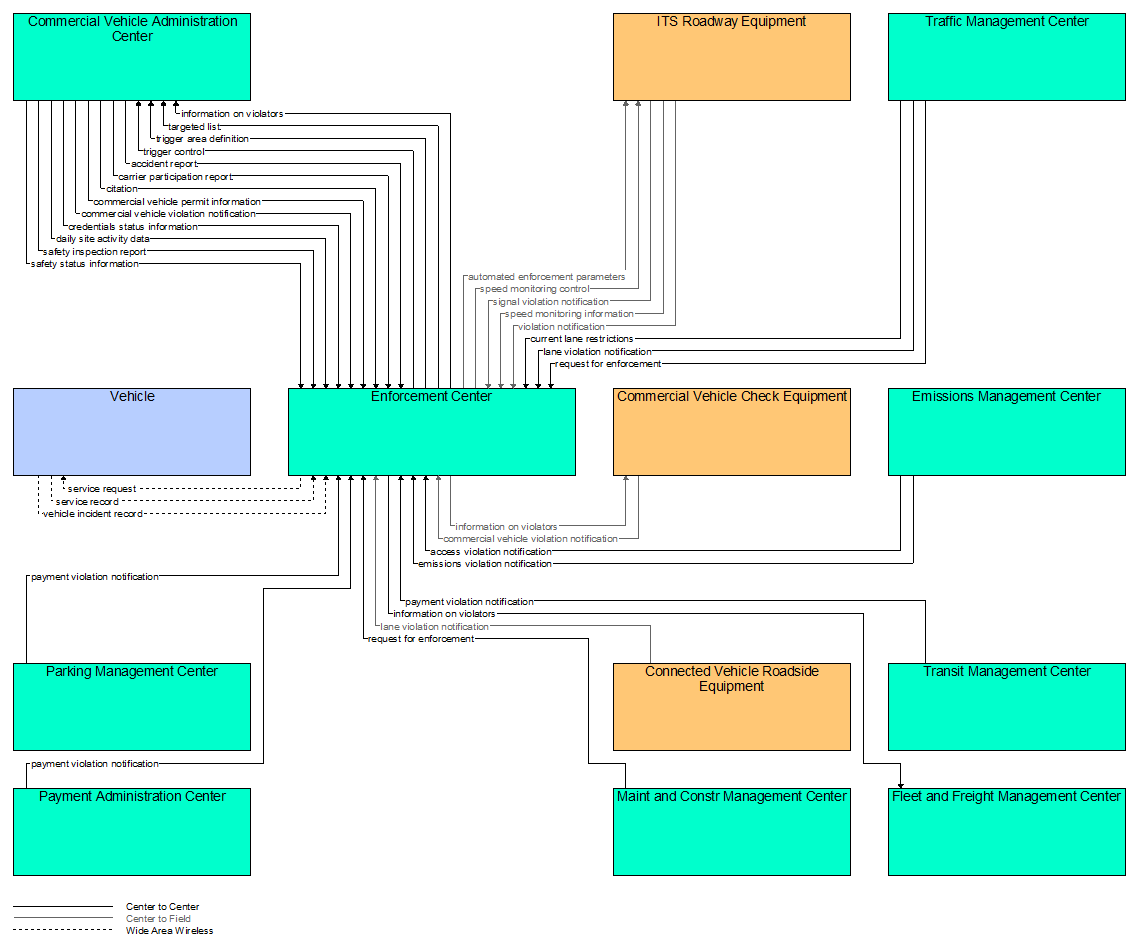

Interfaces Diagram

Interfaces diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
