Kind: Subsystem

Class: Center

Type: System

Commercial Vehicle Administration Center

Overview

The 'Commercial Vehicle Administration Center' performs administrative functions supporting credentials, tax, and safety regulations associated with commercial vehicles. It issues credentials, collects fees and taxes, and supports enforcement of credential requirements. It communicates with motor carriers to process credentials applications and collect fuel taxes, weight/distance taxes, and other taxes and fees associated with commercial vehicle operations. It also receives applications for, and issues special Oversize/Overweight and HAZMAT permits in coordination with cognizant authorities. It coordinates with other Commercial Vehicle Administration Centers (in other states/regions) to support nationwide access to credentials and safety information for administration and enforcement functions. It communicates with field equipment to enable credential checking and safety information collection at the roadside. It makes safety information available to qualified stakeholders to identify carriers and drivers that operate unsafely.



This physical object is included in the following Service Packages:

Triples

Source Flow Destination
Alerting and Advisory System alerts and advisories Commercial Vehicle Administration Center
Archived Data System archive status Commercial Vehicle Administration Center
Border Inspection Administration Center client verification request Commercial Vehicle Administration Center
Border Inspection Administration Center pre-arrival notification Commercial Vehicle Administration Center
Border Inspection System arrival notification Commercial Vehicle Administration Center
Commercial Vehicle Administration Center commercial vehicle archive data Archived Data System
Commercial Vehicle Administration Center border clearance status Border Inspection Administration Center
Commercial Vehicle Administration Center client verification information Border Inspection Administration Center
Commercial Vehicle Administration Center screening results Border Inspection Administration Center
Commercial Vehicle Administration Center commercial vehicle administration information presentation Commercial Vehicle Administrator
Commercial Vehicle Administration Center accident report Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center border agency clearance results Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center carrier participation report Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center citation Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center commercial vehicle permit information Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center credentials information Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center credentials status information Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center cv driver record Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center driver log Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center safety inspection report Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center safety status information Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center targeted list Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center transportation border clearance assessment Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center trigger area notification Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center trigger control Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center trip declaration identifiers Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center safety inspection record Commercial Vehicle OBE
Commercial Vehicle Administration Center trigger area notification Commercial Vehicle OBE
Commercial Vehicle Administration Center commercial vehicle permit information Commercial Vehicle Service Provider Center
Commercial Vehicle Administration Center carrier participation report CVO Information Requestor Center
Commercial Vehicle Administration Center credentials information CVO Information Requestor Center
Commercial Vehicle Administration Center credentials status information CVO Information Requestor Center
Commercial Vehicle Administration Center cv driver record CVO Information Requestor Center
Commercial Vehicle Administration Center safety status information CVO Information Requestor Center
Commercial Vehicle Administration Center accident report Enforcement Center
Commercial Vehicle Administration Center carrier participation report Enforcement Center
Commercial Vehicle Administration Center citation Enforcement Center
Commercial Vehicle Administration Center commercial vehicle permit information Enforcement Center
Commercial Vehicle Administration Center commercial vehicle violation notification Enforcement Center
Commercial Vehicle Administration Center credentials status information Enforcement Center
Commercial Vehicle Administration Center daily site activity data Enforcement Center
Commercial Vehicle Administration Center safety inspection report Enforcement Center
Commercial Vehicle Administration Center safety status information Enforcement Center
Commercial Vehicle Administration Center payment request Financial Center
Commercial Vehicle Administration Center accident report Fleet and Freight Management Center
Commercial Vehicle Administration Center border clearance status Fleet and Freight Management Center
Commercial Vehicle Administration Center citation Fleet and Freight Management Center
Commercial Vehicle Administration Center commercial vehicle permit Fleet and Freight Management Center
Commercial Vehicle Administration Center compliance review report Fleet and Freight Management Center
Commercial Vehicle Administration Center credentials information Fleet and Freight Management Center
Commercial Vehicle Administration Center credentials status information Fleet and Freight Management Center
Commercial Vehicle Administration Center cv driver record Fleet and Freight Management Center
Commercial Vehicle Administration Center route restrictions Fleet and Freight Management Center
Commercial Vehicle Administration Center safety inspection report Fleet and Freight Management Center
Commercial Vehicle Administration Center safety status information Fleet and Freight Management Center
Commercial Vehicle Administration Center trigger area Fleet and Freight Management Center
Commercial Vehicle Administration Center trigger area notification Fleet and Freight Management Center
Commercial Vehicle Administration Center border clearance status Intermodal Customer System
Commercial Vehicle Administration Center route restrictions Map Update System
Commercial Vehicle Administration Center accident report Other CV Administration Centers
Commercial Vehicle Administration Center border clearance status Other CV Administration Centers
Commercial Vehicle Administration Center citation Other CV Administration Centers
Commercial Vehicle Administration Center commercial vehicle permit information Other CV Administration Centers
Commercial Vehicle Administration Center credential fee coordination Other CV Administration Centers
Commercial Vehicle Administration Center credentials information Other CV Administration Centers
Commercial Vehicle Administration Center credentials status information Other CV Administration Centers
Commercial Vehicle Administration Center cv driver record Other CV Administration Centers
Commercial Vehicle Administration Center route restrictions Other CV Administration Centers
Commercial Vehicle Administration Center safety inspection report Other CV Administration Centers
Commercial Vehicle Administration Center safety status information Other CV Administration Centers
Commercial Vehicle Administration Center commercial vehicle permit information Transportation Information Center
Commercial Vehicle Administration Center route restrictions Transportation Information Center
Commercial Vehicle Administrator commercial vehicle administrative request Commercial Vehicle Administration Center
Commercial Vehicle Check Equipment accident report Commercial Vehicle Administration Center
Commercial Vehicle Check Equipment border clearance event records Commercial Vehicle Administration Center
Commercial Vehicle Check Equipment citation Commercial Vehicle Administration Center
Commercial Vehicle Check Equipment commercial vehicle violation notification Commercial Vehicle Administration Center
Commercial Vehicle Check Equipment daily site activity data Commercial Vehicle Administration Center
Commercial Vehicle Check Equipment driver log Commercial Vehicle Administration Center
Commercial Vehicle Check Equipment on-board safety data Commercial Vehicle Administration Center
Commercial Vehicle Check Equipment request for driver log Commercial Vehicle Administration Center
Commercial Vehicle Check Equipment roadside data message Commercial Vehicle Administration Center
Commercial Vehicle Check Equipment safety inspection report Commercial Vehicle Administration Center
Commercial Vehicle Check Equipment weigh-in-motion information Commercial Vehicle Administration Center
Commercial Vehicle OBE driver log Commercial Vehicle Administration Center
Commercial Vehicle OBE on-board safety data Commercial Vehicle Administration Center
Commercial Vehicle OBE unique identifiers Commercial Vehicle Administration Center
Commercial Vehicle Service Provider Center commercial vehicle permit information Commercial Vehicle Administration Center
Commercial Vehicle Service Provider Center driver log Commercial Vehicle Administration Center
Commercial Vehicle Service Provider Center malfunction report Commercial Vehicle Administration Center
Commercial Vehicle Service Provider Center non-compliance report Commercial Vehicle Administration Center
CVO Information Requestor Center request for data review Commercial Vehicle Administration Center
DMV registration Commercial Vehicle Administration Center
Enforcement Center information on violators Commercial Vehicle Administration Center
Enforcement Center targeted list Commercial Vehicle Administration Center
Enforcement Center trigger area definition Commercial Vehicle Administration Center
Enforcement Center trigger control Commercial Vehicle Administration Center
Financial Center settlement Commercial Vehicle Administration Center
Fleet and Freight Management Center audit data Commercial Vehicle Administration Center
Fleet and Freight Management Center credential application Commercial Vehicle Administration Center
Fleet and Freight Management Center cv repair status Commercial Vehicle Administration Center
Fleet and Freight Management Center driver log Commercial Vehicle Administration Center
Fleet and Freight Management Center malfunction report Commercial Vehicle Administration Center
Fleet and Freight Management Center on-board safety data Commercial Vehicle Administration Center
Fleet and Freight Management Center request for permit Commercial Vehicle Administration Center
Fleet and Freight Management Center tax filing Commercial Vehicle Administration Center
Fleet and Freight Management Center unique identifiers Commercial Vehicle Administration Center
Maint and Constr Management Center current infrastructure restrictions Commercial Vehicle Administration Center
Other CV Administration Centers accident report Commercial Vehicle Administration Center
Other CV Administration Centers border clearance status Commercial Vehicle Administration Center
Other CV Administration Centers citation Commercial Vehicle Administration Center
Other CV Administration Centers commercial vehicle permit information Commercial Vehicle Administration Center
Other CV Administration Centers credential fee coordination Commercial Vehicle Administration Center
Other CV Administration Centers credentials information Commercial Vehicle Administration Center
Other CV Administration Centers credentials status information Commercial Vehicle Administration Center
Other CV Administration Centers cv driver record Commercial Vehicle Administration Center
Other CV Administration Centers route restrictions Commercial Vehicle Administration Center
Other CV Administration Centers safety inspection report Commercial Vehicle Administration Center
Other CV Administration Centers safety status information Commercial Vehicle Administration Center
Traffic Management Center road network conditions Commercial Vehicle Administration Center

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class Confidentiality Integrity Availability Service Package
Class 4 High High Moderate Carrier Operations and Fleet Management
Class 4 High High Moderate CV Administrative Processes
Class 4 High High Moderate Electronic Clearance
Class 4 High High Moderate Electronic Driver Logs
Class 4 High High Moderate International Border Electronic Clearance
Class 4 High High Moderate ITS Data Warehouse
Class 4 High High Moderate Roadside CVO Safety
Class 4 High Moderate Moderate Roadside HAZMAT Security Detection and Mitigation
Class 4 High High Moderate Smart Roadside and Virtual WIM
Class 2 Moderate Moderate Moderate Freight-Specific Dynamic Travel Planning
Class 2 Moderate Moderate Moderate Intelligent Access Program
Class 2 Moderate Moderate Moderate Intelligent Access Program - Weight Monitoring
Class 2 Moderate Moderate Moderate Intelligent Speed Compliance
Class 2 Moderate Moderate Moderate International Border Registration
Class 1 Low Low Moderate Maintenance and Construction Activity Coordination
Class 1 Low Moderate Low Map Management

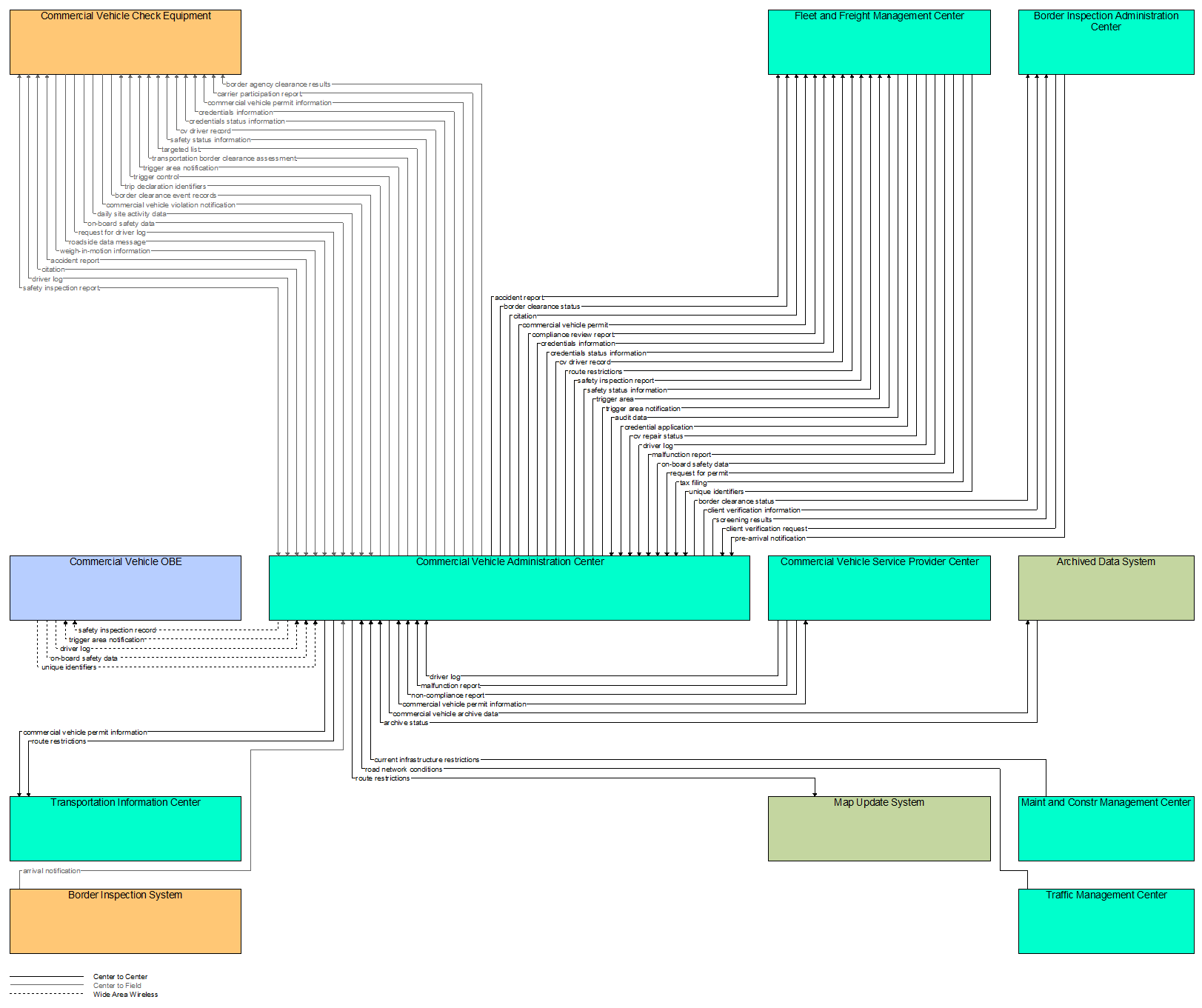

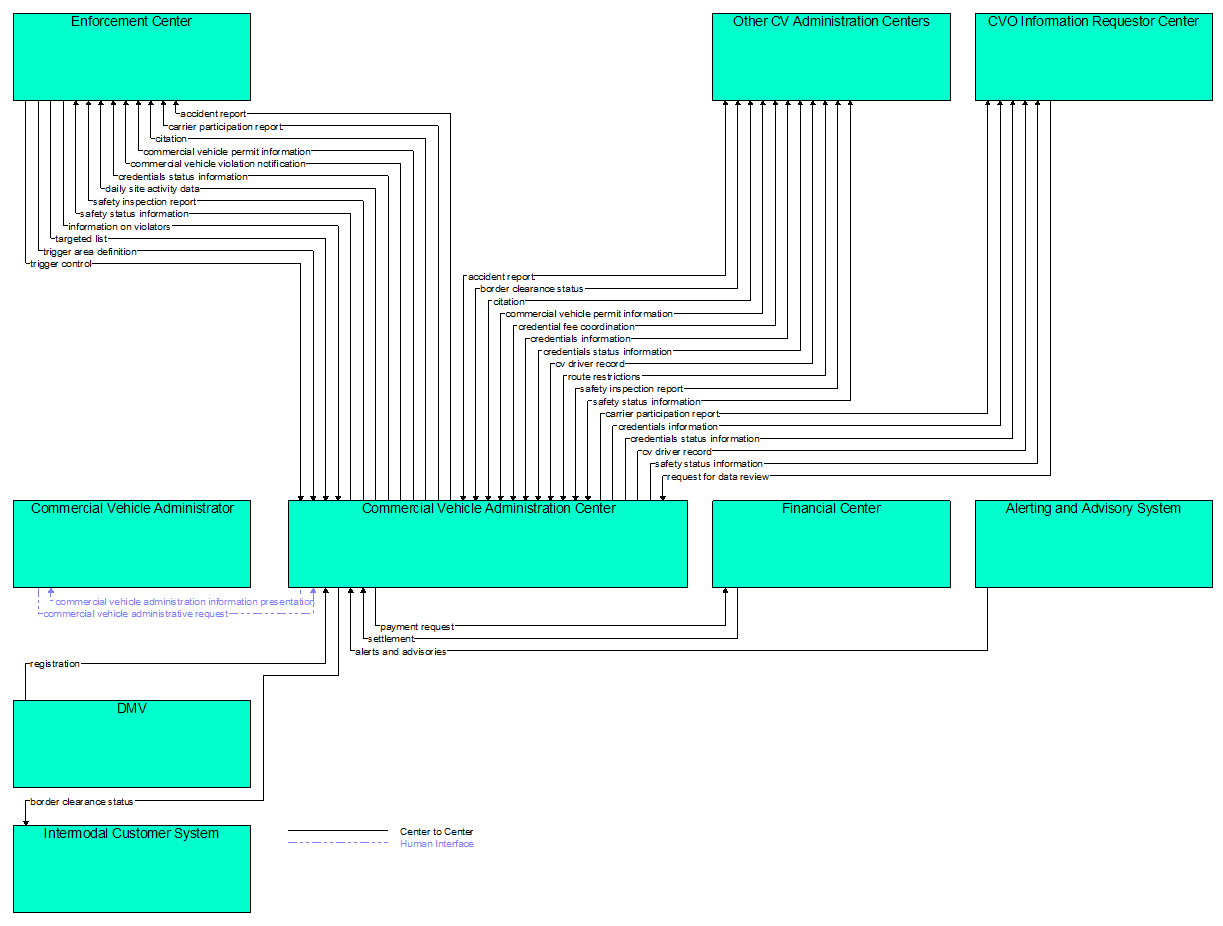

This interfaces diagram had many interfaces and so was broken up into a Subsystem and Terminator interfaces diagram.

Subsystem Interfaces Diagram

Interfaces diagram


Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
