Kind: Terminator

Class: Center

Type: Other System

Other CV Administration Centers

Overview

'Other CV Administration Centers' is intended to provide a source and destination for information flows between peer (e.g. inter-regional) commercial vehicle administration centers. It enables commercial vehicle administration activities to be coordinated across different jurisdictional areas. It encompasses all functions associated with commercial vehicle safety, registration, and operating authority for non-U.S. based commercial motor vehicle carriers. The agencies represented herein may include Federal, state, provincial, and local regulatory entities outside the U.S.

This physical object does not have any functionality defined in ARC-IT, as it exists outside the system functional boundary.



This physical object is included in the following Service Packages:

Triples

Source Flow Destination
Commercial Vehicle Administration Center accident report Other CV Administration Centers
Commercial Vehicle Administration Center border clearance status Other CV Administration Centers
Commercial Vehicle Administration Center citation Other CV Administration Centers
Commercial Vehicle Administration Center commercial vehicle permit information Other CV Administration Centers
Commercial Vehicle Administration Center credential fee coordination Other CV Administration Centers
Commercial Vehicle Administration Center credentials information Other CV Administration Centers
Commercial Vehicle Administration Center credentials status information Other CV Administration Centers
Commercial Vehicle Administration Center cv driver record Other CV Administration Centers
Commercial Vehicle Administration Center route restrictions Other CV Administration Centers
Commercial Vehicle Administration Center safety inspection report Other CV Administration Centers
Commercial Vehicle Administration Center safety status information Other CV Administration Centers
Other CV Administration Centers accident report Commercial Vehicle Administration Center
Other CV Administration Centers border clearance status Commercial Vehicle Administration Center
Other CV Administration Centers citation Commercial Vehicle Administration Center
Other CV Administration Centers commercial vehicle permit information Commercial Vehicle Administration Center
Other CV Administration Centers credential fee coordination Commercial Vehicle Administration Center
Other CV Administration Centers credentials information Commercial Vehicle Administration Center
Other CV Administration Centers credentials status information Commercial Vehicle Administration Center
Other CV Administration Centers cv driver record Commercial Vehicle Administration Center
Other CV Administration Centers route restrictions Commercial Vehicle Administration Center
Other CV Administration Centers safety inspection report Commercial Vehicle Administration Center
Other CV Administration Centers safety status information Commercial Vehicle Administration Center

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class Confidentiality Integrity Availability Service Package
Class 4 High High Moderate CV Administrative Processes
Class 4 High High Moderate Electronic Clearance
Class 4 High High Moderate International Border Electronic Clearance
Class 4 High High Moderate Roadside CVO Safety
Class 4 High High Moderate Smart Roadside and Virtual WIM

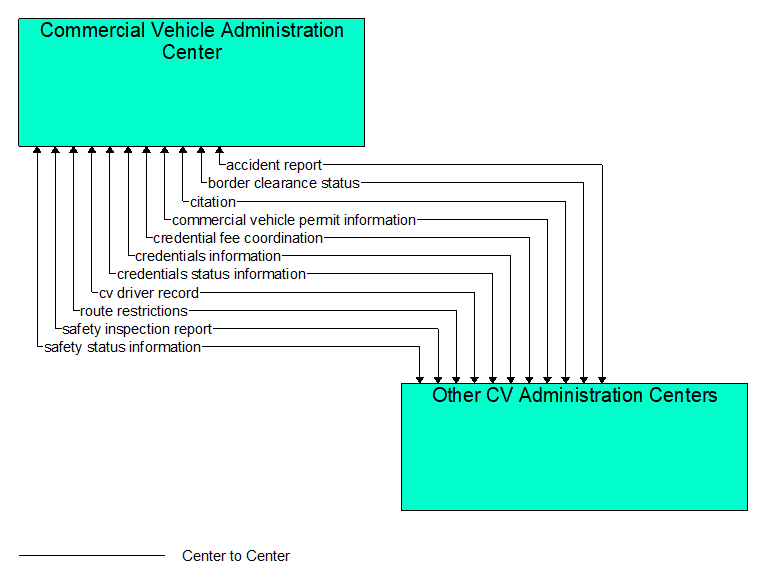

Interfaces Diagram

Interfaces diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
