Overview

The 'DMV' is a specific (state) public organization responsible for registering vehicles, e.g., the Department of Motor Vehicles.

This physical object does not have any functionality defined in ARC-IT, as it exists outside the system functional boundary.

This physical object is included in the following Service Packages:

Triples

Source	Flow	Destination
DMV	registration	Commercial Vehicle Administration Center
DMV	registration	Emergency Management Center
DMV	registration	Payment Administration Center
Emergency Management Center	license request	DMV
Payment Administration Center	license request	DMV

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class	Confidentiality	Integrity	Availability	Service Package
Class 4	High	High	Moderate	Electronic Toll Collection
Class 4	High	High	Moderate	Incident Scene Pre-Arrival Staging Guidance for Emergency Responders
Class 4	High	High	Moderate	Low Emissions Zone Management
Class 4	High	High	Moderate	Road Use Charging
Class 4	High	High	Moderate	Stolen Vehicle Recovery
Class 2	Moderate	Moderate	Moderate	CV Administrative Processes

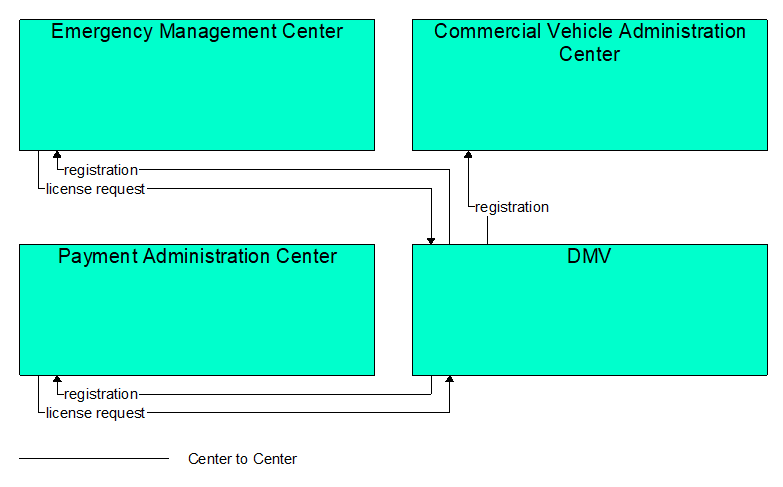

Interfaces Diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
