Kind: Subsystem

Class: Center

Type: System

Payment Administration Center

Overview

The 'Payment Administration Center' provides general payment administration capabilities and supports the electronic transfer of funds from the customer to the transportation system operator or other service provider. Charges can be recorded for tolls, vehicle-mileage charging, congestion charging, or other goods and services. It supports traveler enrollment and collection of both pre-payment and post-payment transportation fees in coordination with the financial infrastructure supporting electronic payment transactions. The system may establish and administer escrow accounts depending on the clearinghouse scheme and the type of payments involved. It may post a transaction to the customer account, generate a bill (for post-payment accounts), debit an escrow account, or interface to a financial infrastructure to debit a customer designated account. It supports communications with the ITS Roadway Payment Equipment to support fee collection operations. As an alternative, a wide-area wireless interface can be used to communicate directly with vehicle equipment. It also sets and administers the pricing structures and may implement road pricing policies in coordination with the Traffic Management Center.



This physical object is included in the following Service Packages:

Triples

Source Flow Destination
Archived Data System archive status Payment Administration Center
DMV registration Payment Administration Center
Electric Charging Management Center account updates Payment Administration Center
Electric Charging Management Center service registry Payment Administration Center
Electric Charging Station authorization request Payment Administration Center
Electric Utility usage and billing info Payment Administration Center
Eligibility Certification Management System traveler eligibility Payment Administration Center
Emergency Management Center toll service change request Payment Administration Center
Emissions Management Center low emissions zone coordination Payment Administration Center
Emissions Management Center low emissions zone operations information Payment Administration Center
Financial Center payment methods financial institution Payment Administration Center
Financial Center settlement Payment Administration Center
Fleet and Freight Management Center toll data request Payment Administration Center
ITS Roadway Payment Equipment authorization request Payment Administration Center
ITS Roadway Payment Equipment payment transactions Payment Administration Center
ITS Roadway Payment Equipment road pricing equipment fault Payment Administration Center
ITS Roadway Payment Equipment road use history Payment Administration Center
Light Vehicle OBE actuate secure payment Payment Administration Center
Light Vehicle OBE road pricing equipment status Payment Administration Center
Light Vehicle OBE road use history Payment Administration Center
Light Vehicle OBE user account setup Payment Administration Center
Light Vehicle OBE vehicle payment information Payment Administration Center
Other Payment Administration Centers payment coordination Payment Administration Center
Other Payment Administration Centers toll coordination Payment Administration Center
Other Payment Administration Centers user account coordination Payment Administration Center
Parking Area Equipment authorization request Payment Administration Center
Parking Management Center account updates Payment Administration Center
Parking Management Center service registry Payment Administration Center
Payment Administration Center payment archive data Archived Data System
Payment Administration Center license request DMV
Payment Administration Center payment methods Electric Charging Management Center
Payment Administration Center authorization response Electric Charging Station
Payment Administration Center traveler eligibility request Eligibility Certification Management System
Payment Administration Center toll service change response Emergency Management Center
Payment Administration Center low emissions zone coordination Emissions Management Center
Payment Administration Center payment violation notification Enforcement Center
Payment Administration Center payment request Financial Center
Payment Administration Center toll data Fleet and Freight Management Center
Payment Administration Center authorization response ITS Roadway Payment Equipment
Payment Administration Center payment instructions ITS Roadway Payment Equipment
Payment Administration Center road use charges ITS Roadway Payment Equipment
Payment Administration Center access violation notification Light Vehicle OBE
Payment Administration Center registered secureIDs Light Vehicle OBE
Payment Administration Center road use charges Light Vehicle OBE
Payment Administration Center user account reports Light Vehicle OBE
Payment Administration Center vehicle payment update Light Vehicle OBE
Payment Administration Center payment coordination Other Payment Administration Centers
Payment Administration Center toll coordination Other Payment Administration Centers
Payment Administration Center user account coordination Other Payment Administration Centers
Payment Administration Center authorization response Parking Area Equipment
Payment Administration Center payment methods Parking Management Center
Payment Administration Center payment information presentation Payment Administrator
Payment Administration Center access violation notification Personal Information Device
Payment Administration Center registered secureIDs Personal Information Device
Payment Administration Center traveler payment request Personal Information Device
Payment Administration Center user account reports Personal Information Device
Payment Administration Center payment methods Shared Use Transportation Center
Payment Administration Center trip access coordination Shared Use Transportation Center
Payment Administration Center toll data Traffic Management Center
Payment Administration Center toll probe data Traffic Management Center
Payment Administration Center payment methods Transit Management Center
Payment Administration Center reconciliation response Transit Management Center
Payment Administration Center trip access coordination Transit Management Center
Payment Administration Center authorization response Transit Vehicle OBE
Payment Administration Center reconciliation response Transportation Information Center
Payment Administration Center road use charge info Transportation Information Center
Payment Administration Center toll data Transportation Information Center
Payment Administration Center toll probe data Transportation Information Center
Payment Administration Center trip access coordination Transportation Information Center
Payment Administration Center authorization response Traveler Support Equipment
Payment Administration Center registered secureIDs Traveler Support Equipment
Payment Administration Center traveler payment request Traveler Support Equipment
Payment Administration Center user account reports Traveler Support Equipment
Payment Administrator payment administration requests Payment Administration Center
Personal Information Device actuate secure payment Payment Administration Center
Personal Information Device payment device token information Payment Administration Center
Personal Information Device traveler payment information Payment Administration Center
Personal Information Device user account setup Payment Administration Center
Shared Use Transportation Center account updates Payment Administration Center
Shared Use Transportation Center trip access coordination Payment Administration Center
Traffic Management Center transportation operational strategies Payment Administration Center
Transit Management Center account updates Payment Administration Center
Transit Management Center service registry Payment Administration Center
Transit Management Center smart card reconciliation Payment Administration Center
Transit Management Center trip access coordination Payment Administration Center
Transit Vehicle OBE authorization request Payment Administration Center
Transportation Information Center account updates Payment Administration Center
Transportation Information Center smart card reconciliation Payment Administration Center
Transportation Information Center toll data request Payment Administration Center
Transportation Information Center trip access coordination Payment Administration Center
Traveler Support Equipment actuate secure payment Payment Administration Center
Traveler Support Equipment authorization request Payment Administration Center
Traveler Support Equipment user account setup Payment Administration Center

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class Confidentiality Integrity Availability Service Package
Class 5 High High High Account-based
Class 5 High High High Account-based with all modes
Class 5 High High High Account-based, personal transport and shared use
Class 5 Low Moderate High Evacuation and Reentry Management
Class 5 High High High Integrated Multi-Modal Electronic Payment
Class 5 High High High Low Emissions Zone Management
Class 5 High High High Road Use Charging
Class 4 High High Moderate C-ITS Based Payment
Class 4 High High Moderate Comprehensive Transportation Data Warehouse
Class 4 High High Moderate Direct Payment Using WAW
Class 4 High High Moderate Electronic Toll Collection
Class 4 High High Moderate HOV/HOT Lane Management
Class 4 High High Moderate ITS Data Warehouse
Class 4 High High Moderate Local Point of Sale
Class 4 High High Moderate Parking Electronic Payment
Class 4 High High Moderate Pay-as-you-go
Class 4 High High Moderate Public Transportation Data Mart
Class 4 High High Moderate Transit Fare Collection Management
Class 3 Moderate High Moderate Card-based
Class 2 Moderate Moderate Moderate Electric Charging Stations Management
Class 2 Moderate Moderate Moderate Freight-Specific Dynamic Travel Planning
Class 2 Moderate Moderate Moderate Integrated Decision Support and Demand Management
Class 2 Moderate Moderate Moderate Trip Planning and Payment
Class 1 Low Moderate Low Broadcast Traveler Information
Class 1 Low Moderate Low C-ITS Communications
Class 1 Low Moderate Low C-ITS Local Broadcast
Class 1 Low Moderate Low Personalized Traveler Information
Class 1 Low Moderate Low Vehicle-Based Traffic Surveillance
Class 1 Low Moderate Low Wide Area Broadcast
Class 1 Low Moderate Low Wide-Area Wireless Communications

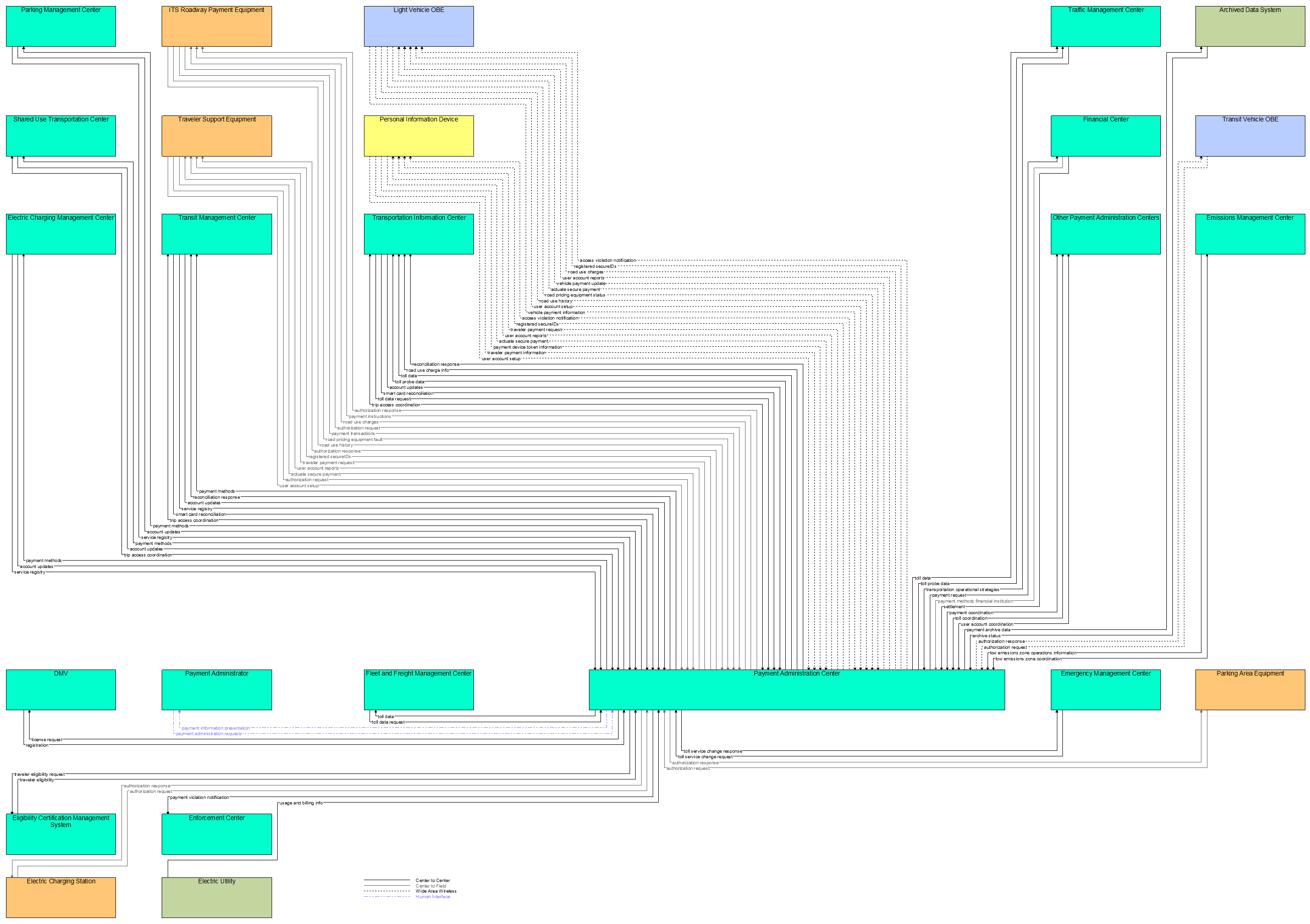

Interfaces Diagram

Interfaces diagram

Standards

The following table lists the standards associated with the physical object itself (as opposed to standards associated with an interface). For standards related to interfaces, see the specific information flow triple pages.

Name Title
NEMA TS 8 Cyber and Physical Security Cyber and Physical Security for Intelligent Transportation Systems
