Kind: Subsystem

Class: Field

Type: System

ITS Roadway Payment Equipment

Overview

'ITS Roadway Payment Equipment' represents the roadway components of a toll collection system. It provides the capability for vehicle operators to pay tolls without stopping their vehicles. It supports use of locally determined pricing structures and includes the capability to implement various variable pricing policies. Typically, transactions are accompanied by feedback to the customer and a record of the transactions is provided to a back office system (e.g., the Payment Administration Center).



This physical object is included in the following Service Packages:

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class Confidentiality Integrity Availability Service Package
Class 5 Moderate Moderate High Account-based
Class 5 Moderate Moderate High Account-based with all modes
Class 5 Moderate Moderate High Account-based, personal transport and shared use
Class 5 Moderate Moderate High Card-based
Class 5 Moderate Moderate High Electronic Toll Collection
Class 5 Moderate Moderate High HOV/HOT Lane Management
Class 5 Moderate Moderate High Integrated Multi-Modal Electronic Payment
Class 5 High High High Low Emissions Zone Management
Class 5 Moderate Moderate High Pay-as-you-go
Class 5 High High High Road Use Charging

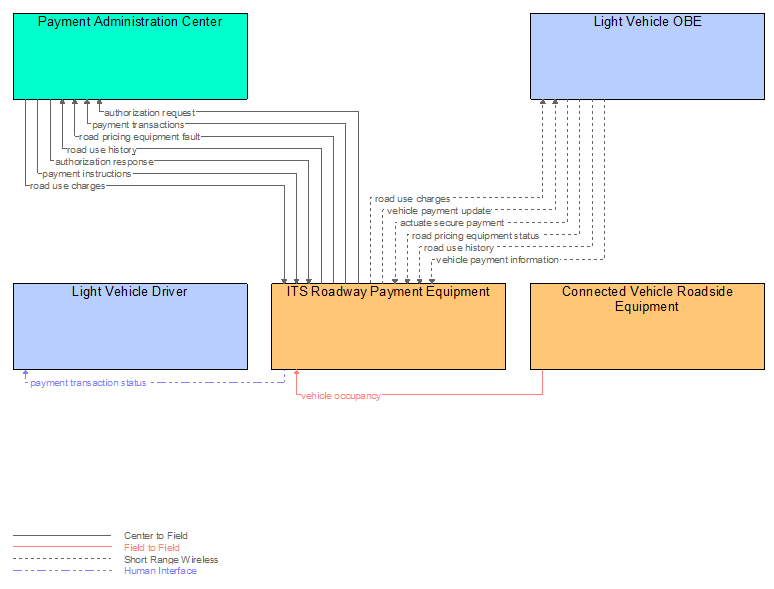

Interfaces Diagram

Interfaces diagram

Standards

The following table lists the standards associated with the physical object itself (as opposed to standards associated with an interface). For standards related to interfaces, see the specific information flow triple pages.

Name Title
NEMA TS 8 Cyber and Physical Security Cyber and Physical Security for Intelligent Transportation Systems
