Kind: Terminator

Class: Center

Type: Other System

Other Payment Administration Centers

Overview

Representing another Payment Administration Center, 'Other Payment Administration Centers' is intended to provide a source and destination for ITS information flows between payment administration functions. This interface allows reconciliation of toll charges and other payments across different agencies by allowing the exchange of information about clients who have incurred charges in jurisdictions other than their own (billing) customer service center. This interface enables apportioning charges and 'reciprocity' between participating customer service centers.

This physical object does not have any functionality defined in ARC-IT, as it exists outside the system functional boundary.



This physical object is included in the following Service Packages:

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class Confidentiality Integrity Availability Service Package
Class 3 Moderate High Moderate Integrated Multi-Modal Electronic Payment
Class 3 Moderate High Moderate Low Emissions Zone Management
Class 3 Moderate High Moderate Road Use Charging
Class 2 Moderate Moderate Moderate Electronic Toll Collection

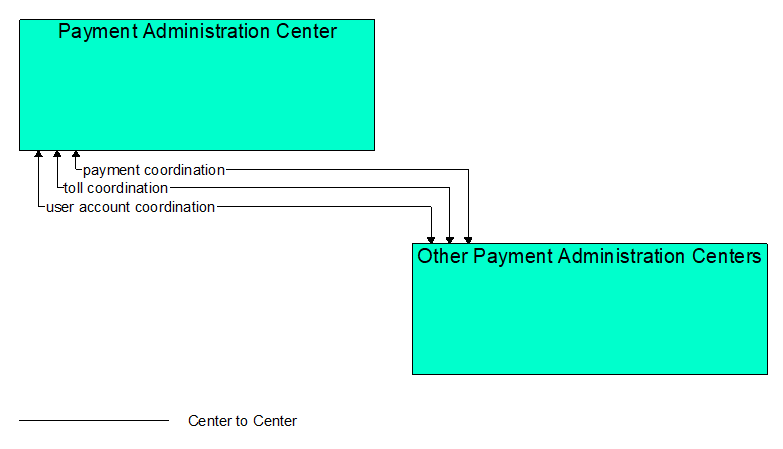

Interfaces Diagram

Interfaces diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
