Fleet and Freight Management Center

Overview
Functionality
Triples
Security
Interfaces Diagram
Standards

Overview

The 'Fleet and Freight Management Center' provides the capability for commercial drivers and fleet-freight managers to receive real-time routing information and access databases containing vehicle and/or freight equipment locations as well as carrier, vehicle, freight equipment and driver information. The 'Fleet and Freight Management Center' also provides the capability for fleet managers to monitor the safety and security of their commercial vehicle drivers and fleet.

This physical object is included in the following Service Packages:

Functionality

Functional Object
Fleet Administration
Fleet Credentials and Taxes Management and Reporting
Fleet Driver Authentication
Fleet Driver Log Management
Fleet Maintenance Management
Freight Administration and Management

Triples

Source	Flow	Destination
Alerting and Advisory System	alerts and advisories	Fleet and Freight Management Center
Border Inspection Administration Center	clearance notification	Fleet and Freight Management Center
Border Inspection Administration Center	expedited clearance information	Fleet and Freight Management Center
Border Inspection Administration Center	expedited clearance status	Fleet and Freight Management Center
Border Inspection Administration Center	manifest receipt confirmation	Fleet and Freight Management Center
Commercial Vehicle Administration Center	accident report	Fleet and Freight Management Center
Commercial Vehicle Administration Center	border clearance status	Fleet and Freight Management Center
Commercial Vehicle Administration Center	citation	Fleet and Freight Management Center
Commercial Vehicle Administration Center	commercial vehicle permit	Fleet and Freight Management Center
Commercial Vehicle Administration Center	compliance review report	Fleet and Freight Management Center
Commercial Vehicle Administration Center	credentials information	Fleet and Freight Management Center
Commercial Vehicle Administration Center	credentials status information	Fleet and Freight Management Center
Commercial Vehicle Administration Center	cv driver record	Fleet and Freight Management Center
Commercial Vehicle Administration Center	route restrictions	Fleet and Freight Management Center
Commercial Vehicle Administration Center	safety inspection report	Fleet and Freight Management Center
Commercial Vehicle Administration Center	safety status information	Fleet and Freight Management Center
Commercial Vehicle Administration Center	trigger area	Fleet and Freight Management Center
Commercial Vehicle Administration Center	trigger area notification	Fleet and Freight Management Center
Commercial Vehicle OBE	commercial vehicle breach	Fleet and Freight Management Center
Commercial Vehicle OBE	commercial vehicle identities	Fleet and Freight Management Center
Commercial Vehicle OBE	commercial vehicle location data	Fleet and Freight Management Center
Commercial Vehicle OBE	cv driver safety status	Fleet and Freight Management Center
Commercial Vehicle OBE	driver alert response	Fleet and Freight Management Center
Commercial Vehicle OBE	driver log	Fleet and Freight Management Center
Commercial Vehicle OBE	driver to fleet request	Fleet and Freight Management Center
Commercial Vehicle OBE	freight equipment information	Fleet and Freight Management Center
Commercial Vehicle OBE	hazmat notification	Fleet and Freight Management Center
Commercial Vehicle OBE	on-board safety data	Fleet and Freight Management Center
Commercial Vehicle OBE	on-board vehicle data	Fleet and Freight Management Center
Commercial Vehicle OBE	route deviation alert	Fleet and Freight Management Center
Commercial Vehicle OBE	transport order status	Fleet and Freight Management Center
Commercial Vehicle OBE	trip log	Fleet and Freight Management Center
Commercial Vehicle OBE	vehicle environmental data	Fleet and Freight Management Center
Commercial Vehicle Service Provider Center	driver log	Fleet and Freight Management Center
Commercial Vehicle Service Provider Center	non-compliance report	Fleet and Freight Management Center
Driver Identification Card	cv driver credential	Fleet and Freight Management Center
Emergency Management Center	commercial vehicle incident response information	Fleet and Freight Management Center
Emergency Management Center	disable commercial vehicle	Fleet and Freight Management Center
Emergency Management Center	hazmat information request	Fleet and Freight Management Center
Enforcement Center	information on violators	Fleet and Freight Management Center
Fleet and Freight Management Center	fleet and freight threat information	Alerting and Advisory System
Fleet and Freight Management Center	expedited clearance registration	Border Inspection Administration Center
Fleet and Freight Management Center	manifest data	Border Inspection Administration Center
Fleet and Freight Management Center	audit data	Commercial Vehicle Administration Center
Fleet and Freight Management Center	credential application	Commercial Vehicle Administration Center
Fleet and Freight Management Center	cv repair status	Commercial Vehicle Administration Center
Fleet and Freight Management Center	driver log	Commercial Vehicle Administration Center
Fleet and Freight Management Center	malfunction report	Commercial Vehicle Administration Center
Fleet and Freight Management Center	on-board safety data	Commercial Vehicle Administration Center
Fleet and Freight Management Center	request for permit	Commercial Vehicle Administration Center
Fleet and Freight Management Center	tax filing	Commercial Vehicle Administration Center
Fleet and Freight Management Center	unique identifiers	Commercial Vehicle Administration Center
Fleet and Freight Management Center	commercial vehicle disable	Commercial Vehicle OBE
Fleet and Freight Management Center	container transport assignment	Commercial Vehicle OBE
Fleet and Freight Management Center	driver log	Commercial Vehicle OBE
Fleet and Freight Management Center	driver log carrier input	Commercial Vehicle OBE
Fleet and Freight Management Center	expected driver identity characteristics	Commercial Vehicle OBE
Fleet and Freight Management Center	fleet to driver update	Commercial Vehicle OBE
Fleet and Freight Management Center	hazmat information	Commercial Vehicle OBE
Fleet and Freight Management Center	road weather advisories	Commercial Vehicle OBE
Fleet and Freight Management Center	route deviation alert	Commercial Vehicle OBE
Fleet and Freight Management Center	safety inspection record	Commercial Vehicle OBE
Fleet and Freight Management Center	trigger area	Commercial Vehicle OBE
Fleet and Freight Management Center	trigger area notification	Commercial Vehicle OBE
Fleet and Freight Management Center	trip identification number	Commercial Vehicle OBE
Fleet and Freight Management Center	driver log carrier input	Commercial Vehicle Service Provider Center
Fleet and Freight Management Center	commercial vehicle incident notification	Emergency Management Center
Fleet and Freight Management Center	commercial vehicle location data	Emergency Management Center
Fleet and Freight Management Center	hazmat information	Emergency Management Center
Fleet and Freight Management Center	hazmat notification	Emergency Management Center
Fleet and Freight Management Center	fleet and freight alerts	Fleet-Freight Manager
Fleet and Freight Management Center	fleet status	Fleet-Freight Manager
Fleet and Freight Management Center	container pickup confirmation	Freight Consolidation Station
Fleet and Freight Management Center	available truck capacity	Freight Distribution and Logistics Center
Fleet and Freight Management Center	booking status	Freight Distribution and Logistics Center
Fleet and Freight Management Center	freight transportation status	Freight Distribution and Logistics Center
Fleet and Freight Management Center	load appointment status	Freight Distribution and Logistics Center
Fleet and Freight Management Center	freight monitoring parameters	Freight Equipment
Fleet and Freight Management Center	available truck capacity	Intermodal Customer System
Fleet and Freight Management Center	booking status	Intermodal Customer System
Fleet and Freight Management Center	freight breach	Intermodal Customer System
Fleet and Freight Management Center	freight transportation status	Intermodal Customer System
Fleet and Freight Management Center	booking status	Intermodal Terminal
Fleet and Freight Management Center	container delivery request	Intermodal Terminal
Fleet and Freight Management Center	container pickup confirmation	Intermodal Terminal
Fleet and Freight Management Center	freight transportation status	Intermodal Terminal
Fleet and Freight Management Center	terminal reservation request	Intermodal Terminal
Fleet and Freight Management Center	rest area parking request	Parking Management Center
Fleet and Freight Management Center	toll data request	Payment Administration Center
Fleet and Freight Management Center	commercial vehicle trip information	Transportation Information Center
Fleet and Freight Management Center	cv trip request	Transportation Information Center
Fleet and Freight Management Center	freight traveler information preferences	Transportation Information Center
Fleet and Freight Management Center	toll data request	Transportation Information Center
Fleet-Freight Manager	alert response	Fleet and Freight Management Center
Fleet-Freight Manager	fleet manager inquiry	Fleet and Freight Management Center
Freight Consolidation Station	container pickup request	Fleet and Freight Management Center
Freight Distribution and Logistics Center	freight transport payment information	Fleet and Freight Management Center
Freight Distribution and Logistics Center	load matching info	Fleet and Freight Management Center
Freight Equipment	container seal status	Fleet and Freight Management Center
Freight Equipment	freight equipment information	Fleet and Freight Management Center
Intermodal Customer System	available loads	Fleet and Freight Management Center
Intermodal Customer System	breach response	Fleet and Freight Management Center
Intermodal Customer System	freight transport booking	Fleet and Freight Management Center
Intermodal Customer System	freight transportation status	Fleet and Freight Management Center
Intermodal Terminal	container delivery confirmation	Fleet and Freight Management Center
Intermodal Terminal	container pickup request	Fleet and Freight Management Center
Intermodal Terminal	freight transportation status	Fleet and Freight Management Center
Intermodal Terminal	intermodal terminal status	Fleet and Freight Management Center
Intermodal Terminal	terminal reservation	Fleet and Freight Management Center
Parking Management Center	rest area parking information	Fleet and Freight Management Center
Payment Administration Center	toll data	Fleet and Freight Management Center
Traffic Management Center	road network conditions	Fleet and Freight Management Center
Transportation Information Center	freight-specific traveler information	Fleet and Freight Management Center
Transportation Information Center	incident information for public	Fleet and Freight Management Center
Transportation Information Center	parking availability	Fleet and Freight Management Center
Transportation Information Center	parking plan	Fleet and Freight Management Center
Transportation Information Center	road network conditions	Fleet and Freight Management Center
Transportation Information Center	road network environmental situation data	Fleet and Freight Management Center
Transportation Information Center	road weather advisories	Fleet and Freight Management Center
Transportation Information Center	toll data	Fleet and Freight Management Center

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class	Confidentiality	Integrity	Availability	Service Package
Class 5	High	High	High	CV Driver Security Authentication
Class 5	High	High	High	Fleet and Freight Security
Class 5	High	High	High	HAZMAT Management
Class 5	High	High	High	Incident Scene Pre-Arrival Staging Guidance for Emergency Responders
Class 4	High	High	Moderate	Carrier Operations and Fleet Management
Class 4	High	High	Moderate	Commercial Vehicle Parking
Class 4	High	High	Moderate	CV Administrative Processes
Class 4	High	High	Moderate	Electronic Clearance
Class 4	High	High	Moderate	Electronic Driver Logs
Class 4	High	High	Moderate	Freight Administration
Class 4	High	High	Moderate	Freight Drayage Optimization
Class 4	High	High	Moderate	Freight Signal Priority
Class 4	High	High	Moderate	Freight-Specific Dynamic Travel Planning
Class 4	High	High	Moderate	International Border Electronic Clearance
Class 4	High	High	Moderate	Roadside CVO Safety
Class 4	High	High	Moderate	Smart Roadside and Virtual WIM
Class 3	Low	High	Moderate	Road Weather Information for Freight Carriers
Class 2	Moderate	Moderate	Moderate	Electronic Toll Collection
Class 2	Moderate	Moderate	Moderate	Intelligent Access Program
Class 2	Moderate	Moderate	Moderate	Intelligent Access Program - Weight Monitoring
Class 2	Moderate	Moderate	Moderate	Intelligent Speed Compliance
Class 2	Moderate	Moderate	Moderate	International Border Registration
Class 2	Moderate	Moderate	Moderate	Loading Zone Management

This interfaces diagram had many interfaces and so was broken up into a Subsystem and Terminator interfaces diagram.

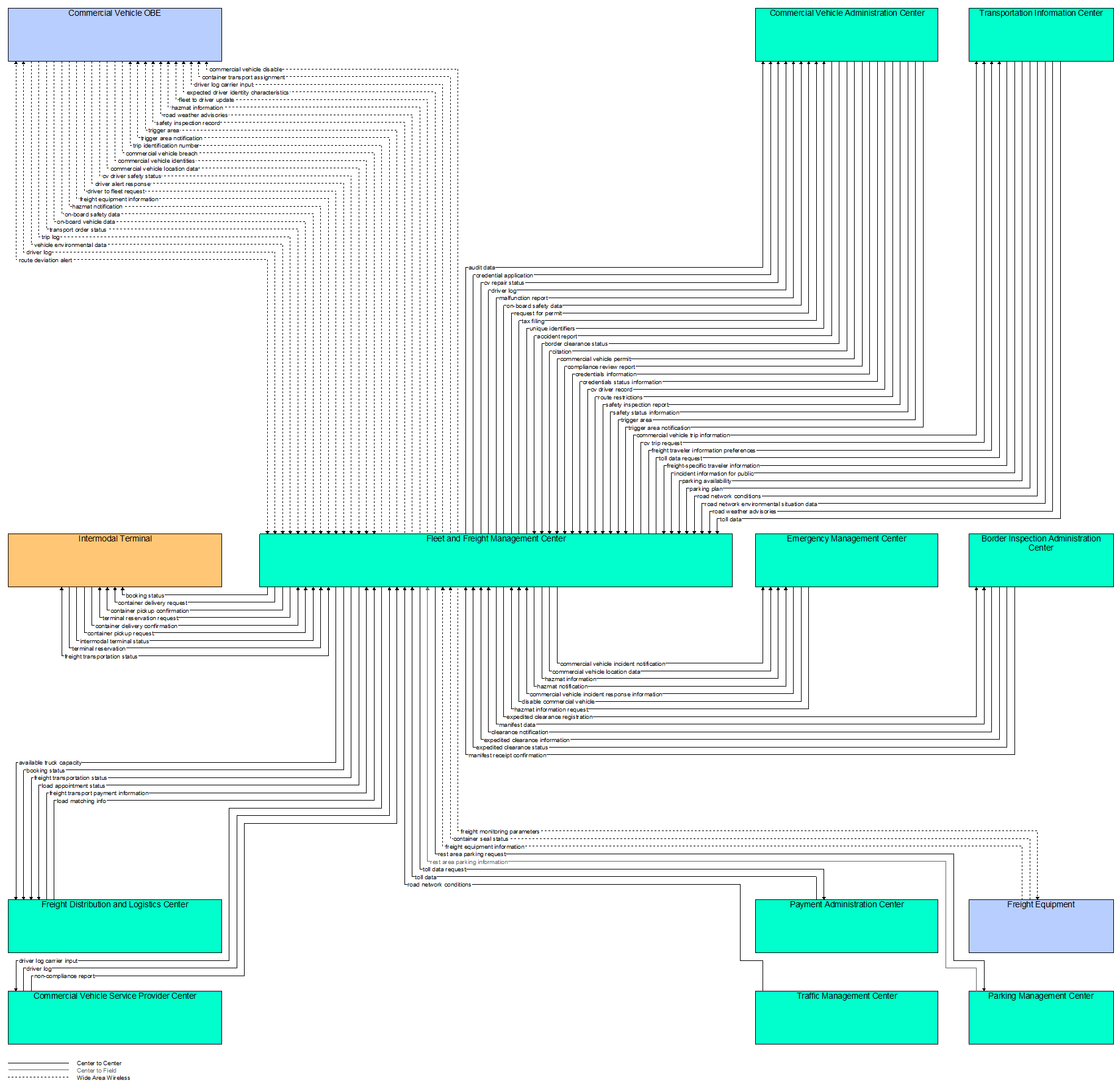

Subsystem Interfaces Diagram

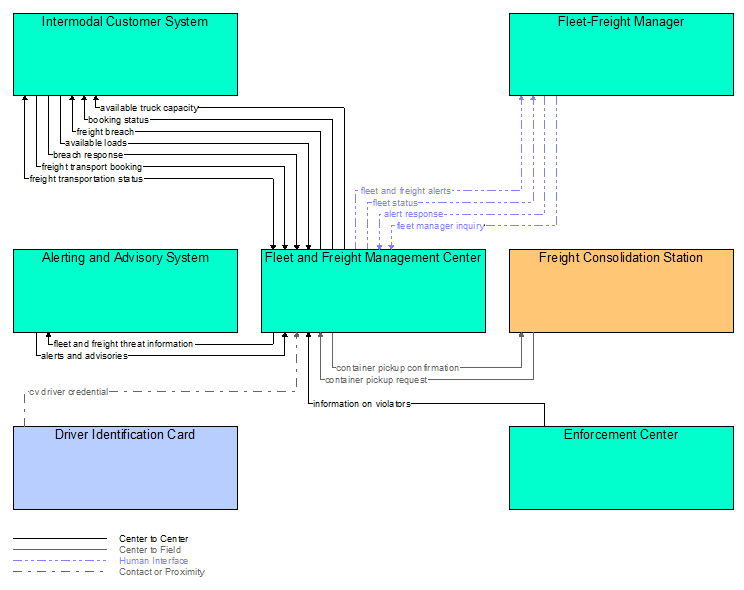

Terminator Interfaces Diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
