Kind: Subsystem

Class: Field

Type: System

Commercial Vehicle Check Equipment

Overview

'Commercial Vehicle Check Equipment' supports automated vehicle identification at mainline speeds for credential checking, roadside safety inspections, and weigh-in-motion using two-way data exchange. These capabilities include providing warnings to the commercial vehicle drivers, their fleet managers, and proper authorities of any safety problems that have been identified, accessing and examining historical safety data, and automatically deciding whether to allow the vehicle to pass or require it to stop with operator manual override. Commercial Vehicle Check Equipment also provides supplemental inspection services such as expedited brake inspections, the use of operator hand-held devices, mobile screening sites, on-board safety database access, and the enrollment of vehicles and carriers in the electronic clearance program.



This physical object is included in the following Service Packages:

Triples

Source Flow Destination
Border Inspection System inspection results Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center accident report Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center border agency clearance results Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center carrier participation report Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center citation Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center commercial vehicle permit information Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center credentials information Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center credentials status information Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center cv driver record Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center driver log Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center safety inspection report Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center safety status information Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center targeted list Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center transportation border clearance assessment Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center trigger area notification Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center trigger control Commercial Vehicle Check Equipment
Commercial Vehicle Administration Center trip declaration identifiers Commercial Vehicle Check Equipment
Commercial Vehicle Check Equipment accident report Commercial Vehicle Administration Center
Commercial Vehicle Check Equipment border clearance event records Commercial Vehicle Administration Center
Commercial Vehicle Check Equipment citation Commercial Vehicle Administration Center
Commercial Vehicle Check Equipment commercial vehicle violation notification Commercial Vehicle Administration Center
Commercial Vehicle Check Equipment daily site activity data Commercial Vehicle Administration Center
Commercial Vehicle Check Equipment driver log Commercial Vehicle Administration Center
Commercial Vehicle Check Equipment on-board safety data Commercial Vehicle Administration Center
Commercial Vehicle Check Equipment request for driver log Commercial Vehicle Administration Center
Commercial Vehicle Check Equipment roadside data message Commercial Vehicle Administration Center
Commercial Vehicle Check Equipment safety inspection report Commercial Vehicle Administration Center
Commercial Vehicle Check Equipment weigh-in-motion information Commercial Vehicle Administration Center
Commercial Vehicle Check Equipment CVO pass/pull-in message Commercial Vehicle Driver
Commercial Vehicle Check Equipment CVO inspector information Commercial Vehicle Inspector
Commercial Vehicle Check Equipment border clearance data request Commercial Vehicle OBE
Commercial Vehicle Check Equipment border clearance event Commercial Vehicle OBE
Commercial Vehicle Check Equipment border pass/pull-in Commercial Vehicle OBE
Commercial Vehicle Check Equipment clearance notification Commercial Vehicle OBE
Commercial Vehicle Check Equipment electronic lock data request Commercial Vehicle OBE
Commercial Vehicle Check Equipment electronic screening request Commercial Vehicle OBE
Commercial Vehicle Check Equipment pass/pull-in Commercial Vehicle OBE
Commercial Vehicle Check Equipment request tag data Commercial Vehicle OBE
Commercial Vehicle Check Equipment safety inspection record Commercial Vehicle OBE
Commercial Vehicle Check Equipment safety inspection request Commercial Vehicle OBE
Commercial Vehicle Check Equipment screening event record Commercial Vehicle OBE
Commercial Vehicle Check Equipment trigger area notification Commercial Vehicle OBE
Commercial Vehicle Check Equipment request for driver log Commercial Vehicle Service Provider Center
Commercial Vehicle Check Equipment security credentials Commercial Vehicle Service Provider Center
Commercial Vehicle Check Equipment commercial vehicle incident notification Emergency Management Center
Commercial Vehicle Check Equipment commercial vehicle violation notification Enforcement Center
Commercial Vehicle Check Equipment container seal interrogation Freight Equipment
Commercial Vehicle Check Equipment request tag data Freight Equipment
Commercial Vehicle Check Equipment request driver log address Security Credentials Registry
Commercial Vehicle Check Equipment request security credentials Security Credentials Registry
Commercial Vehicle Inspector CVC override mode Commercial Vehicle Check Equipment
Commercial Vehicle Inspector CVO inspector input Commercial Vehicle Check Equipment
Commercial Vehicle OBE border clearance data Commercial Vehicle Check Equipment
Commercial Vehicle OBE commercial vehicle disable status Commercial Vehicle Check Equipment
Commercial Vehicle OBE commercial vehicle identities Commercial Vehicle Check Equipment
Commercial Vehicle OBE container seal status Commercial Vehicle Check Equipment
Commercial Vehicle OBE driver log Commercial Vehicle Check Equipment
Commercial Vehicle OBE electronic lock data Commercial Vehicle Check Equipment
Commercial Vehicle OBE expected driver identity characteristics Commercial Vehicle Check Equipment
Commercial Vehicle OBE freight equipment information Commercial Vehicle Check Equipment
Commercial Vehicle OBE on-board safety data Commercial Vehicle Check Equipment
Commercial Vehicle OBE safety inspection record Commercial Vehicle Check Equipment
Commercial Vehicle OBE screening event record Commercial Vehicle Check Equipment
Commercial Vehicle OBE tag data Commercial Vehicle Check Equipment
Commercial Vehicle OBE unique identifiers Commercial Vehicle Check Equipment
Commercial Vehicle Service Provider Center driver log Commercial Vehicle Check Equipment
Driver Identification Card cv driver credential Commercial Vehicle Check Equipment
Enforcement Center information on violators Commercial Vehicle Check Equipment
Freight Equipment container manifest Commercial Vehicle Check Equipment
Freight Equipment container seal status Commercial Vehicle Check Equipment
Freight Equipment freight equipment information Commercial Vehicle Check Equipment
Freight Equipment tag data Commercial Vehicle Check Equipment
Security Credentials Registry driver log address Commercial Vehicle Check Equipment
Security Credentials Registry security credentials Commercial Vehicle Check Equipment

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class Confidentiality Integrity Availability Service Package
Class 4 High High Moderate CV Driver Security Authentication
Class 4 High High Moderate Electronic Clearance
Class 4 High High Moderate Electronic Driver Logs
Class 4 High High Moderate International Border Electronic Clearance
Class 4 High High Moderate Roadside CVO Safety
Class 4 High High Moderate Roadside HAZMAT Security Detection and Mitigation
Class 4 High High Moderate Smart Roadside and Virtual WIM
Class 3 Moderate High Moderate Fleet and Freight Security
Class 2 Moderate Moderate Low CV Administrative Processes

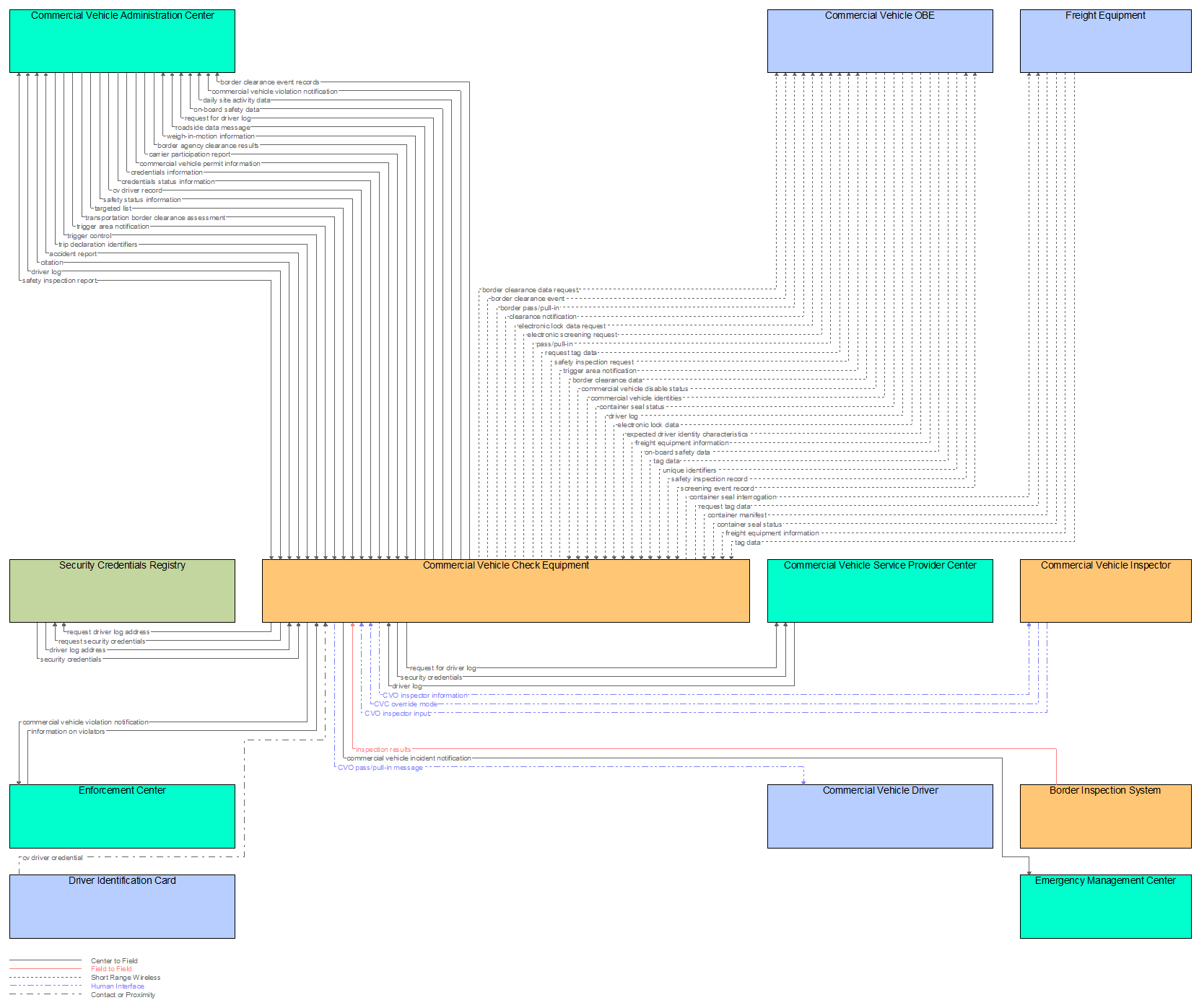

Interfaces Diagram

Interfaces diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
