Security Credentials Registry

Overview
Triples
Security
Interfaces Diagram
Standards

Overview

The 'Security Credentials Registry' is an Australia-specific physical object that provides access information (e.g., the network address) of the commercial vehicle driver logs and security credentials that enable secure traceable access to driver logs. The SCR receives frequent updates of driver activity to determine the CVOBE-SP(s) that store the driver logs. In terms of US physical objects, the SCR is a Cooperative ITS Credentials Management System (CCMS) with included Object Registration and Discovery Service (ORDS) functionality and specific driver log monitoring extensions.

This physical object does not have any functionality defined in ARC-IT, as it exists outside the system functional boundary.

Australia Physical Object

This physical object is included in the following Service Packages:

CVO16: Electronic Driver Logs

Triples

Source	Flow	Destination
Commercial Vehicle Check Equipment	request driver log address	Security Credentials Registry
Commercial Vehicle Check Equipment	request security credentials	Security Credentials Registry
Commercial Vehicle Service Provider Center	check driver log activity	Security Credentials Registry
Commercial Vehicle Service Provider Center	update driver log activity	Security Credentials Registry
Security Credentials Registry	driver log address	Commercial Vehicle Check Equipment
Security Credentials Registry	security credentials	Commercial Vehicle Check Equipment

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class	Confidentiality	Integrity	Availability	Service Package
Class 4	High	High	Moderate	Electronic Driver Logs

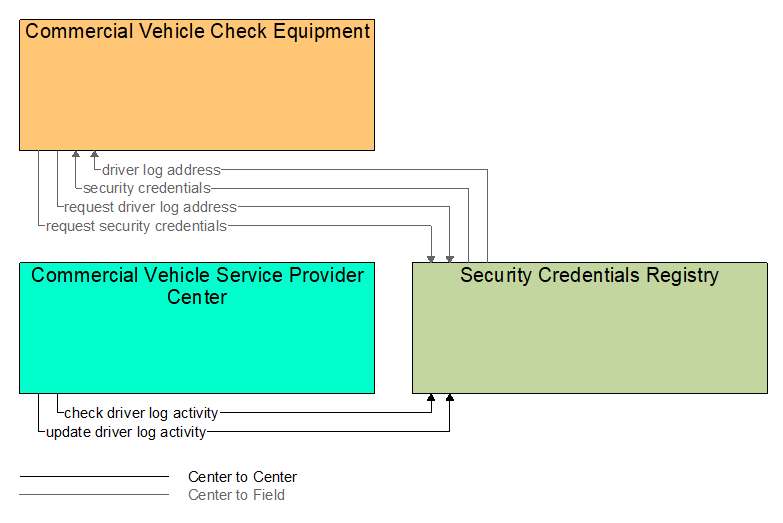

Interfaces Diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
