Kind: Terminator

Class: Center

Type: System

Weather Service System

Overview

The 'Weather Service System' provides weather, hydrologic, and climate information and warnings of hazardous weather including thunderstorms, flooding, hurricanes, tornadoes, winter weather, tsunamis, and climate events. It provides atmospheric weather observations and forecasts that are collected and derived by the National Weather Service, private sector providers, and various research organizations. The interface provides formatted weather data products suitable for on-line processing and integration with other ITS data products as well as Doppler radar images, satellite images, severe storm warnings, and other products that are formatted for presentation to various ITS users.

This physical object does not have any functionality defined in ARC-IT, as it exists outside the system functional boundary.



This physical object is included in the following Service Packages:

Triples

Source Flow Destination
Archived Data System archive status Weather Service System
ITS Roadway Equipment environmental sensor data Weather Service System
Maint and Constr Management Center environmental conditions data Weather Service System
Maint and Constr Management Center road weather information Weather Service System
Traffic Management Center environmental conditions data Weather Service System
Traffic Management Center road network environmental situation data Weather Service System
Transportation Information Center road network environmental situation data Weather Service System
Weather Service System weather archive data Archived Data System
Weather Service System weather information Emergency Management Center
Weather Service System weather information Emissions Management Center
Weather Service System environmental conditions data status Maint and Constr Management Center
Weather Service System qualified environmental conditions data Maint and Constr Management Center
Weather Service System weather information Maint and Constr Management Center
Weather Service System environmental conditions data status Traffic Management Center
Weather Service System qualified environmental conditions data Traffic Management Center
Weather Service System weather information Traffic Management Center
Weather Service System weather information Transit Management Center
Weather Service System qualified environmental conditions data Transportation Information Center
Weather Service System weather information Transportation Information Center

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class Confidentiality Integrity Availability Service Package
Class 4 High High Moderate Comprehensive Transportation Data Warehouse
Class 4 High High Moderate ITS Data Warehouse
Class 1 Low Moderate Moderate Broadcast Traveler Information
Class 1 Low Moderate Moderate C-ITS Local Broadcast
Class 1 Low Moderate Moderate C-ITS Vehicle Reported
Class 1 Low Moderate Moderate Disaster Traveler Information
Class 1 Low Moderate Moderate Early Warning System
Class 1 Low Moderate Moderate Emergency Call-Taking and Dispatch
Class 1 Low Moderate Low Emissions Monitoring
Class 1 Low Moderate Moderate Environmental Sensor Stations
Class 1 Low Moderate Moderate Freight-Specific Dynamic Travel Planning
Class 1 Low Moderate Low Low Emissions Zone Management
Class 1 Low Moderate Moderate Maint and Constr Vehicle Reported
Class 1 Low Moderate Moderate Personalized Traveler Information
Class 1 Low Moderate Moderate Road Weather Information for Freight Carriers
Class 1 Low Moderate Moderate Road Weather Motorist Alert and Warning
Class 1 Low Moderate Moderate Roadway Maintenance and Construction
Class 1 Low Moderate Moderate Weather Data Collection
Class 1 Low Moderate Moderate Weather Information Processing and Distribution
Class 1 Low Moderate Moderate Wide Area Broadcast
Class 1 Low Moderate Moderate Winter Maintenance

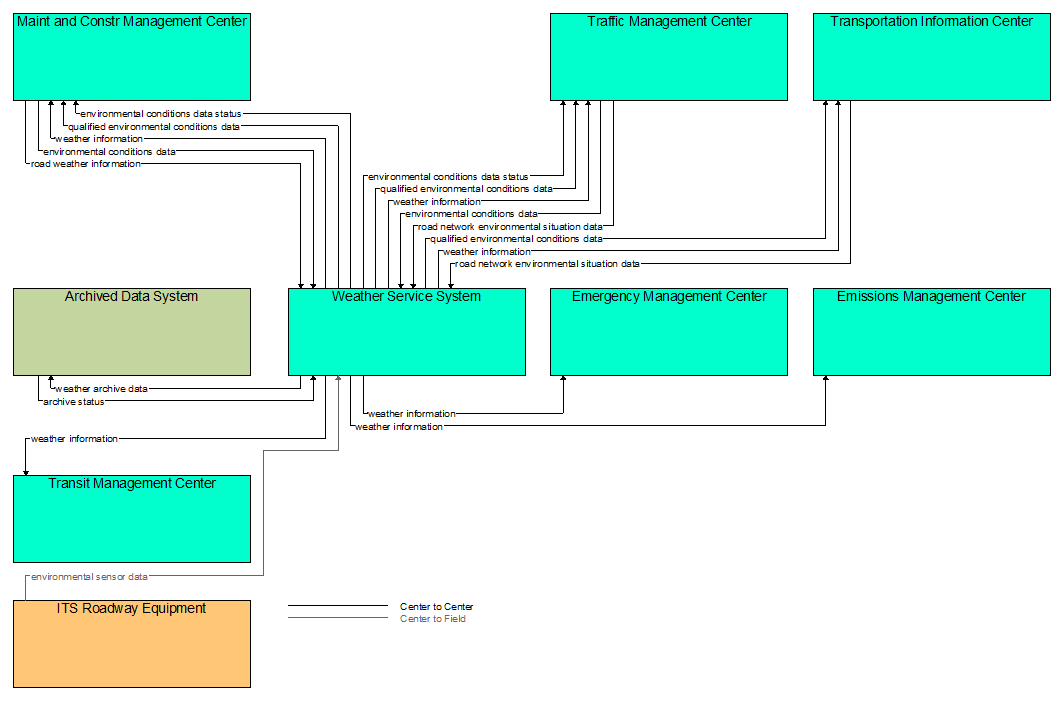

Interfaces Diagram

Interfaces diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
