Kind: Subsystem

Class: Vehicle

Type: System

Maint and Constr Vehicle OBE

Overview

The 'Maint and Constr Vehicle OBE' resides in a maintenance, construction, or other specialized service vehicle or equipment and provides the processing, storage, and communications functions necessary to support highway maintenance and construction. All types of maintenance and construction vehicles are covered, including heavy equipment, supervisory vehicles, unmanned remote controlled field maintenance robots, and sensory platforms that may be wheeled or low altitude aerial vehicles (e.g. drones, balloons). The MCV OBE provides two-way communications between drivers/operators and dispatchers and maintains and communicates current location and status information. A wide range of operational status is monitored, measured, and made available, depending on the specific type of vehicle or equipment. A snow plow for example, would monitor whether the plow is up or down and material usage information. The Maint and Constr Vehicle OBE may also contain capabilities to monitor vehicle systems to support maintenance of the vehicle itself. A separate 'Vehicle OBE' physical object supports the general vehicle safety and driver information capabilities that apply to all vehicles, including maintenance and construction vehicles. The Maint and Constr Vehicle OBE supplements these general capabilities with capabilities that are specific to maintenance and construction vehicles.



This physical object is included in the following Service Packages:

Triples

Source Flow Destination
Basic Maint and Constr Vehicle maint and constr material information Maint and Constr Vehicle OBE
Basic Maint and Constr Vehicle maint and constr vehicle measures Maint and Constr Vehicle OBE
Connected Vehicle Roadside Equipment barrier system status Maint and Constr Vehicle OBE
Connected Vehicle Roadside Equipment signal priority status Maint and Constr Vehicle OBE
Connected Vehicle Roadside Equipment work zone warning notification Maint and Constr Vehicle OBE
Field asset ID Maint and Constr Vehicle OBE
ITS Roadway Equipment environmental sensor data Maint and Constr Vehicle OBE
ITS Roadway Equipment infrastructure monitoring sensor data Maint and Constr Vehicle OBE
ITS Roadway Equipment roadway dynamic signage status Maint and Constr Vehicle OBE
ITS Roadway Equipment traffic detector data Maint and Constr Vehicle OBE
ITS Roadway Equipment traffic image meta data Maint and Constr Vehicle OBE
ITS Roadway Equipment traffic images Maint and Constr Vehicle OBE
Location and Time Data Source location and time Maint and Constr Vehicle OBE
Maint and Constr Field Personnel personnel monitoring Maint and Constr Vehicle OBE
Maint and Constr Management Center asset location safety warning Maint and Constr Vehicle OBE
Maint and Constr Management Center environmental sensor control Maint and Constr Vehicle OBE
Maint and Constr Management Center maint and constr dispatch information Maint and Constr Vehicle OBE
Maint and Constr Management Center maint and constr vehicle system control Maint and Constr Vehicle OBE
Maint and Constr Management Center work zone warning device control Maint and Constr Vehicle OBE
Maint and Constr Vehicle OBE maint and constr vehicle control Basic Maint and Constr Vehicle
Maint and Constr Vehicle OBE barrier system control Connected Vehicle Roadside Equipment
Maint and Constr Vehicle OBE local signal priority request Connected Vehicle Roadside Equipment
Maint and Constr Vehicle OBE work zone warning notification Connected Vehicle Roadside Equipment
Maint and Constr Vehicle OBE driver information Driver
Maint and Constr Vehicle OBE maint and constr vehicle conditions Equipment Repair Facility
Maint and Constr Vehicle OBE environmental sensor control ITS Roadway Equipment
Maint and Constr Vehicle OBE environmental sensor data ITS Roadway Equipment
Maint and Constr Vehicle OBE infrastructure monitoring sensor control ITS Roadway Equipment
Maint and Constr Vehicle OBE local signal priority request ITS Roadway Equipment
Maint and Constr Vehicle OBE roadway dynamic signage data ITS Roadway Equipment
Maint and Constr Vehicle OBE traffic detector control ITS Roadway Equipment
Maint and Constr Vehicle OBE video surveillance control ITS Roadway Equipment
Maint and Constr Vehicle OBE work zone warning Maint and Constr Field Personnel
Maint and Constr Vehicle OBE asset locations Maint and Constr Management Center
Maint and Constr Vehicle OBE environmental sensor data Maint and Constr Management Center
Maint and Constr Vehicle OBE infrastructure conditions data Maint and Constr Management Center
Maint and Constr Vehicle OBE maint and constr dispatch status Maint and Constr Management Center
Maint and Constr Vehicle OBE maint and constr vehicle conditions Maint and Constr Management Center
Maint and Constr Vehicle OBE maint and constr vehicle location data Maint and Constr Management Center
Maint and Constr Vehicle OBE maint and constr vehicle operational data Maint and Constr Management Center
Maint and Constr Vehicle OBE work zone status Maint and Constr Management Center
Maint and Constr Vehicle OBE work zone warning status Maint and Constr Management Center
Maint and Constr Vehicle OBE maint and constr vehicle condition presentation Maint and Constr Vehicle Operator
Maint and Constr Vehicle OBE maint and constr vehicle operator presentation Maint and Constr Vehicle Operator
Maint and Constr Vehicle OBE maint and constr vehicle status coordination Other MCV OBEs
Maint and Constr Vehicle OBE work zone warning notification Other MCV OBEs
Maint and Constr Vehicle OBE local METR information for users Personal Information Device
Maint and Constr Vehicle OBE asset locations Personnel Device
Maint and Constr Vehicle OBE personnel safety warning Personnel Device
Maint and Constr Vehicle OBE remote vehicle status Personnel Device
Maint and Constr Vehicle OBE local METR information for users Vehicle
Maint and Constr Vehicle OBE special vehicle alert Vehicle
Maint and Constr Vehicle OBE vehicle signage data Vehicle
Maint and Constr Vehicle Operator driver environmental input Maint and Constr Vehicle OBE
Maint and Constr Vehicle Operator maint and constr vehicle operator input Maint and Constr Vehicle OBE
METR Regulation System METR management information Maint and Constr Vehicle OBE
METR System METR management information Maint and Constr Vehicle OBE
Other MCV OBEs maint and constr vehicle status coordination Maint and Constr Vehicle OBE
Other MCV OBEs work zone warning notification Maint and Constr Vehicle OBE
Personnel Device personnel location Maint and Constr Vehicle OBE
Personnel Device remote vehicle control commands Maint and Constr Vehicle OBE
Roadway Environment environmental conditions Maint and Constr Vehicle OBE

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class Confidentiality Integrity Availability Service Package
Class 5 Moderate Moderate High Maintenance and Construction Vehicle and Equipment Tracking
Class 4 High High Moderate Infrastructure Monitoring
Class 3 Moderate High Moderate Management of Electronic Traffic Regulations (METR)
Class 3 Moderate High Moderate Roadway Closure Management
Class 3 Not Applicable High Moderate Special Vehicle Alert
Class 3 Moderate High Moderate Work Zone Safety Monitoring
Class 2 Moderate Moderate Moderate Active RFID Technologies
Class 2 Moderate Moderate Moderate Active RFID Technologies and Automated Vehicle Collection
Class 2 Moderate Moderate Moderate Active RFID Technologies and Remote Control
Class 2 Moderate Moderate Moderate Asset Tracking
Class 2 Moderate Moderate Moderate Maint and Constr Vehicle Reported
Class 2 Moderate Moderate Moderate Maintenance and Construction Signal Priority
Class 2 Moderate Moderate Moderate Maintenance and Construction Vehicle Maintenance
Class 2 Moderate Moderate Moderate One-Way Convoy Driving
Class 2 Moderate Moderate Moderate Roadway Maintenance and Construction
Class 2 Moderate Moderate Moderate Weather Data Collection
Class 2 Moderate Moderate Moderate Winter Maintenance
Class 2 Moderate Moderate Moderate Work Zone Management
Class 1 Low Low Moderate Asset Tracking Based Infrastructure Warnings
Class 1 Low Moderate Moderate In-Vehicle Signage

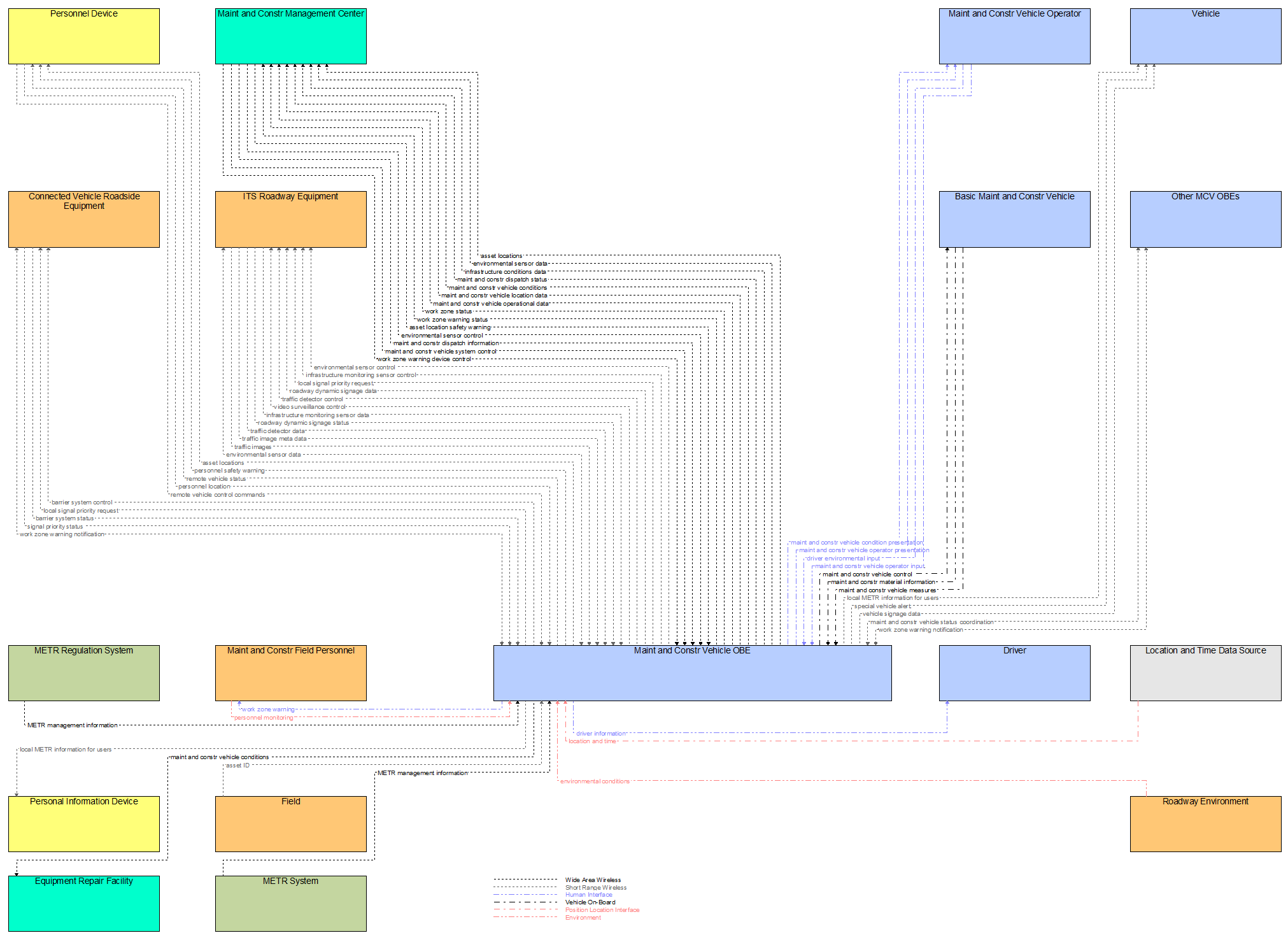

Interfaces Diagram

Interfaces diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
