Other MCV OBEs

Overview
Triples
Security
Interfaces Diagram
Standards

Overview

This represents on-board equipment on other maintenance and construction vehicles. It provides a source and destination for ITS information transfers between maintenance and construction vehicles. These information transfers allow vehicle operational status, environmental information, and work zone intrusion warnings or alarms to be shared between vehicles.

This physical object does not have any functionality defined in ARC-IT, as it exists outside the system functional boundary.

This physical object is included in the following Service Packages:

Triples

Source	Flow	Destination
Maint and Constr Vehicle OBE	maint and constr vehicle status coordination	Other MCV OBEs
Maint and Constr Vehicle OBE	work zone warning notification	Other MCV OBEs
Other MCV OBEs	maint and constr vehicle status coordination	Maint and Constr Vehicle OBE
Other MCV OBEs	work zone warning notification	Maint and Constr Vehicle OBE

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class	Confidentiality	Integrity	Availability	Service Package
Class 1	Low	Moderate	Low	One-Way Convoy Driving
Class 1	Low	Moderate	Low	Winter Maintenance
Class 1	Not Applicable	Moderate	Moderate	Work Zone Safety Monitoring

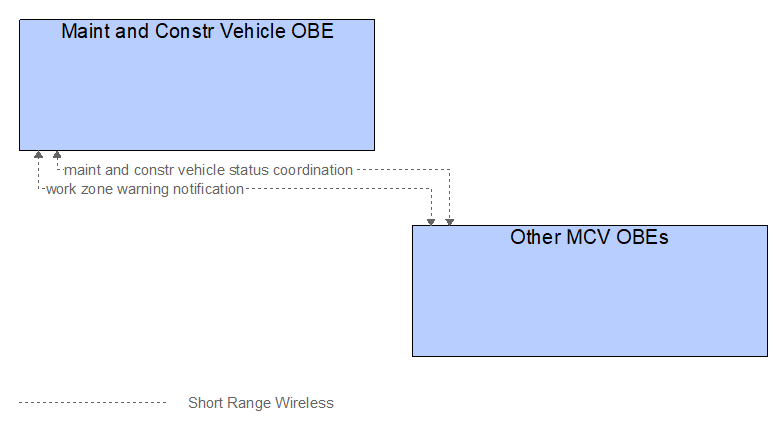

Interfaces Diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
