Kind: Subsystem
Class: Field
Type: System
Security Monitoring Equipment
Overview
'Security Monitoring Equipment' includes surveillance and sensor equipment used to provide enhanced security and safety for transportation facilities or infrastructure. The equipment is located in non-public areas of transportation facilities (e.g. maintenance and transit yards), on or near non-roadway parts of the transportation infrastructure (e.g. transit railway and guideways), and in public areas (e.g., transit stops, transit stations, intermodal terminals). This equipment also includes surveillance and sensor equipment located on or near major roadway features such as bridges, tunnels, and interchanges, when the equipment's primary function is one of security and safety. If the primary function of the equipment is traffic surveillance or incident detection, then the surveillance or sensors would be covered as part of the 'ITS Roadway Equipment'. The surveillance equipment includes video (e.g. CCTV cameras) and/or audio systems. The sensor equipment includes threat sensors (e.g. chemical agent, toxic industrial chemical, biological, explosives, and radiological sensors), object detection (e.g. metal detectors), intrusion or motion detection, and infrastructure integrity monitoring (e.g. rail track continuity checking or bridge structural integrity monitoring). Limited processing of collected sensor and surveillance data is also included in this subsystem to support threat detection and classification.
This physical object is included in the following Service Packages:
Functionality
Functional Object |
---|
Field Secure Area Sensor Monitoring |
Field Secure Area Surveillance |
Triples
Security
This physical object has the following security levels for the associated service packages.
Physical Object Security | ||||
---|---|---|---|---|
Security Class | Confidentiality | Integrity | Availability | Service Package |
Class 4 | High | Moderate | Moderate | Transit Security |
Class 4 | High | Moderate | Moderate | Transportation Infrastructure Protection |
Class 2 | Moderate | Moderate | Moderate | Early Warning System |

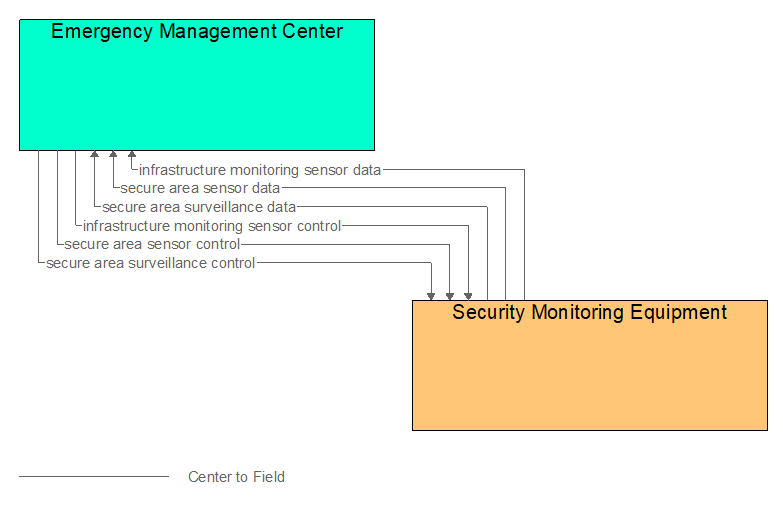

Interfaces Diagram
Standards
Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
