Kind: Terminator
Class: Field
Type: Environment
Potential Obstacles
Overview
'Potential Obstacles' represents any object that possesses the potential of being sensed and struck and thus also possesses physical attributes. Potential Obstacles include roadside obstructions, debris, animals, infrastructure elements (barrels, cones, barriers, etc.) or any other element that is in a potential path of the vehicle. Note that roadside objects and pieces of equipment that can become obstacles in a vehicle's path can include materials, coatings, or labels (e.g., barcodes) that will improve the performance of the vehicle-based sensors that must detect and avoid these obstacles. See also 'Vulnerable Road Users' that more specifically represents the physical properties of shared users of the roadway that must also be detected.
This physical object does not have any functionality defined in ARC-IT, as it exists outside the system functional boundary.
This physical object is included in the following Service Packages:
- TM12: Dynamic Roadway Warning
- VS01: Autonomous Vehicle Safety Systems
- VS02: V2V Basic Safety
- VS03: Situational Awareness
- VS13: Intersection Safety Warning and Collision Avoidance
- VS14: Cooperative Adaptive Cruise Control
- VS15: Infrastructure Enhanced Cooperative Adaptive Cruise Control
- VS16: Automated Vehicle Operations
Triples
Source | Flow | Destination |
---|---|---|
Potential Obstacles | physical presence | ITS Roadway Equipment |
Potential Obstacles | physical presence | Vehicle |
Security
This physical object has the following security levels for the associated service packages.
Physical Object Security | ||||
---|---|---|---|---|
Security Class | Confidentiality | Integrity | Availability | Service Package |
Security levels have not been defined yet. |

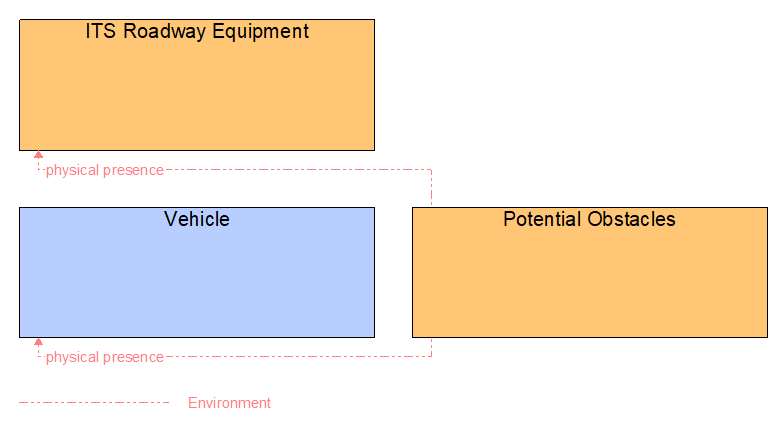

Interfaces Diagram
Standards
Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
