Kind: Terminator

Class: Center

Type: System

Emergency Telecommunications System

Overview

The 'Emergency Telecommunications System' represents the telecommunications systems that connect a caller with a Public Safety Answering Point (PSAP). These systems transparently support priority wireline and wireless caller access to the PSAP through 9-1-1 and other access mechanisms like 7 digit local access numbers, and motorist aid call boxes. The calls are routed to the appropriate PSAP, based on caller location when this information is available. When available, the caller's location and call-back number are also provided to the PSAP by this interface. This facility may also be used to notify the public - residents and businesses - of emergency situations using a Reverse 911 capability.

This physical object does not have any functionality defined in ARC-IT, as it exists outside the system functional boundary.



This physical object is included in the following Service Packages:

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class Confidentiality Integrity Availability Service Package
Class 2 Moderate Moderate Moderate Emergency Call-Taking and Dispatch
Class 1 Low Low Low Disaster Traveler Information
Class 1 Low Low Low Wide-Area Alert

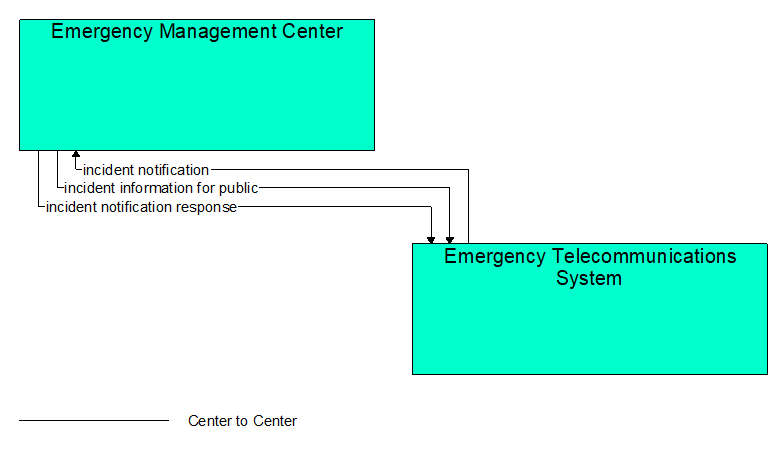

Interfaces Diagram

Interfaces diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
