Kind: Terminator
Class: Center
Type: Other System
Other Authorizing Centers
Overview
'Other Authorizing Centers' provides a source and destination for information flows between multiple authorizing centers that manage permissions for the Connected Vehicle Environment. The interface represented by this object enables coordination of permissions between centers in different regions, jurisdictions, or application areas.
This physical object does not have any functionality defined in ARC-IT, as it exists outside the system functional boundary.
This physical object is included in the following Service Packages:
Triples
Source | Flow | Destination |
---|---|---|
Authorizing Center | permission request coordination | Other Authorizing Centers |
Other Authorizing Centers | permission request coordination | Authorizing Center |
Security
This physical object has the following security levels for the associated service packages.
Physical Object Security | ||||
---|---|---|---|---|
Security Class | Confidentiality | Integrity | Availability | Service Package |
Class 4 | High | High | Moderate | Core Authorization |

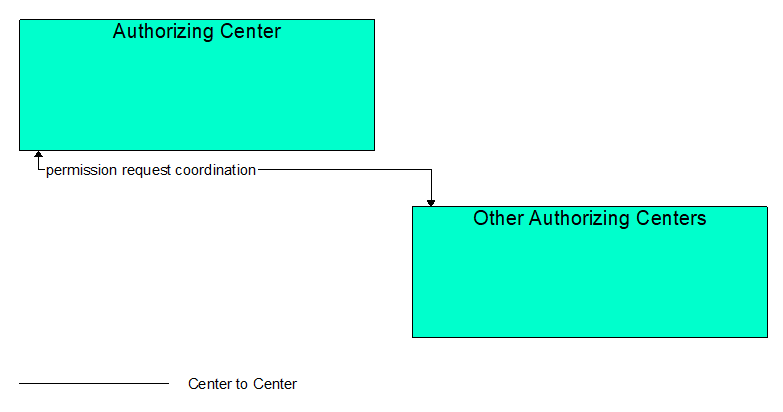

Interfaces Diagram
Standards
Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
