Kind: Subsystem

Class: Support

Type: System

Service Monitor System

Overview

The 'Service Monitor System' represents one or more center-based systems that provide monitoring, management and control services necessary to other applications and/or devices operating within the Connected Vehicle Environment. These support services enable other applications to provide transportation services.



This physical object is included in the following Service Packages:

Functionality

Functional Object
SM Device Management
SM Time Synchronization

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class Confidentiality Integrity Availability Service Package
Class 5 High High High Center Maintenance
Class 5 High High High Connected Vehicle System Monitoring and Management
Class 3 Not Applicable High Moderate Location and Time
Class 2 Moderate Moderate Moderate Field Equipment Maintenance
Class 2 Moderate Moderate Moderate Personnel Device Maintenance
Class 2 Moderate Moderate Moderate Vehicle Maintenance

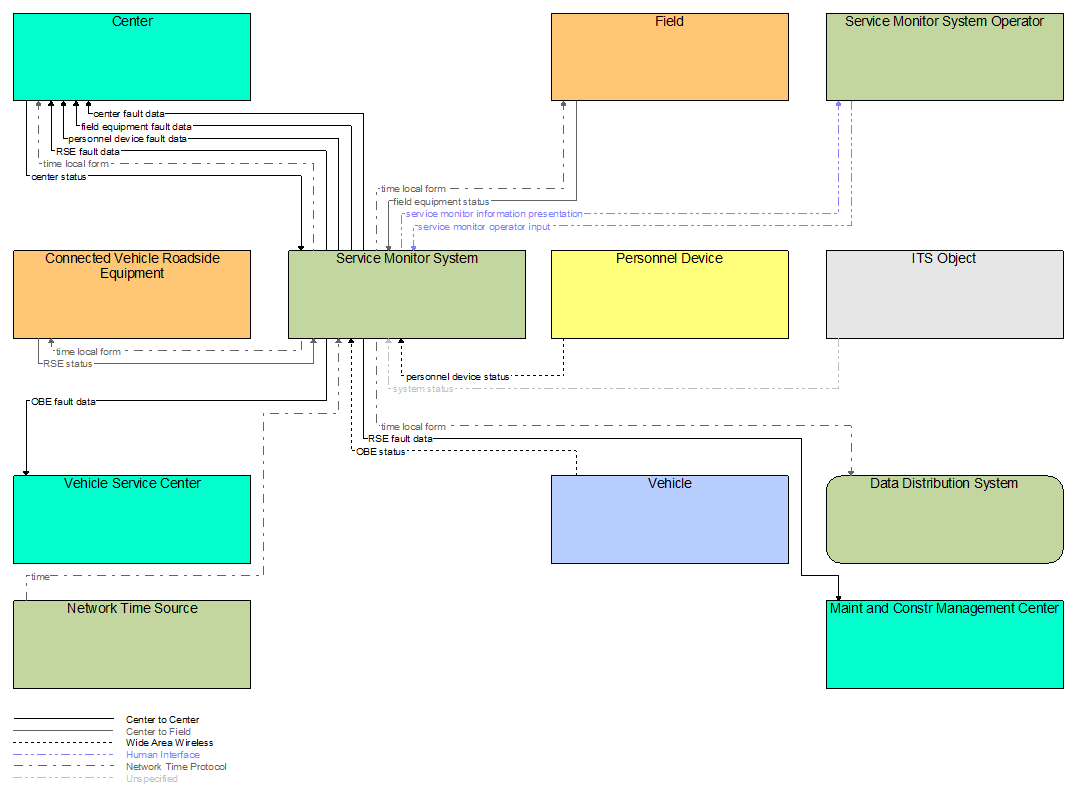

Interfaces Diagram

Interfaces diagram

Standards

The following table lists the standards associated with the physical object itself (as opposed to standards associated with an interface). For standards related to interfaces, see the specific information flow triple pages.

Name Title
NEMA TS 8 Cyber and Physical Security Cyber and Physical Security for Intelligent Transportation Systems
