Kind: Subsystem

Class: Center

Type: System

Center

Triples

Source Flow Destination
Authorizing Center permission request received Center
Center permission request Authorizing Center
Center permission update request Authorizing Center
Center center operator data Center Personnel
Center equipment control commands Connected Vehicle Roadside Equipment
Center RSE application information Connected Vehicle Roadside Equipment
Center RSE application install/upgrade Connected Vehicle Roadside Equipment
Center field equipment commands Field
Center field equipment configuration settings Field
Center field equipment software install/upgrade Field
Center permission application receipt ITS Object
Center equipment maintenance request Maint and Constr Management Center
Center map update notification Map Update System
Center personnel device commands Personnel Device
Center personnel device configuration settings Personnel Device
Center personnel device software install/upgrade Personnel Device
Center secure center operator data Remote Access Device
Center center status Service Monitor System
Center center equipment status Support Maintenance Equipment
Center service maintenance request Support Maintenance Equipment
Center Personnel center operator input Center
Connected Vehicle Roadside Equipment RSE application status Center
Field field equipment status Center
ITS Object device identification Center
ITS Object permission application Center
Location and Time Data Source location and time Center
Maint and Constr Management Center equipment maintenance status Center
Maint and Constr Management Center special vehicle restricted use information Center
Map Update System intersection geometry Center
Map Update System map updates Center
Network Time Source time Center
Personnel Device personnel device status Center
Remote Access Device secure center operator input Center
Service Monitor System center fault data Center
Service Monitor System field equipment fault data Center
Service Monitor System personnel device fault data Center
Service Monitor System RSE fault data Center
Service Monitor System time local form Center
Support Maintenance Equipment center equipment commands Center
Support Maintenance Equipment center equipment configuration settings Center
Support Maintenance Equipment center equipment software install/upgrade Center
Support Maintenance Equipment service maintenance status Center

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class Confidentiality Integrity Availability Service Package
Class 5 High High High Center Maintenance
Class 5 High High High Core Authorization
Class 5 Low Low High Location and Time
Class 4 High High Moderate Connected Vehicle System Monitoring and Management
Class 4 High High Moderate Personnel Device Maintenance
Class 3 Moderate High Moderate Field Equipment Maintenance
Class 3 Low High Moderate Map Management
Class 2 Moderate Moderate Moderate Remote Access
Class 2 Moderate Moderate Moderate Roadway Maintenance and Construction

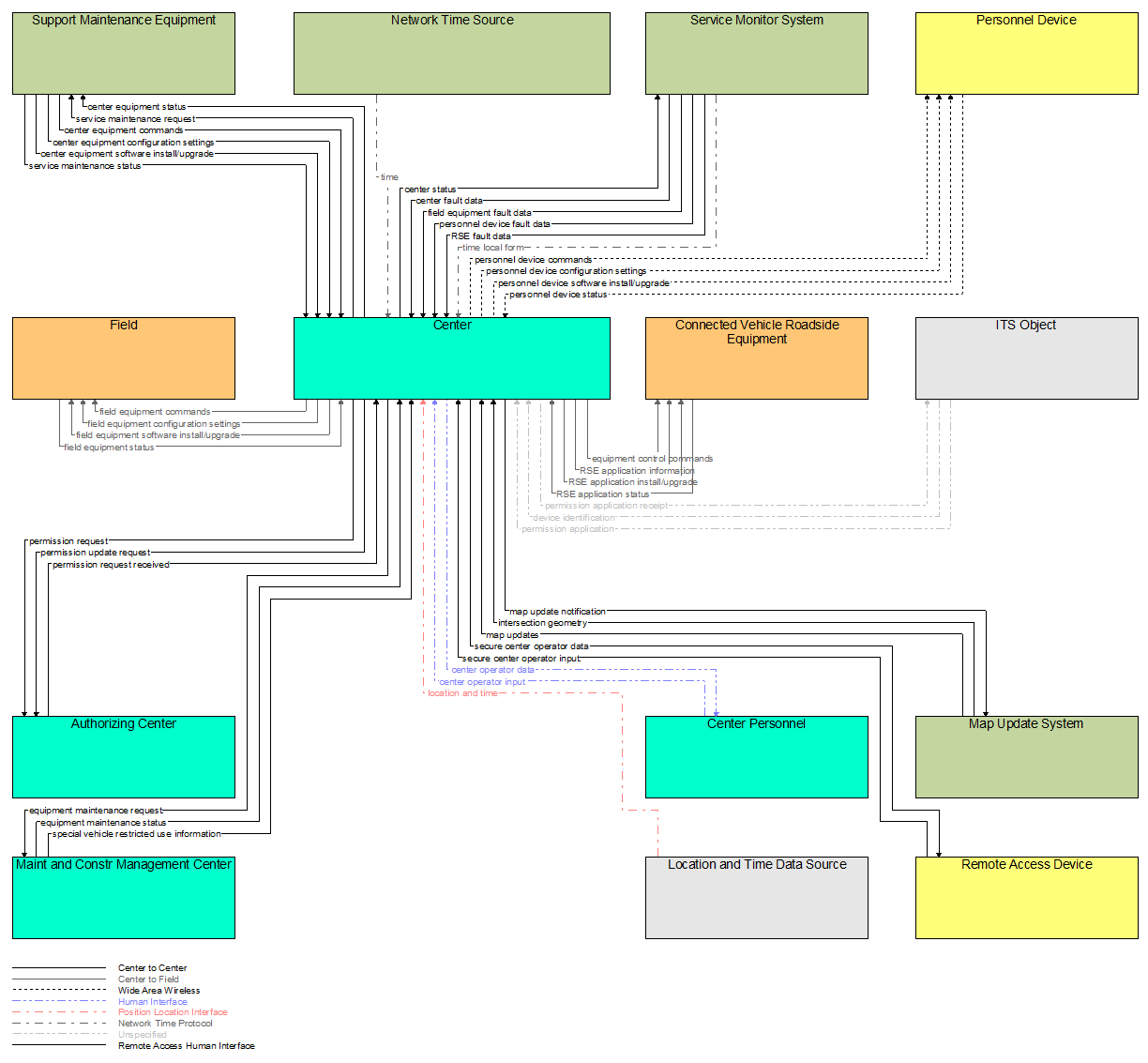

Interfaces Diagram

Interfaces diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
